Chapter 5
177

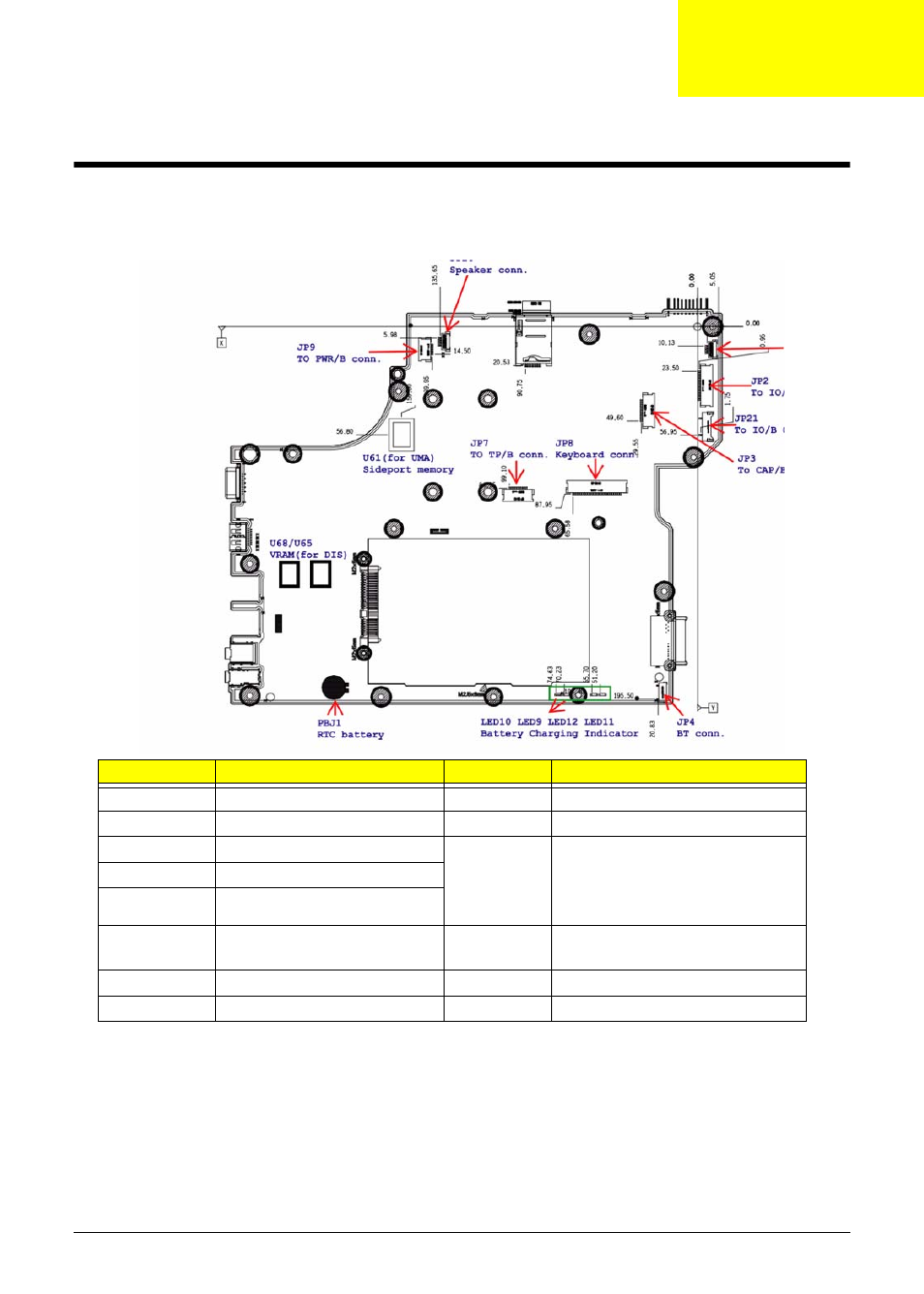

Jumper and Connector Locations
Top View
ITEM
DESCRIPTION
ITEM
DESCRIPTION
JP2
Connect to IO/B (FFC)
U61
Side-port memory (for UMA)
JP3
Connect to CAP/B (FFC)
U65 / U68
VRAM (for DIS)
JP4
Connect to Bluetooth (Cable)
LED9
LED10
LED11
LED12
Battery Charging Indicator
LED10 / LED12 AMB
LED9 / LED11?Blue
JP7
Connect to Touch pad (FFC)
JP8
Connect to Keyboard
JP9
Connect to Power BTN board
(FFC)
JP21
Connect to IO/B (Cable)
JP19
Connect to Digital MIC
PBJ1
RTC battery
JP20
Connect to speaker
Chapter 5
