Acer 5538 User Manual
Page 77
67
Chapter 3
4.

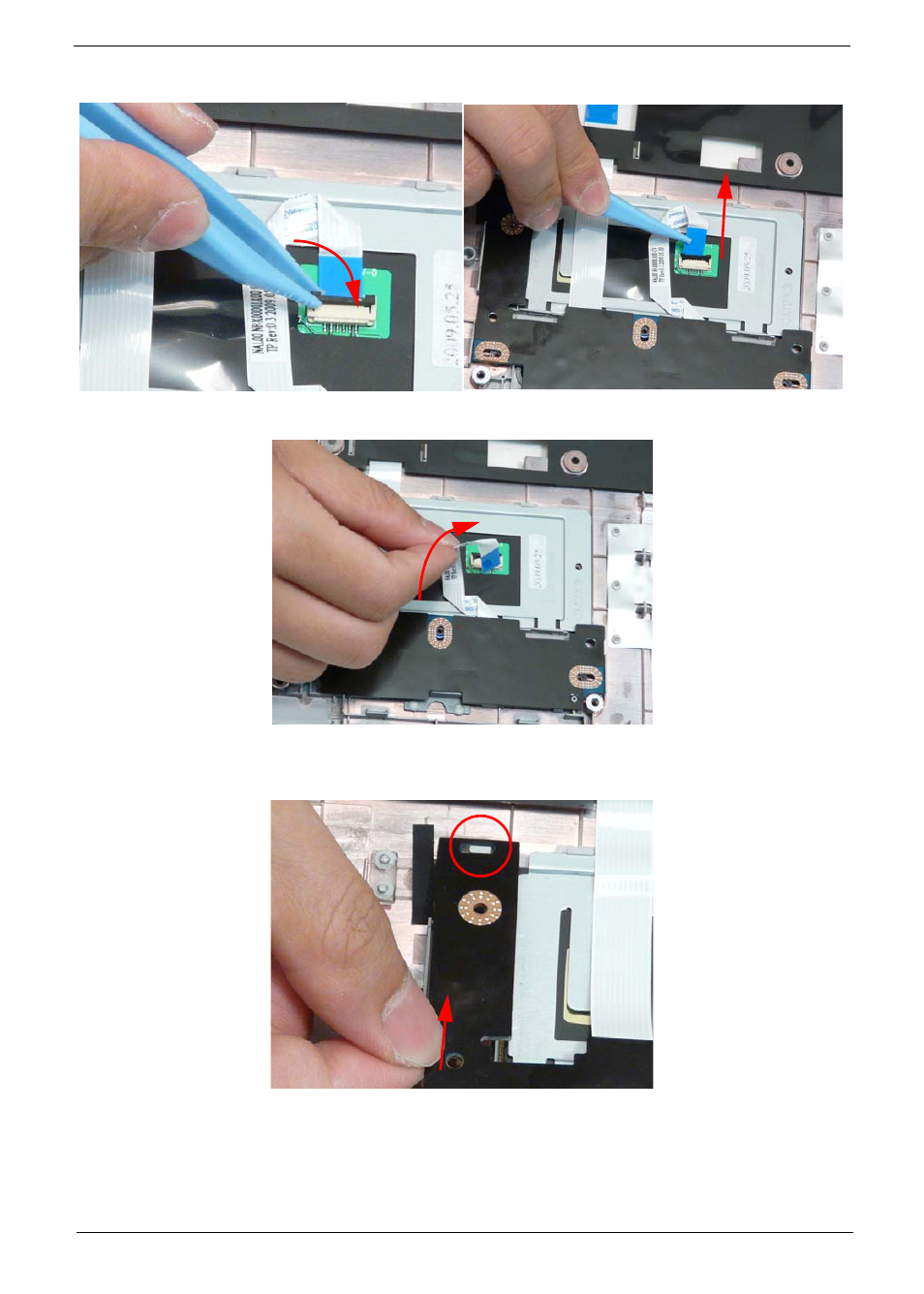

Lift the securing latch and disconnect the single FFC connecting the Button Board to the Touchpad.
5.
Peel back the two FFCs to release the adhesive.
IMPORTANT: Ensure that the FFCs are disconnected before attempting to remove the Button Board.
6.
Slide the Button Board out from under the securing tab in the Upper Cover as shown.
