Sagemcom_SM61
3. Add Location
Locations identify logical and/or physical locations where SIP entities reside. Only one
Location was configured at each site for compliance testing.

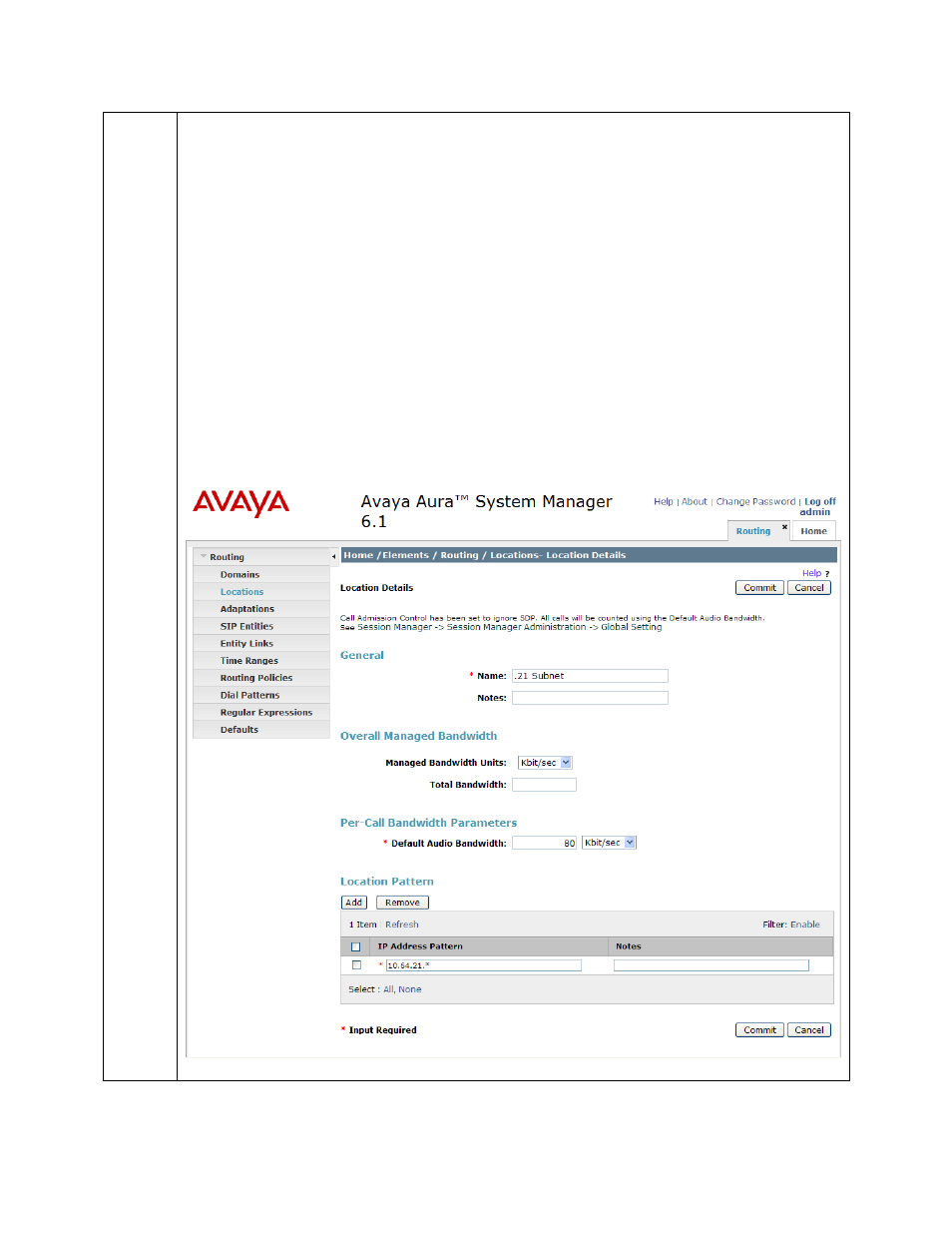

Navigate to RoutingLocations and click the New button (not shown) to add the
Location.
Under General:
 Name: a descriptive name
 Notes: optional descriptive text
Under Location Pattern, click the Add button to add a new line:
 IP Address Pattern: 10.64.21.*
 Notes: optional descriptive text
Click Commit to save the configuration.
