Mini-GASS User Manual | Original Instructions
PERMA PURE LLC
Mini-GASS™ User’s Manual
Doc. #212: Revision: 00A
Page 22 of 32
10. Connect free end of turnbuckle to anchor point at middle back of system (refer to Figure
14).
11. Attach with stainless clevis pin.
12. Snap keeper wire into place.
13. Adjust turnbuckle by turning it out to increase length until union fitting is
straight.
Turnbuckle is used only to relieve torsional load from union fitting.
14. Tighten union fitting with a wrench.
15. Install insulation between flange and back of Mini-GASS.
Plumbing
1. Connect blowback air line to blow back inlet port on the Mini-GASS.

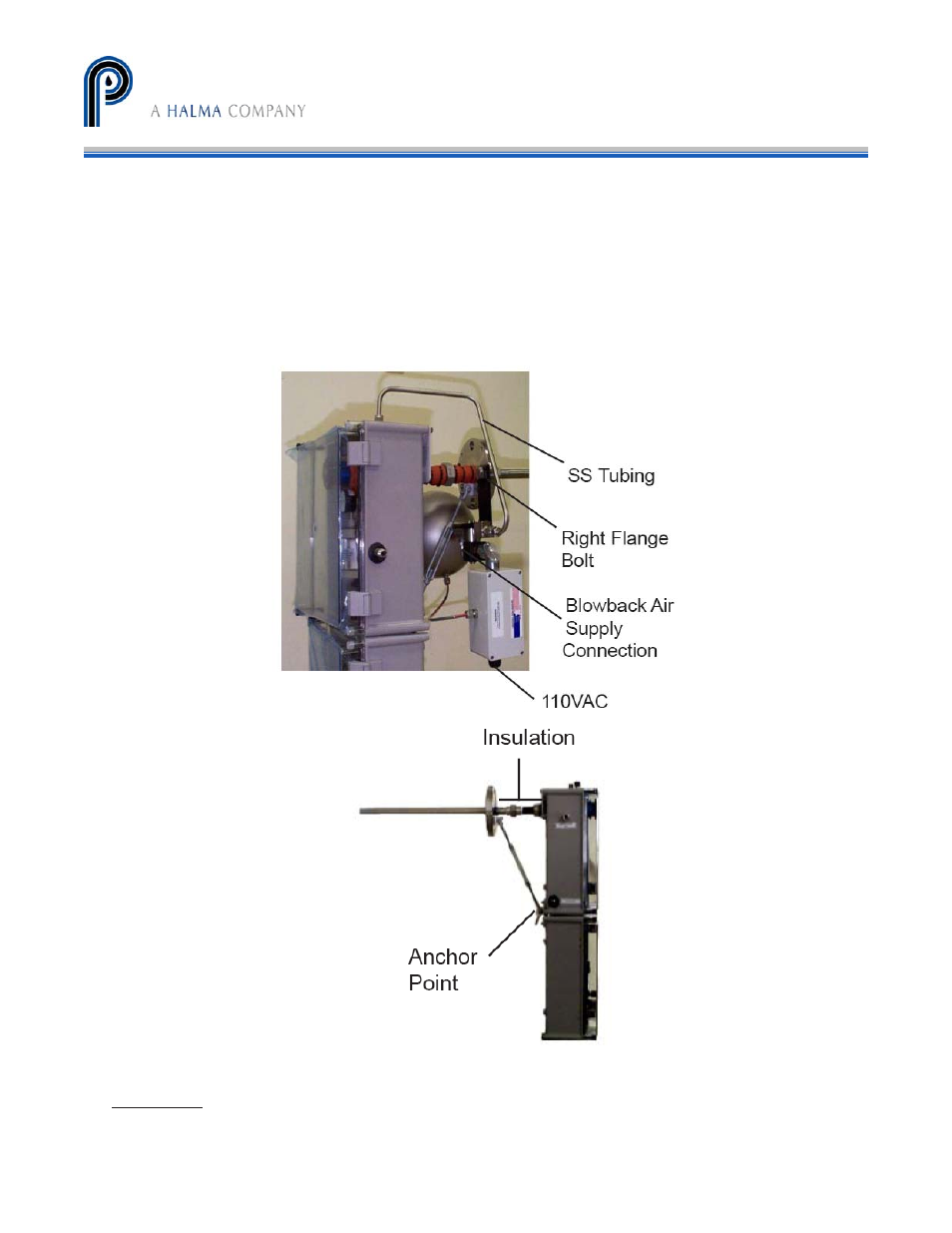

Figure 13
Figure 14
