Nitek TS510M User Manual
Page 3

Troubleshooting
Video inverted or rolling and unstable.
• Reverse the wires of the twisted pair at either
the transmitter or receiver.
No video out at the receiver.
• Check to make sure that there is video in at
the transmitter.
• Make sure that the pair of wires you are using
is not open or shorted between the transmit
and receive points.
• Check power to the receiver. The receiver must
be powered with the supplied wall pack.
Ghost image at the receiver
• Bridge tap or "T" tap on the twisted pair video
line. Remove tap.
Power Requirements
Power In - Screw Terminals
24-28 VAC 300mA 50/60 Hz
Class 2 SELV

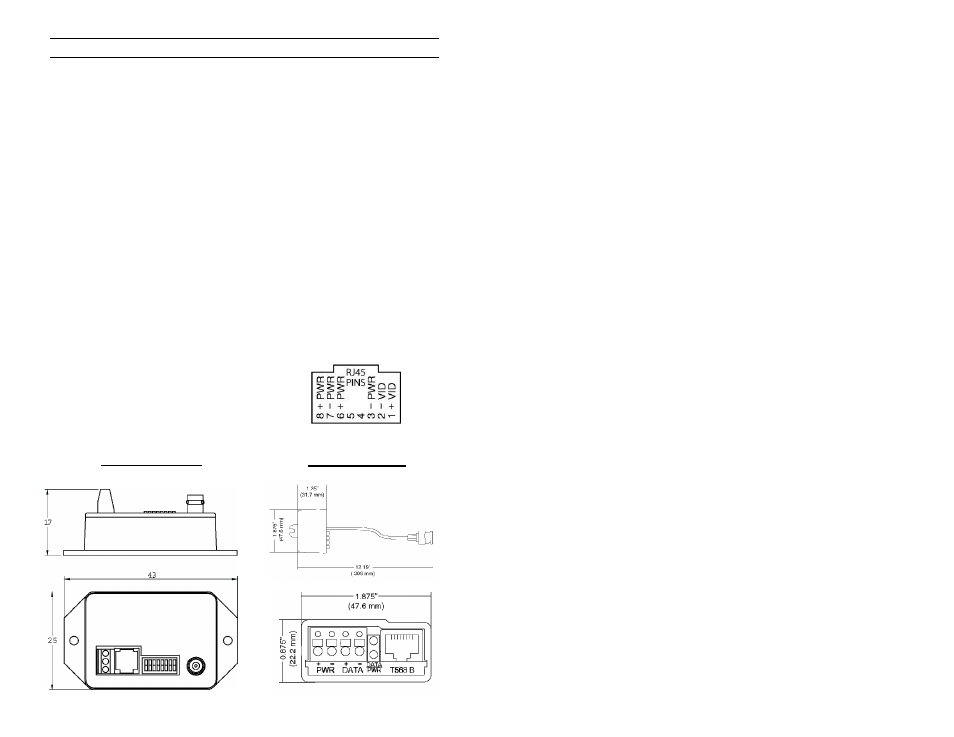

Power Out - RJ45
24-28 VAC 250mA 50/60 Hz
TR510M
VB43ATF
