Troubleshooting
Video inverted or rolling and unstable.
• Reverse the wires of the twisted pair at either
the transmitter or receiver.
No video out at the receiver.
• Check to make sure that there is video in at
the transmitter end.
• Make sure that the pair of wires you are using
is not open or shorted between the transmit
and receiver points.
• Check the power to the receiver and transmitter,
they should be powered with the supplied wall
pack transformer.
Ghost image at the receiver.
• Bridge tap or "T" tap on the twisted pair video
line. Remove tap.
For additional help with problems please call NITEK Techni-
cal Assistance
Problem
Fix/Cause
Problem
Fix/Cause
Problem
Fix/Cause

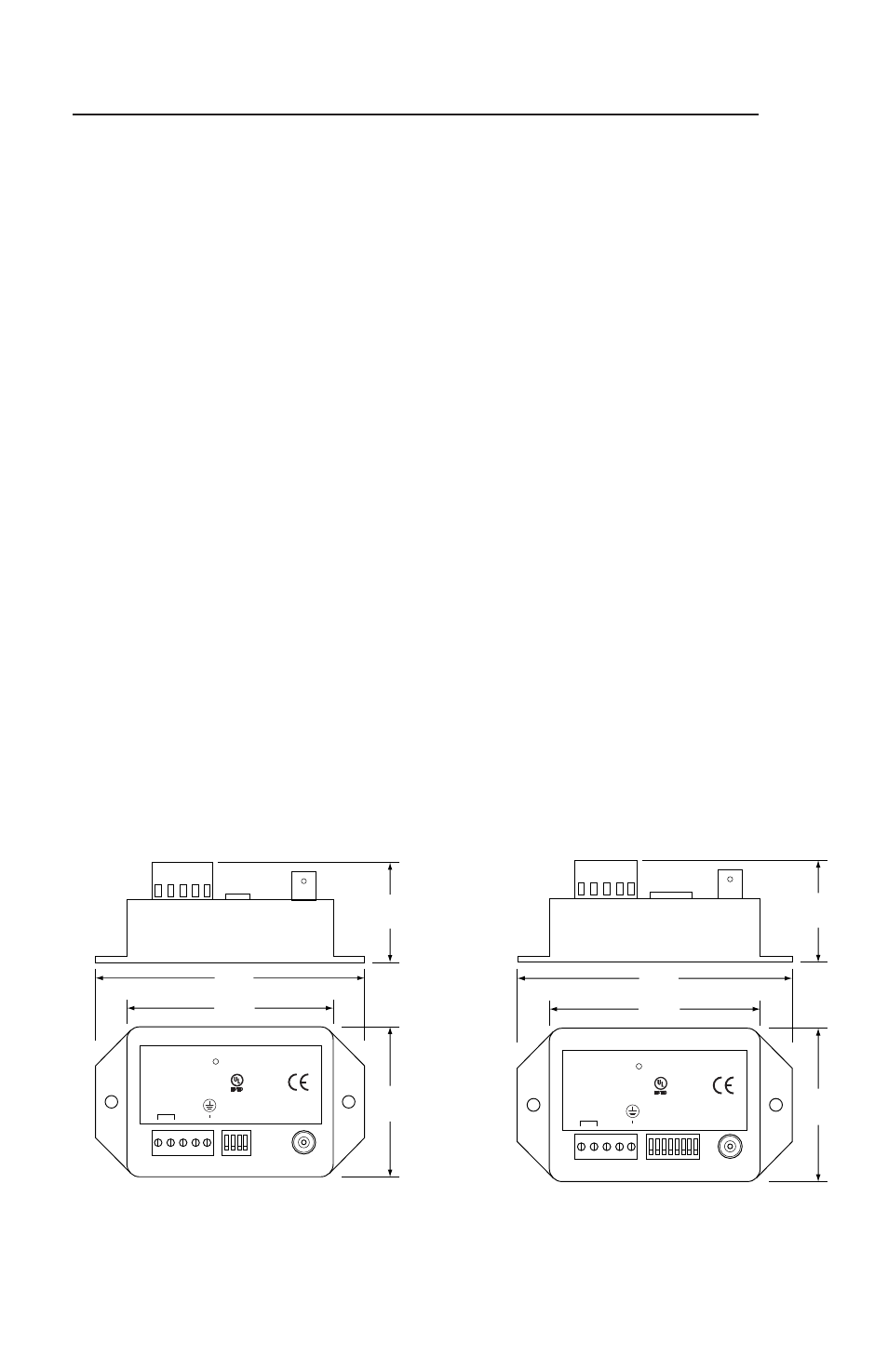

4.30"
(109)
3.30"
(84)
2.40"
(61)
1.60"
(41)
VIDEO
OUT
NITEK
R
Model TR560
WWW.NITEK.NET
800-528-4343
12-24 A
C
\DC
100mA 50\60 Hz Class 2 only -
WIRE P
A
IR
+
WIRE P
AIR
RECEIVER
COMMERCIAL
CCTV PRODUCT
21UP
E240043
4.30"
(109)
3.30"
(84)
2.40"
(61)
1.60"
(41)
VIDEO
IN
NITEK
R
Model TT560
TRANSMITTER
WWW.NITEK.NET
800-528-4343
12-24 A
C
\DC
300mA 50\60 Hz Class 2 only -
WIRE P
A
IR
+
WIRE P
A
IR
COMMERCIAL
CCTV PRODUCT
21UP
E240043
Power Requirements 12 to 24 AC\DC
300mA max 100mA typ.
50\60 Hz, Class 2
Power Requirements 12 to 24 AC\DC
100mA 50\60 Hz
50\60 Hz, Class 2 Transmitter Receiver
