Frequently Asked Questions
Q- Can I connect the camera coax to video distribution equipment?
A- NO! Do not connect the F-Connector coax of the camera or Decoder to other video equipment! Doing so could
damage this product and/or the other attached devices! The Decoder ouputs DC voltage on the coax that other
equipment may not be prepared to handle. Each camera and Decoder pair needs a dedicated point-to-point circuit;
nothing else can share the coax. Also, the camera itself will not work properly with RF splitters, diplexers, and amplifiers.
The RCA Video Out jack of the Decoder can connect to composite video equipment such as monitors, TV’s, DVR’s, and
modulators.
Q- How can I see the camera on my TV without using an expensive security monitor?
A- The composite video signal from the PoC Decoder can be plugged directly into one television’s RCA Video Input jack and
viewed when that TV is switched to the proper input. Another option is to feed the Decoder signal into a modulator. A
modulator, such as NetMedia’s MM70, changes the video to a UHF or Cable channel and allows the signal to be
distributed to all your TV’s along with the existing antenna/cable/satellite service.
Q- Is there some way I can get One Wire Video™ over coax with other cameras?
A- Yes, the NetMedia PoC Video Encoder and Decoder can be purchased as a set, NM-POCSET, for use with popular 12V DC
cameras. The Encoder will accept the camera’s composite video signal and output about 150mA of regulated 12V DC
power.
Q- Why do the light areas of the picture look washed out?
A- The camera’s automatic electronic shutter (AES) must decide how to adjust itself according to the brightness of the
scene. When a picture has both light and shadow, the camera adjusts itself based on the percentage of each area in the
image. If it decides to favor the shadow portions then the light areas will be overexposed. In addition, cameras that are
designed for low light or infrared sensitivity typically favor the shadow areas and look more washed out under bright
conditions. Try adjusting the image field so that more light areas are visible. The Varifocal Lens also has a manual Iris
Adjustment; try closing it in increments, as the AES compensates, until a satisfactory image is achieved. It is normal
though, that as the lighting conditions change throughout the day, the camera’s automatic re-adjustments will impact
the picture’s dark and light areas.
Q- Why are the shadow areas too dark to see much detail?
A- This is like the washed out question above except opposite. In this case, the camera’s automatic electronic shutter (AES)
is favoring the light areas at the expense of the shadow areas. Try adjusting the image field so that more shadow areas
are visible. The Varifocal Lens also has a manual Iris Adjustment; try opening it in increments, as the AES compensates,
until a satisfactory image is achieved. It is normal though, that as the lighting conditions change throughout the day, the
camera’s automatic re-adjustments will impact the picture’s dark and light areas. Also keep in mind that the camera still
does need some kind of light in order to see. If necessary, add some lighting to the dark area to improve visibility.
Q- Will the camera work at distances beyond 100 feet?
A- Though we do not recommend or support doing so, some people find that the camera functions satisfactorily at
distances greater than 100 feet. At that range, the video quality degrades as the cable length increases but until the
power gives out over the next few hundred feet, it may still be acceptable for your application.
Q- What do the switches inside the “D” Day/Night camera adjust?
A- The Day/Night camera comes with a switch connected inside to adjust some of its
performance characteristics. The switch functions are listed in Figure 5. The default
settings (All OFF) are usually best but adjusting these may be helpful under certain
conditions. The AGC switch will force the camera to remain in color mode instead
of changing into black and white mode when the light level drops below its normal
crossover threshold.
Q- What is the difference between Power over Coax and modulated devices?
A- Both are similar because they enable One Wire Video™ using a single coax. They differ though in their type of video
output signal. Our modulated devices, such as the RM70 (which supplies remote power for popu;ar 12VDC cameras),
output a TV channel that requires a TV tuner to view. This is handy for distributing the signal to all the TV’s with the same
coax, splitters, and amplifiers that transmit the local antenna, cable, or satellite signal. It is more inconvenient though, for
using the signal with equipment that does not have a tuner such as a security DVR or Quad screen display. Our PoC
modules and cameras output a composite video signal that is directly compatible with such equipment. Whole house
distribution can still be accomplished with PoC by modulating the output of the DVR or Quad.
NM-POCV
C
AM

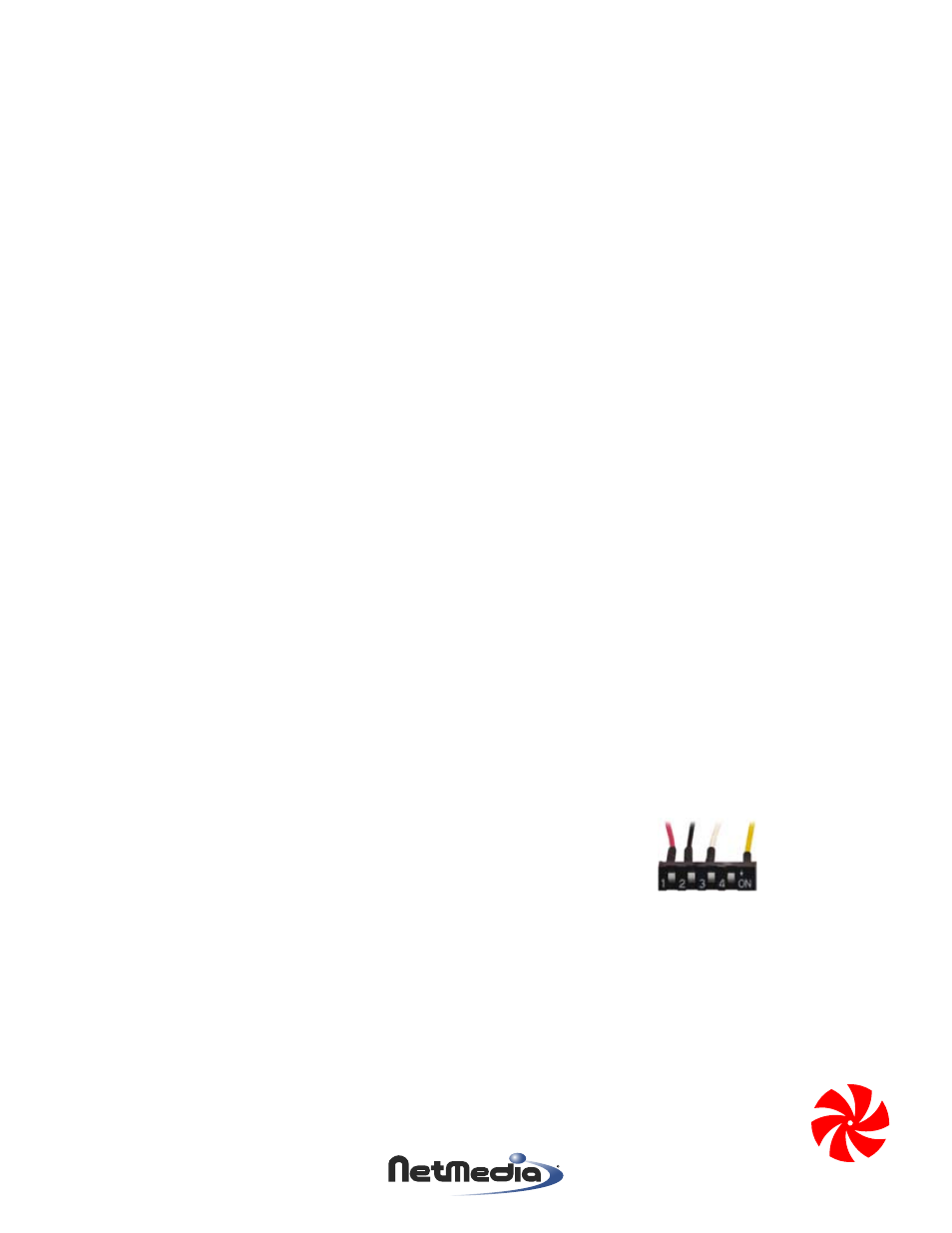

Figure 4 - Day/Night Camera Switches
Switch 1: BLC
Switch 2: AES
Switch 3: AGC
Switch 4: Unused
Default: All OFF
