NetMedia POCJBOX-DB - Manual

NM-POCJBO
X
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: [email protected] www.netmedia.com
Power over Coax Camera
NM-POCJBOX-DB
In-Wall Junction Box Mounted
MAN-POCJBOX REV1005A

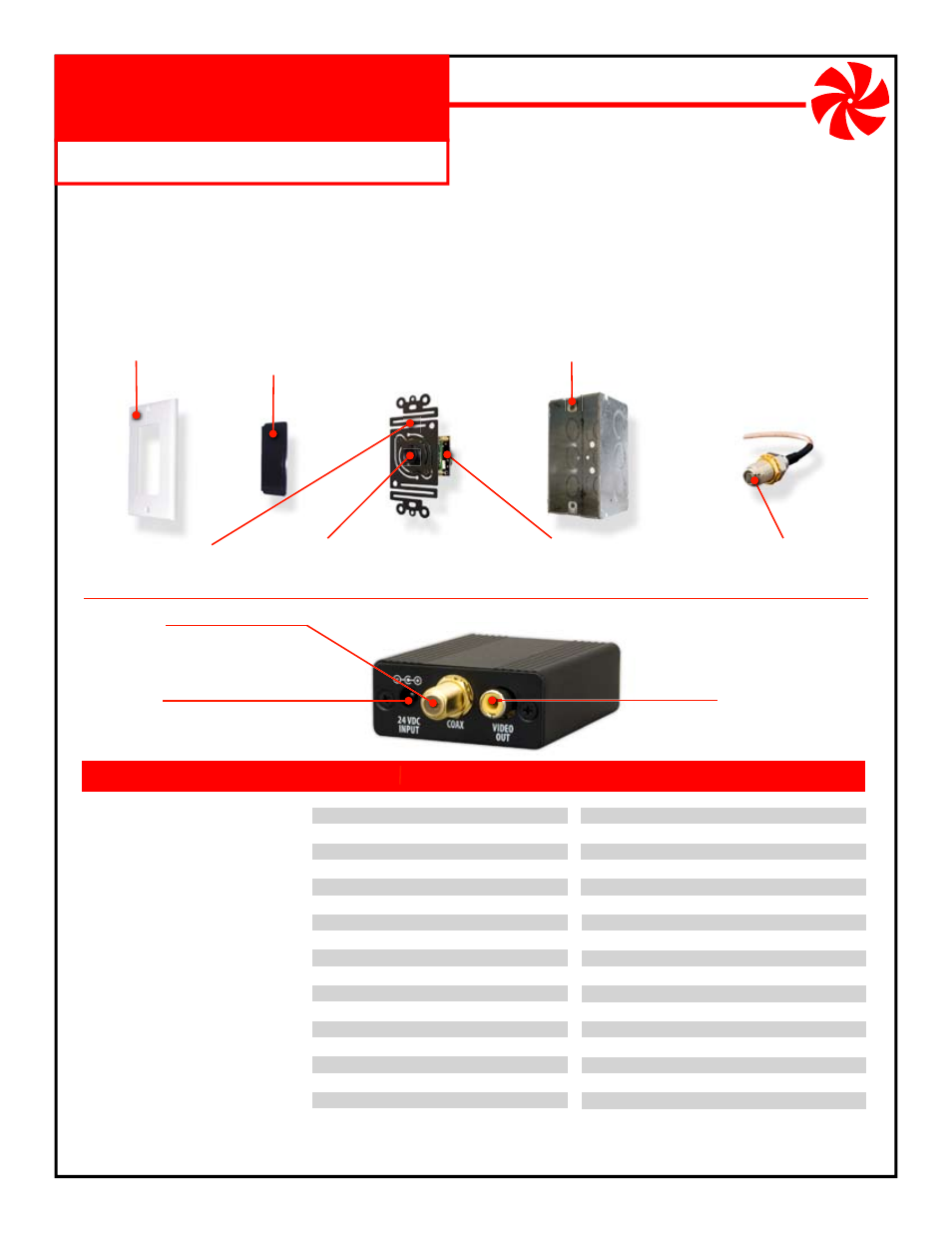

Camera Bracket
Bends to adjust angle of view.
Cover Plate
Not Included
Lens Cover
Dark or Clear cover snaps
into Cover Plate.
Camera Assembly
Camera, Bracket,
PoC Video Encoder.
Junction Box
Not Included
Camera Lens
Factory set - rotates in either
direction to adjust focus.
F-Connector
Female F-Connector transmits both
power and video across coax.
PoC Video Encoder
Exchanges power and video with Decoder
for One Wire Video™ on coax cable.
Product Includes:
1. Camera Assembly (Camera, Camera Bracket, PoC Video Encoder, F-Connector Cable).
2. NetMedia PoC Video Decoder and 24V DC 200mA Power Transformer.
3. Mounting Screws and RCA Video Cable.
4. Two Lens Cover Inserts (Dark Lens Cover, Clear Lens Cover).
Day/Night Color
Power Input
Connects to 24V DC wall
transformer (included)
and AC outlet.
F-Connector
Connects to camera
F-Connector with a single
coax such as RG6.
RCA Video Out
Connects to viewing
device such as monitor,
DVR, TV, or modulator.
PoC Video Decoder (Included)
This general purpose surveillance camera utilizes a built-in NetMedia Power over Coax (PoC) Video Encoder and external
PoC Video Decoder to exchange power and video across a single coax cable, such as RG6. There is no need to run multiple
cables to the camera location! It mounts in a typical single gang junction (light switch) box and is viewed with a security
monitor or television. To view the camera on a single standard television, use the TV’s composite RCA Video Input jack.
PoC Video Encoder built into camera
Includes PoC Video Decoder module
One Wire Video™ Installation
Uses one coax cable to camera
Excellent image quality
Internally routed cables
Mounts to standard electrical fixtures
Mounts in walls and ceilings
Works in low light conditions
Adjustable camera angles
Tamper resistant wiring
Includes power supply
One year limited warranty
FEATURES
Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Camera/Decoder Cable Connector:
Camera/Decoder Cable Type:
Camera/Decoder Cable Distance Range:
Camera/Decoder Video Signal:
PoC Decoder Video Output:
PoC Decoder Video Output Connector:
PoC Decoder Power Input:
PoC Decoder Power Connector:
PoC Decoder Size:
PoC Decoder Weight:
Assembly Size:
Assembly Weight:
Female F-Connector
Coax: RG6 quad shield recommended
Up to 100’
Proprietary
Composite
Female RCA
24V DC, 200mA
5.5mm OD, 2.1mm ID, center positive
3.2” long, 2.2” wide, 0.9” thick
3 oz.
4“ high, 1.9” wide, 1.5“ deep
3.5 oz.
(subject to change without notice)
SPECIFICATIONS
3.6mm
1/3” CCD
540 lines
72˚ Horizontal
0.1 Lux
Yes
