Resident Screen: Elevator Reference Table
The Elevator Reference Table controls two basic functions; which elevator or Elevators will be called
down to the lobby (or ground) level when a visitor is granted access, and how long the resident floor
control relay will be enabled.
• Elevator Reference Number - Each resident of building tenant is assigned an Elevator
Reference Number. This tells the system which elevator will be called when visitor access is
granted. Note: If a ground floor detect is not provided from the elevator control panel,
the Lobby Hall Up Call feature cannot be used!
• The elevator reference number also identifies which elevators will respond to the floor button
control for visitor access and how long the residents floor button will be enabled. If ground
floor detect is not provided, floor button timing starts when resident dials “9” on
phone.

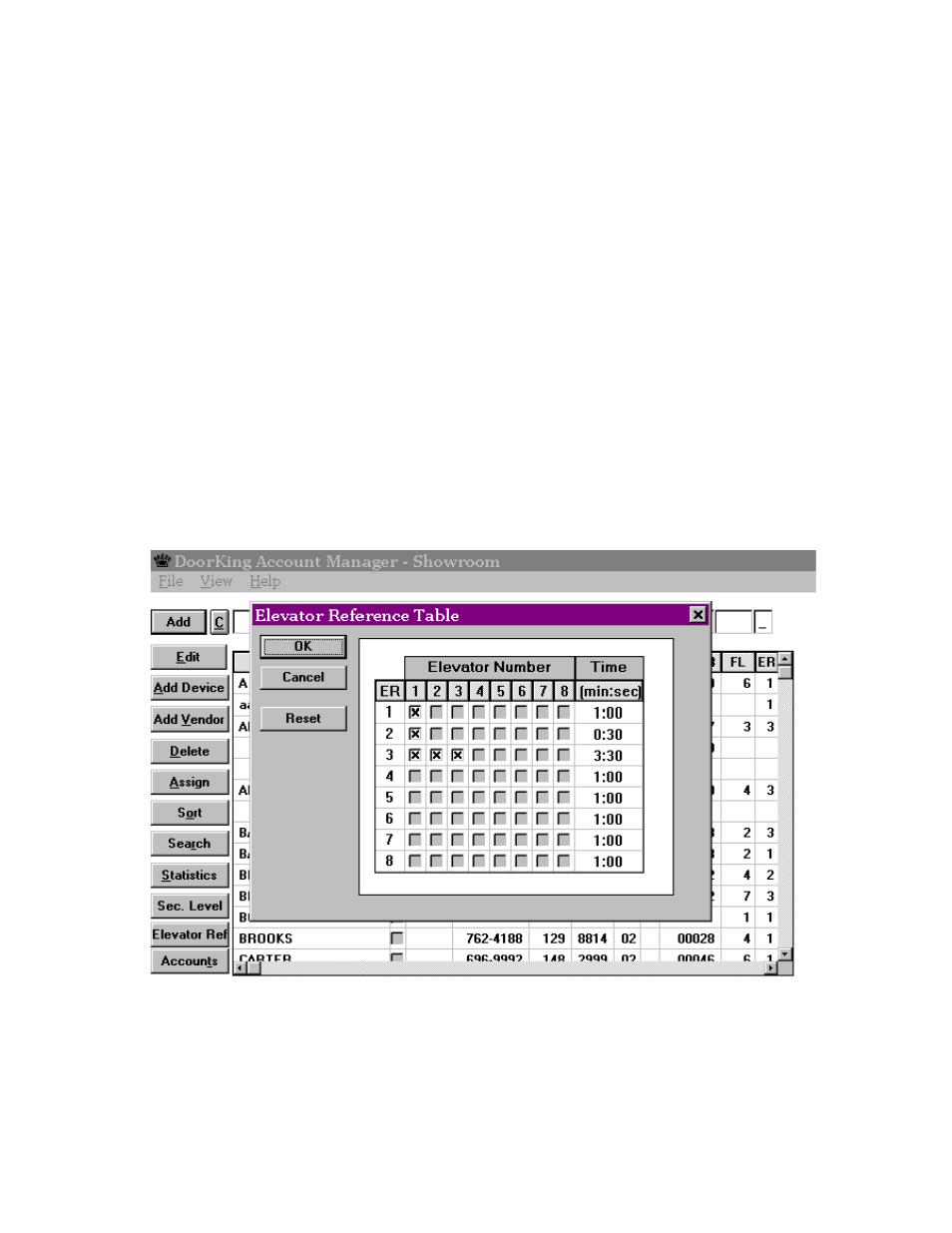

• The example below shows that:
o Elevator Reference 1: Calls elevator 1 to the lobby. When the elevator reaches the
lobby, the resident floor button will be active for 1 minute.
o Elevator Reference 2: Calls elevator 1 to lobby, floor button is enabled for 30
seconds.
o Elevator Reference 3: Calls elevators 1, 2 & 3 to lobby. Floor buttons enabled in
each elevator for 3:30 seconds.
