System Information: Relay Screen
2348-065-E-10-11 Page 29

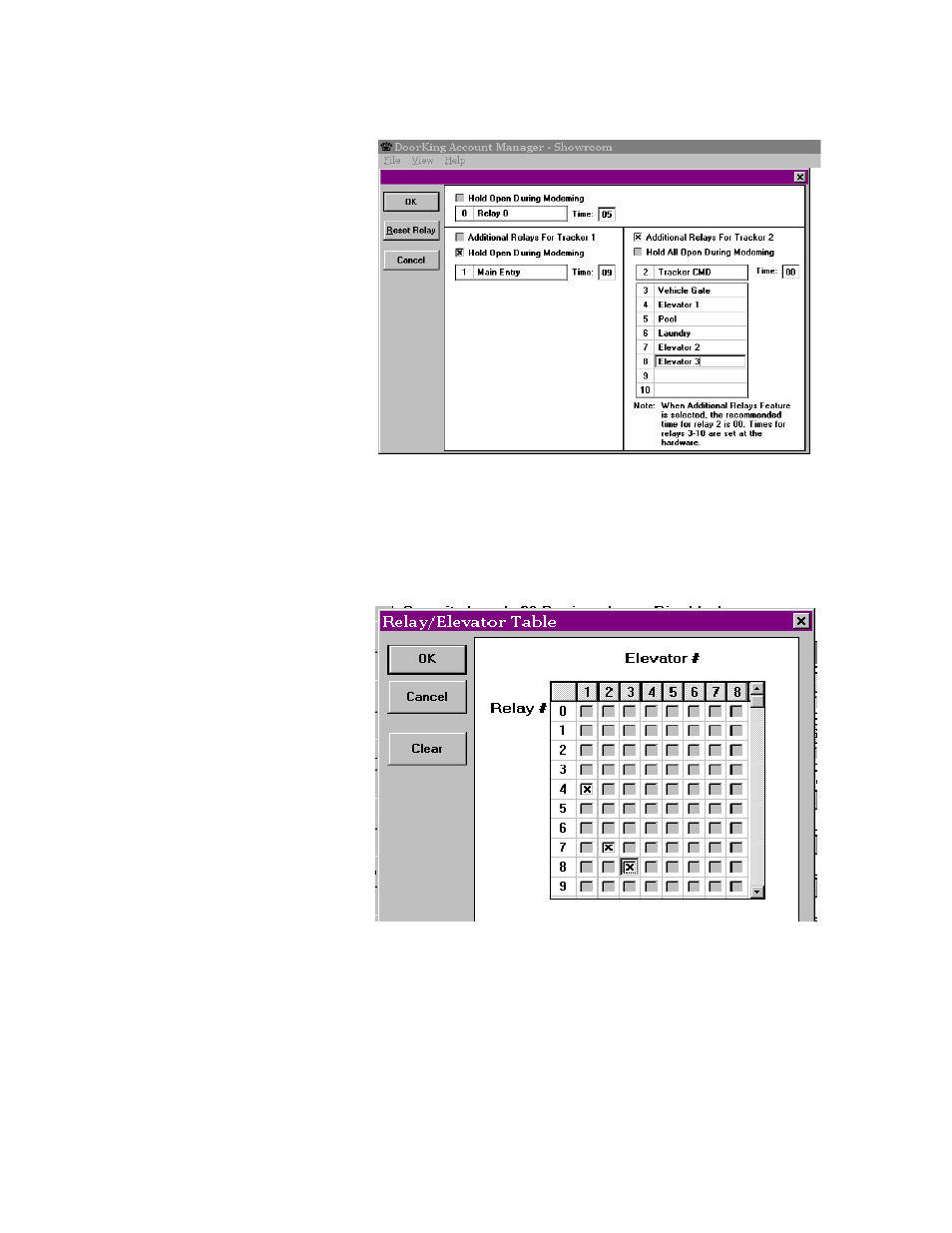

Relay Screen - In the Relay
Screen, you should label
which “system relays” refer to
the reader devices inside the
elevator car(s).
This is for labeling and
reference only and does not
affect the function or
operation of the system.
You MUST program the
relay address at the
relay/elevator screen.
System Information: Security Level – Relay / Elevator
Relay/Elevator screen - This
addresses which system relay
is inside each elevator car.
This tells the system that
activation of the card reader
at system relay #4 is a person
inside elevator #1. The
system will then look at the
security level programming
and sends the appropriate
commands up to the elevator
control board.
This example shows that:
Relay #4 is in Elevator #1
Relay #7 is in Elevator #2
Relay #8 is in Elevator #3
