DoorKing 2348 Elevator Control - Manual (Page 13)

2.2 Small Housing
DOORKING, INC., INGLEWOOD, CA 90301
Title:
Date: Rev. Dwg. No.

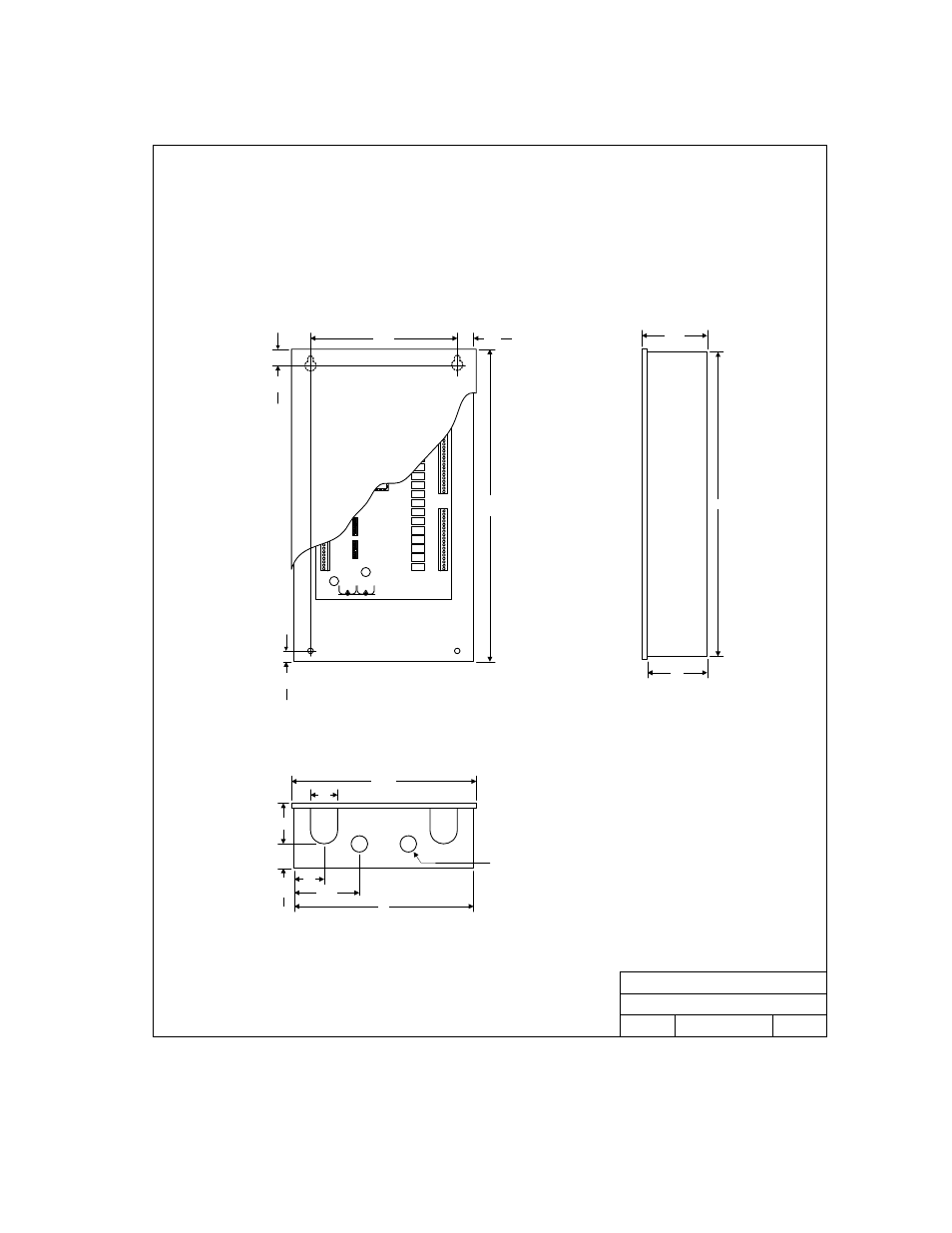

TWO BOARD ENCLOSURE
Dual Enclosure for 2348-010 Board
P/N 2348-080
A 10/03 M2348-065-3
2.5
2.0
12.375
2.0
4.625
12
.875 DIA 2 PL
1.
625
21
.25
10.25 .875
.875
.67
5
4.125
21
4.0
Figure 3
2348-065-E-10-11 Page 13
