Diamond Products CC6560XLT - Manual (Page 6)

2
1
3
4 5 7
12
14
13
14
25
21
20 18
6
8
9
10
11
12
22
23
24
17 16 15
19

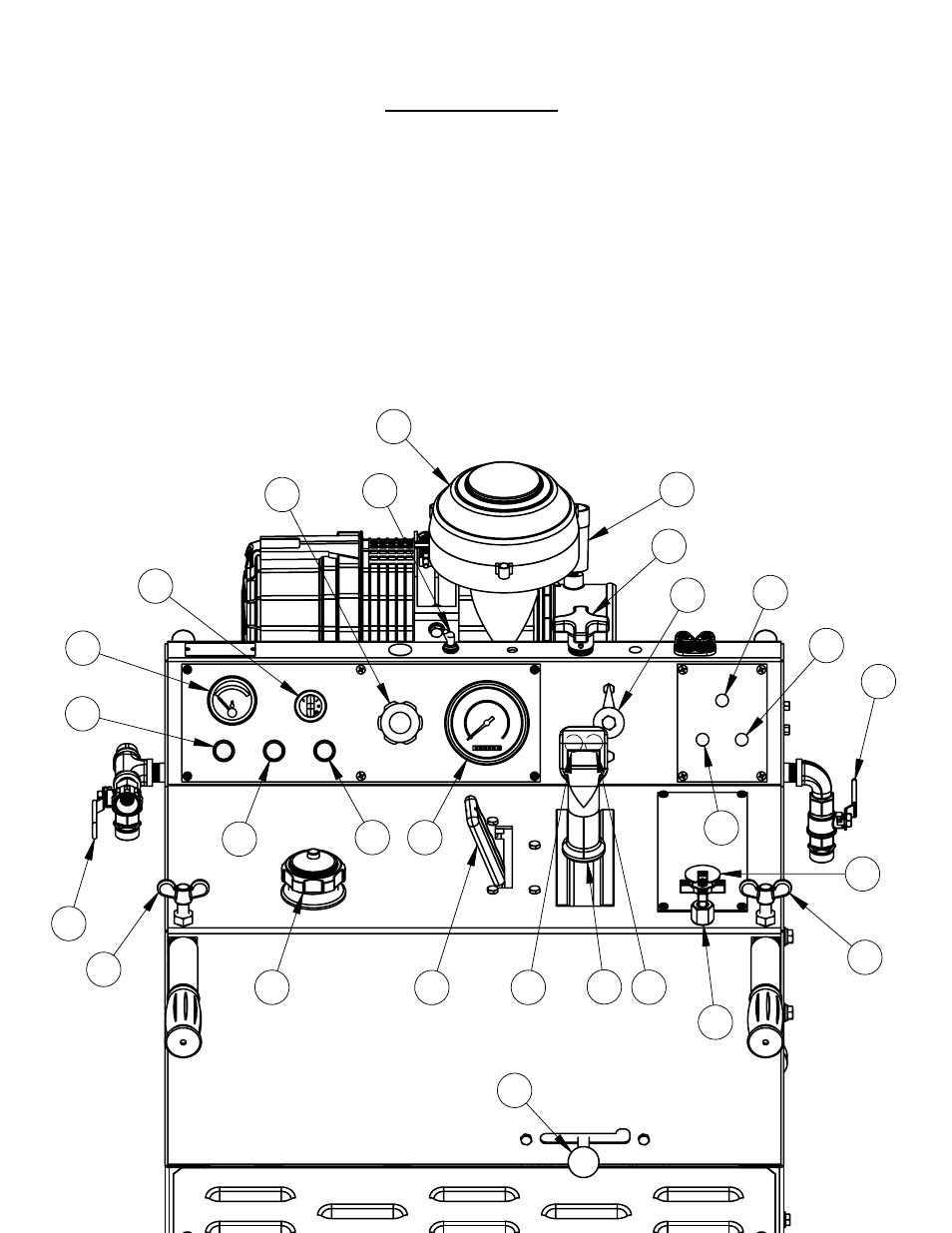

Controls Legend
1 Engine Temperature Gauge 14 Handle Lock Knobs
2 Ignition Switch 15 Speed Control Lever
3 Alternator Light 16 Lower Pushbutton
4 Oil Temperature Light 17 Raise Pushbutton
5 Oil Pressure Light 18 Fuel Tank Cap
6 Vernier Throttle Control 19 Blade Speed Switch
7 Blade Tachometer / Hour Meter 20 Transmission Engagement Lever *
8 Pre-Cleaner 21 Transmission Engagement Lever **
9 Air Cleaner Restriction Indicator 22 Water Safety Switch (Optional)
10 Depth Stop Knob 23 Spotlight Switch (Optional)
11 Cutting Depth Indicator 24 Water Pump Switch (Optional)
12 Water Valve 25 Lowering Speed Metering Valve (Optional)
13 Emergency Stop Button * For Eaton Transmission Only
** Optional for Sundstrand Transmission Only
1 Engine Temperature Gauge 14 Handle Lock Knobs
2 Ignition Switch 15 Speed Control Lever
3 Alternator Light 16 Lower Pushbutton
4 Oil Temperature Light 17 Raise Pushbutton
5 Oil Pressure Light 18 Fuel Tank Cap
6 Vernier Throttle Control 19 Blade Speed Switch
7 Blade Tachometer / Hour Meter 20 Transmission Engagement Lever *
8 Pre-Cleaner 21 Transmission Engagement Lever **
9 Air Cleaner Restriction Indicator 22 Water Safety Switch (Optional)
10 Depth Stop Knob 23 Spotlight Switch (Optional)
11 Cutting Depth Indicator 24 Water Pump Switch (Optional)
12 Water Valve 25 Lowering Speed Metering Valve (Optional)
13 Emergency Stop Button * For Eaton Transmission Only
** Optional for Sundstrand Transmission Only
6
