Blade shaft assembly (rear) – Diamond Products CC6560XLT User Manual
Page 39
8
17
3
2
10
3
9
11
12
13
2
9
13
11
22
12
13
23
2
16
21
7
21
19
18
14
12
15
8
1
6
5
4
20
12
22
17
24
22
11
22
10

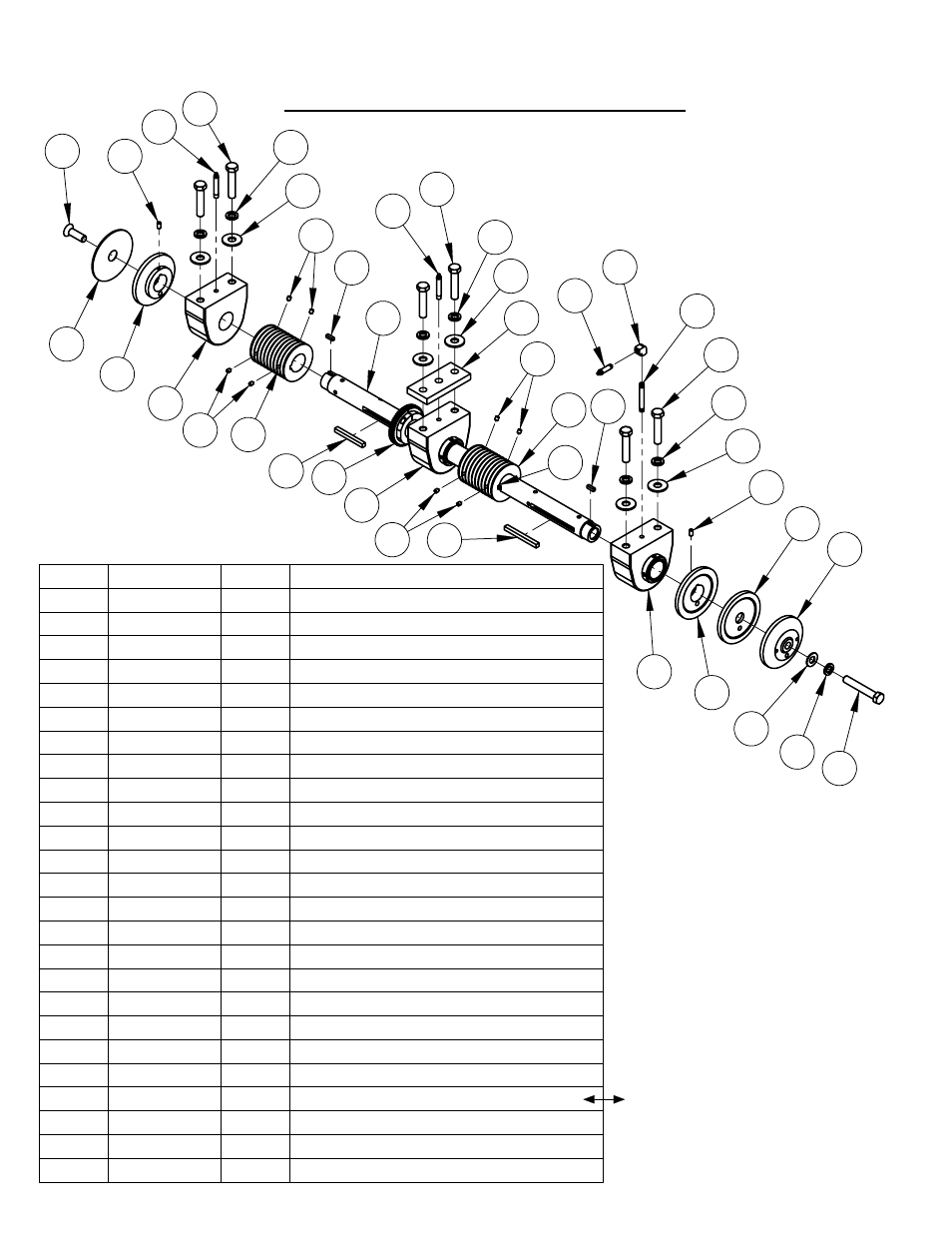

Blade Shaft Assembly #6010811* (Rear)
#6011139 for saws prior to May 2007
*Use #6010758 for saws prior to May 2007
ITEM
PART NO.
QTY.
DESCRIPTION
1
6010759
1
Blade Shaft
2
2500151
3
Blade Shaft Bearing, 1-3/4"
3
2900709
2
Grease Fitting, 1/8" NPT x 2-5/8"
4
2900264
1
Grease Fitting, 1/8" NPT x 1-3/4"
5
3200154
1
Pipe Elbow, 1/8" NPT Female
6
3200179
1
Pipe Nipple, 1/8" NPT x 3"
7
4645006
1
Key, 3/8" Sq. x 4"
8
6012065
2
Key, 3/8" Sq. x 3-1/2"
9
6010040
2
Key, 1/4" Sq. x 13/16"
10
2900418
2
Set Screw, Soc. Hd., 5/16-18 x 5/8"
11
2900721
6
Flat Washer, 5/8" USS Hardened
12
2900113
7
Lock Washer, 5/8" Split
13
2900195
6
Cap Screw, Hex Hd., 5/8-11 x 3"
14
2900002
1
Flat Washer, 5/8" SAE
15
2900146
1
Cap Screw, Hex Hd., 5/8-11 x 4"
16
2900712
1
Cap Screw, Flat Hd., 5/8-11 x 2" LH
17
6010255
2
Inner Flange 5"
18
6010760B
1
Blade Spacer, 5" O.D.
19
6047907
1
Outer Flange 5" with Pin
2900197
1
Dowel Pin, 3/8" Dia. x 2"
20
6010765B
1
Flange Cover, 5" O.D.
21
6010814
2
Sheave, 3.65" x 10 Groove x 1-3/4" Bore
22
2900142
8
Set Screw, Soc. Hd., 5/16-18 x 3/8"
23
6010230
1
Shaft Tach Gear, Split
24
6010035
1
Blade Shaft Bearing Spacer 5/8"
