Belt tensioner assembly – Diamond Products CC6560XLT User Manual

Page 37

background image

ITEM

PART NO.

QTY.

DESCRIPTION

1

6010755

1

Tensioner Plate

2

2900475

2

Tap Bolt, Hex Hd., 3/4-10 x 5"

3

2900003

4

Flat Washer, 3/4" SAE

4

2900041

4

Hex Nut, 3/4-10

5

6010756

2

Tensioner Coupling Nut

6

2900175

4

Cap Screw, Soc. Hd., 3/8-16 x 1"

7

2800170

1

Magnetic Sensor w/Jam Nut

8

2900113

1

Lock Washer, 5/8" Split

9

2500008

2

Set Collar, 5/8" with Set Screw

10

2500489

1

Plug, 1" Hole

3

5

3

1

6

2

9

8

7

3

9

4

4

10

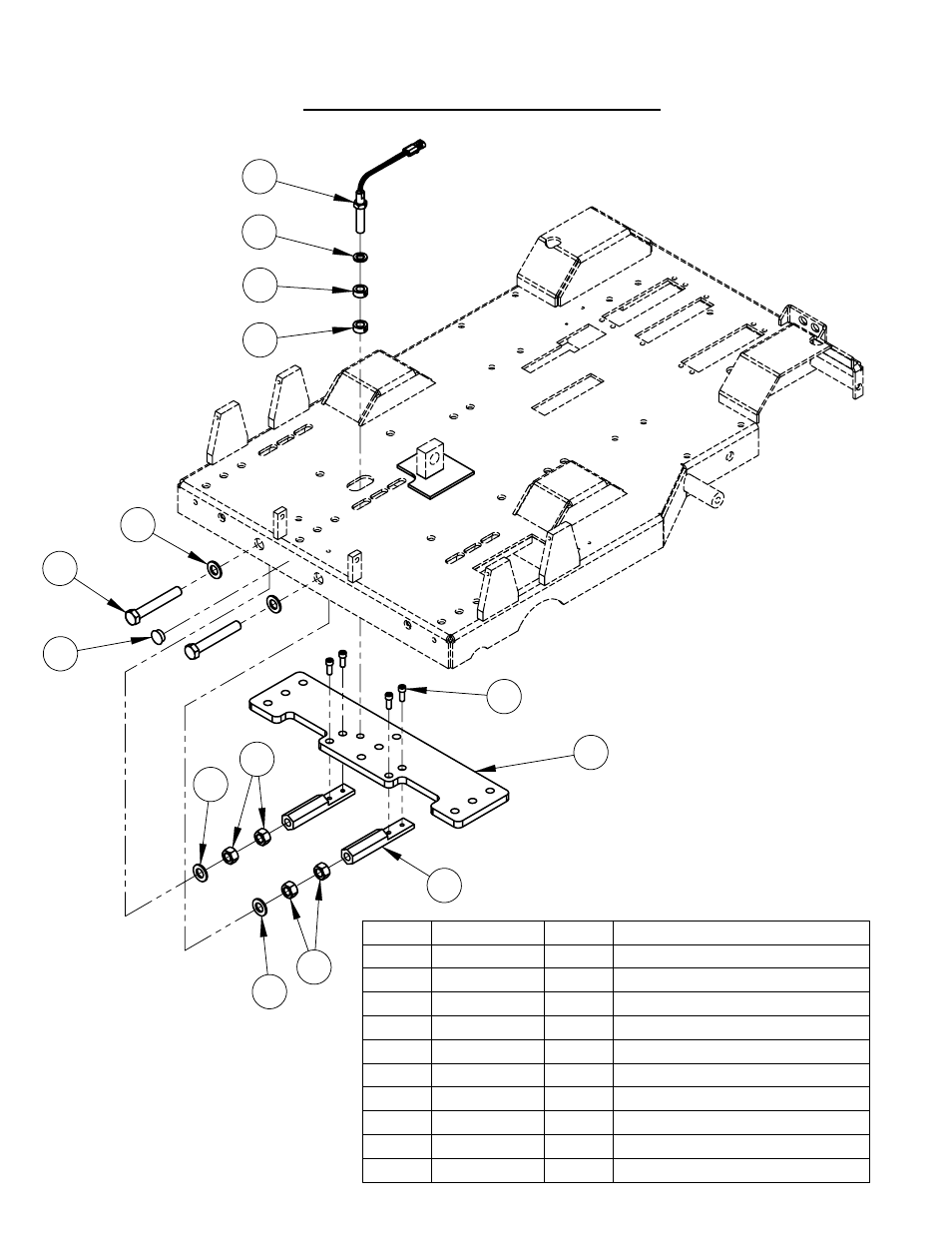

Belt Tensioner Assembly #6010754
