Diamond Products CC6560XLT - Manual (Page 42)

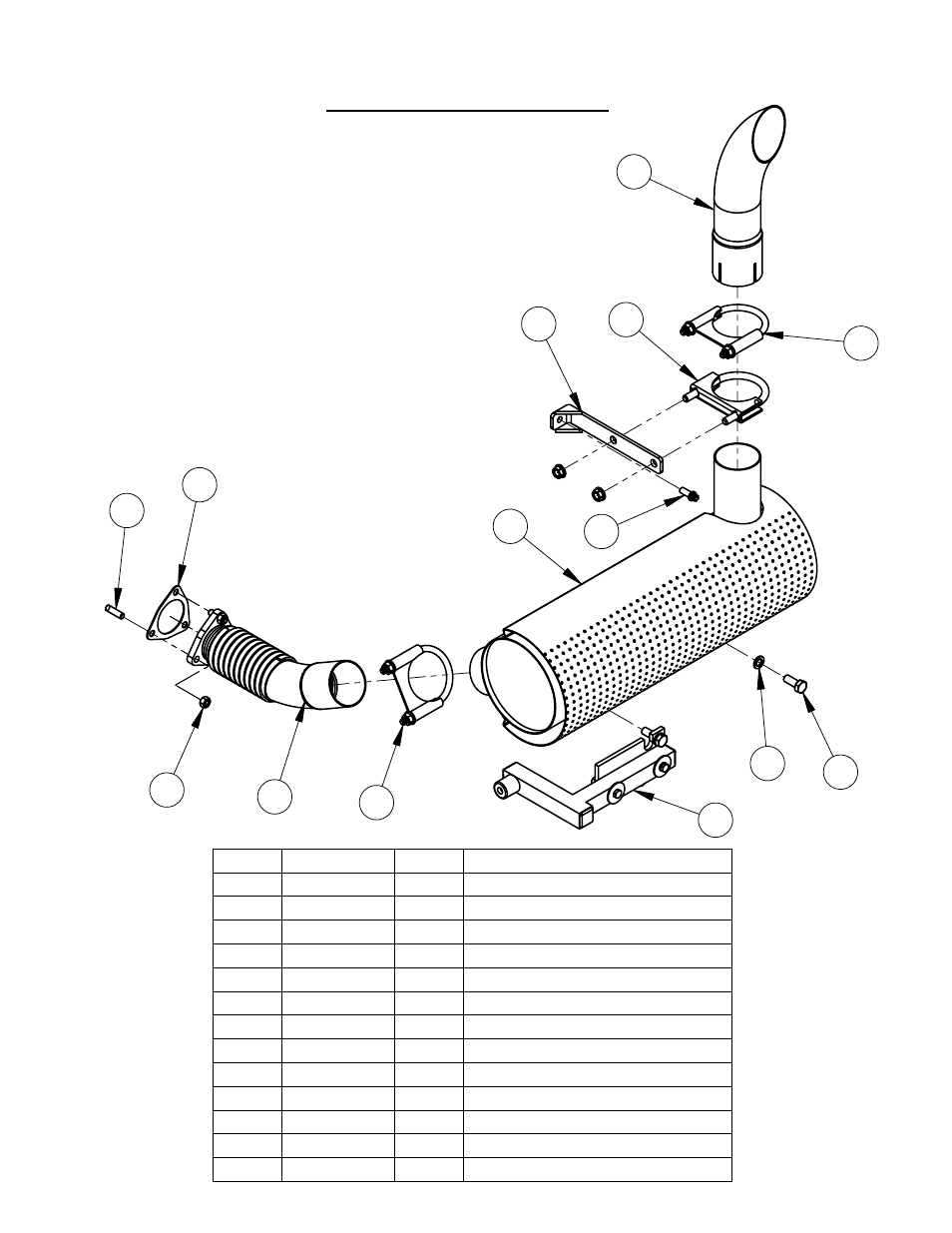

Muffler Assembly #6010728
11
12
7
10
9
1
3
4
5
6
2
6
8
13
ITEM PART NO. QTY. DESCRIPTION
1 2702785 1 Muffler
2 2702786 1 Exhaust Pipe
3 2701618 1 Gasket, Turbo Outlet
4 2702549 3 Stud, M8 x 30mm
5 2900343 3 Hex Nut, M8
6 2700609 2 Muffler Clamp 2-1/2"
7 2501775 1 Tail Pipe, 2-1/2" I.D. x 12"
8 6010691 1 Muffler Stabilizer Bar
9 2702619 1 Screw, Torx Head, M8 x 20mm
10 2501786 1 Muffler Clamp, 2-1/2"
11 2900321 1 Lock Washer, M10 Split
12 2900333 1 Cap Screw, Hex Hd., M10 x 25mm
13 6010696 1 Pointer Stop Assembly
