Instrument panel assembly – Diamond Products CC6560XLT User Manual

Page 10

background image

ITEM

PART NO.

QTY.

DESCRIPTION

1

6013093

1

Gauge Panel

2

2703192

1

Temperature Gauge, Pricol

3

2703194

1

Ignition Switch & Key

2703195

1

Ignition Key Only, Double Cut

4

2700785

1

Alternator Light

5

2700787

1

Oil Temperature Light

6

2700786

1

Oil Pressure Light

7

2500376

1

Vernier Throttle Cable

8

6010416

1

Tach/Hour Meter (VDO) Calibrated

2800611

2

Light Socket

2800612

2

Light Bulb, Wedge Base

9

6010019

1

Hydraulic Pump Cover Plate

10

2800461

1

Emergency Stop Button

11

2800462

1

Contact Block, N.C.

12

2900021

8

Tap Screw, Pan Hd., #10-24 x 3/8"

13

6010098

1

Switch Plate

14

2500204

3

Plug, 1/2" Hole

15

2900445

6

Tap Screw, Flat Hd., #10-24 x 1/2"

16

2500463

1

Plug, 3/4" Hole

17

6010101

2

Edge Trim

18

2800388

1

Fuse Panel, 6 Circuit

19

2800389

6

Fuse, 10 Amp Red ATO/ATC

20

2900913

2

Cap Screw, Soc. Hd., #10-24 x 1"

21

2900017

2

Lock Nut, #10-24 Nylon

22

2800308

1

Toggle Switch On/On

23

2800063

1

Switch Boot

22

21

11

12

18

19

20

4

5

6

12

7

15

3

2

1

16

17

15

9

13

10

10

23

14

8

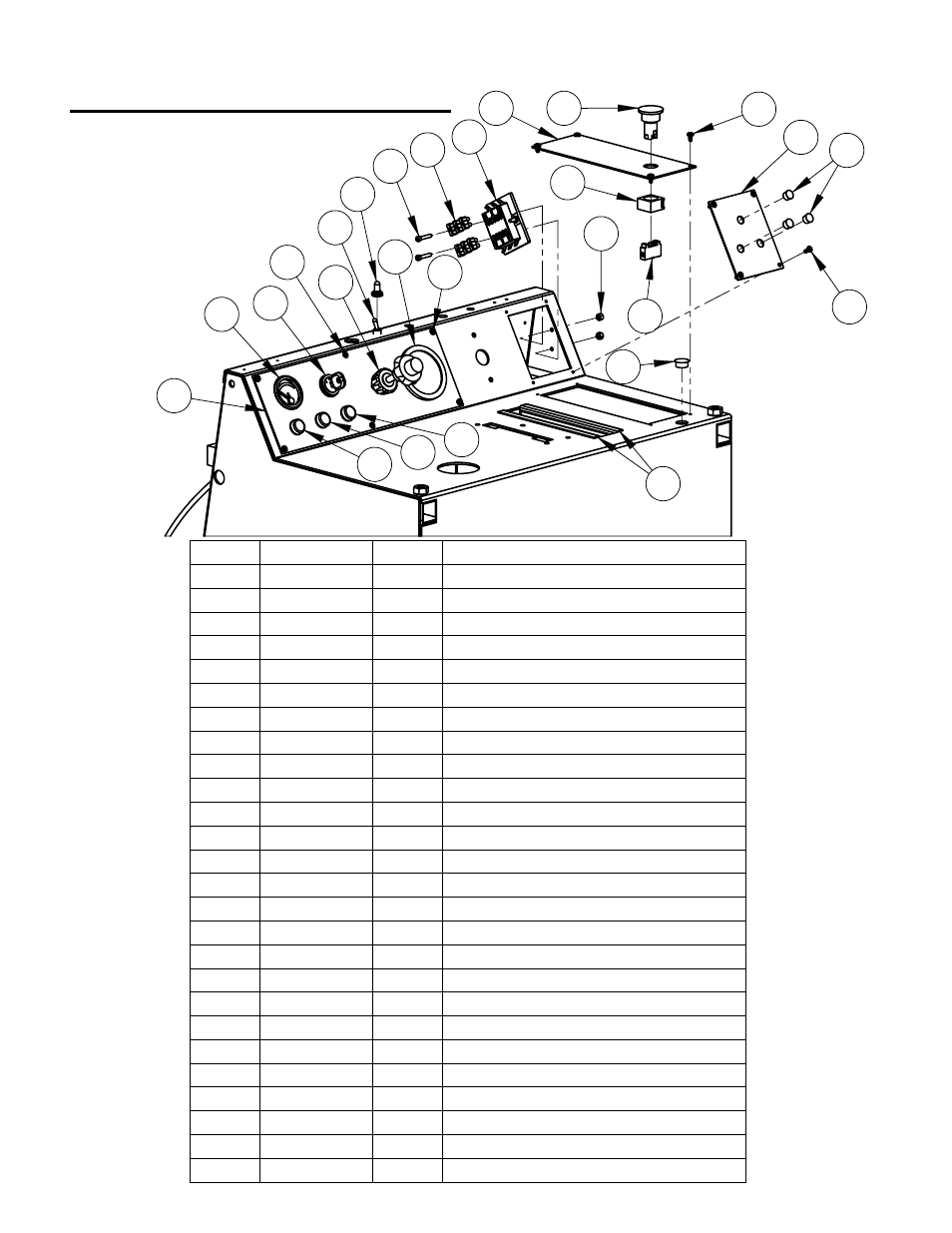

Instrument Panel Assembly #6010762

(Includes Items #1, #8 - #23)
