Diamond Products CC6560XLT - Manual (Page 15)

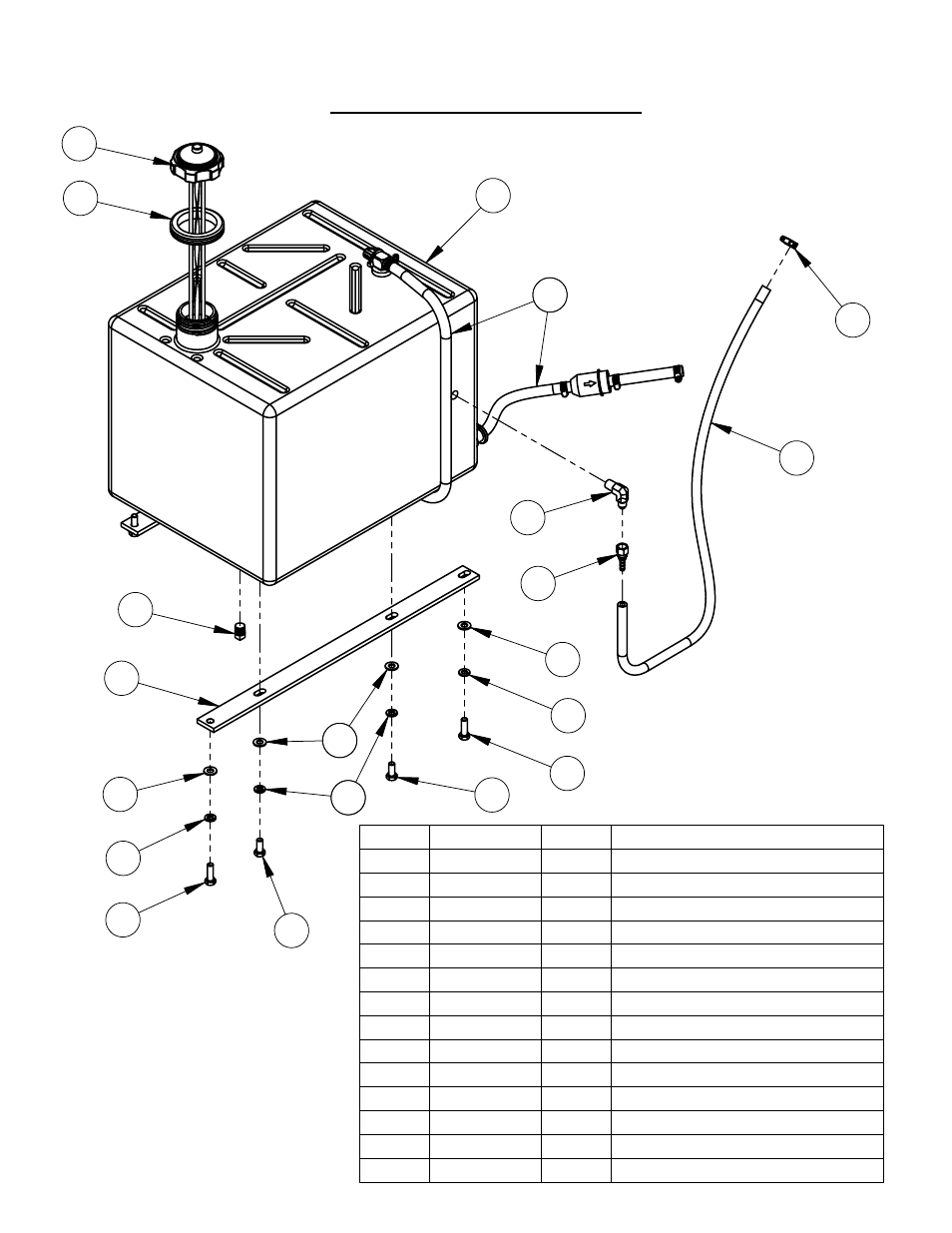

Fuel Tank Assembly #6010700
9
13
12
10
11
3
7
8
1
14
2
4
6
5
6
4
3
5
4
3 3
4
14
ITEM PART NO. QTY. DESCRIPTION
1 2501784 1 Fuel Tank
2 6010257 2 Fuel Tank Mount Bar
3 2900022 8 Flat Washer, 5/16" SAE
4 2900031 8 Lock Washer, 5/16" Split
5 2900019 4 Cap Screw, Hex Hd., 5/16-18 x 3/4"
6 2900138 4 Cap Screw, Hex Hd., 5/16-18 x 1"
7 3200206 1 Pipe Plug, 1/4" NPT
8 2500649 1 Fuel Tank Cap
9 2500205 1 Fuel Tank Grommet
10 3200057 1 Elbow, 1/4" M. Pipe to 1/4" M. JIC
11 3200091 1 Fitting, 1/4" F. JIC to 1/4" Push Lock
12 6010103 1 Fuel Return Hose, 1/4" I.D. x 32"
13 3200062 1 Hose Clamp #4
14 6010699 1 Fuel Supply Assembly
