Diamond Products CC6560XLS - Manual (Page 6)

2
1
3
4 5 7
12
14
13
14
24
20
19 18
6
8
9
10
11
12
21
22
23
17 16 15

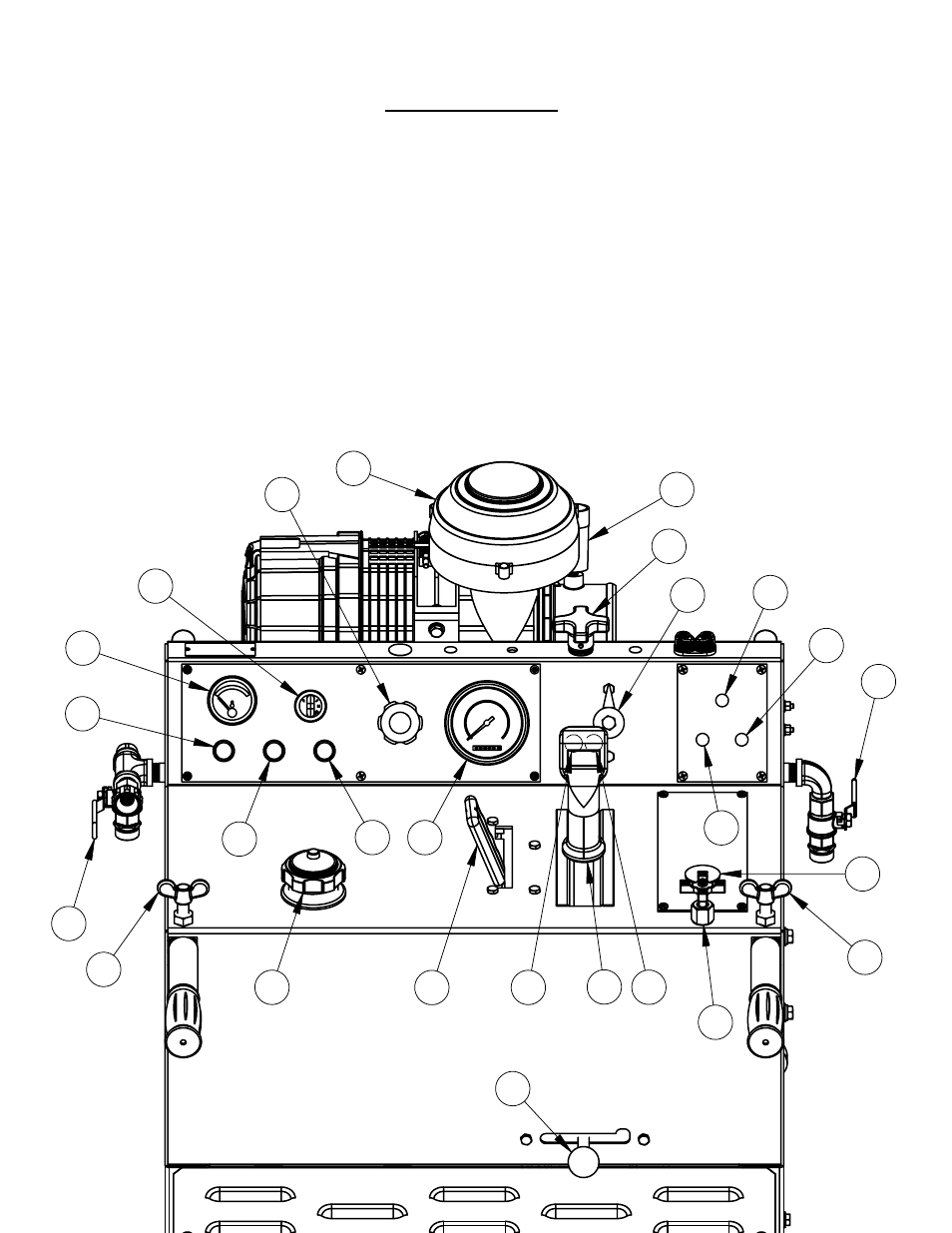

Controls Legend
1 Engine Temperature Gauge 14 Handle Lock Knobs
2 Ignition Switch 15 Speed Control Lever
3 Alternator Light 16 Lower Pushbutton
4 Oil Temperature Light 17 Raise Pushbutton
5 Oil Pressure Light 18 Fuel Tank Cap
6 Vernier Throttle Control 19 Transmission Engagement Lever *
7 Blade Tachometer / Hour Meter 20 Transmission Engagement Lever **
8 Pre-Cleaner 21 Water Safety Switch (Optional)
9 Air Cleaner Restriction Indicator 22 Spotlight Switch (Optional)
10 Depth Stop Knob 23 Water Pump Switch (Optional)
11 Cutting Depth Indicator 24 Lowering Speed Metering Valve (Optional)
12 Water Valve * For Eaton Transmission Only
13 Emergency Stop Button ** Optional for Sundstrand Transmission Only
1 Engine Temperature Gauge 14 Handle Lock Knobs
2 Ignition Switch 15 Speed Control Lever
3 Alternator Light 16 Lower Pushbutton
4 Oil Temperature Light 17 Raise Pushbutton
5 Oil Pressure Light 18 Fuel Tank Cap
6 Vernier Throttle Control 19 Transmission Engagement Lever *
7 Blade Tachometer / Hour Meter 20 Transmission Engagement Lever **
8 Pre-Cleaner 21 Water Safety Switch (Optional)
9 Air Cleaner Restriction Indicator 22 Spotlight Switch (Optional)
10 Depth Stop Knob 23 Water Pump Switch (Optional)
11 Cutting Depth Indicator 24 Lowering Speed Metering Valve (Optional)
12 Water Valve * For Eaton Transmission Only
13 Emergency Stop Button ** Optional for Sundstrand Transmission Only
6
