30" & 36" BLADE DRIVE
ITEM PART NO. QTY. DESCRIPTION
1 6013046 1 Sheave, 6" x 10 Groove w/Bushing
2500439 1 Sheave, 6" x 10 Groove QD Style
2500176 1 QD Bushing, SK x 1-3/4" w/Fasteners
2 2502042 1 Belt Set, 5/3VX560 - 5 Strand
3 2501781 1 V-Belt, AX42
20" & 26" BLADE DRIVE
ITEM PART NO. QTY. DESCRIPTION
1 6010545 1 Sheave, 4.5" x 10 Groove w/Bushing
2501381 1 Sheave, 4.5" x 10 Groove Taper Style
2501410 1 Taper Bushing, 1-3/4" w/Setscrews
2 2502041 1 Belt Set, 5/3VX530 - 5 Strand
3 2501781 1 V-Belt, AX42
14" BLADE DRIVE
ITEM PART NO. QTY. DESCRIPTION
1 6010658 1 Sheave, 4" x 10 Groove w/Bushing
2501380 1 Sheave, 4" x 10 Groove Taper Style
2501410 1 Taper Bushing, 1-3/4" w/Setscrews
2 2502041 1 Belt Set, 5/3VX530 - 5 Strand
3 2501781 1 V-Belt, AX42

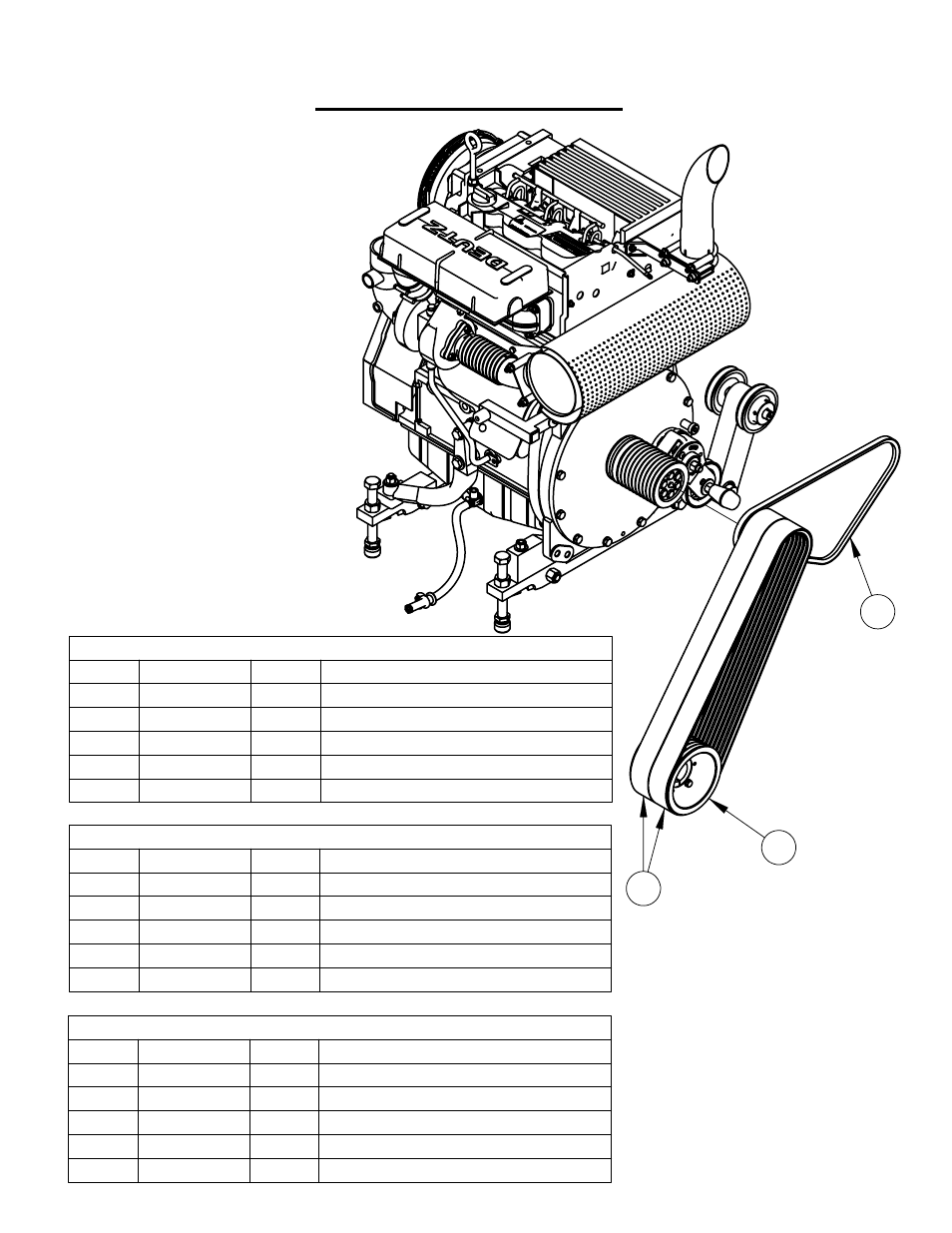

Belt Drive Assembly #6010733
1
