ITEM PART NO. QTY. DESCRIPTION
1 6010543 1 Blade Shaft
2 2500151 2 Blade Shaft Bearing, 1-3/4"
3 2900264 2 Grease Fitting, 1/8" NPT x 1-3/4"
4 4645006 1 Key, 3/8" Sq. x 4"
5 6010040 2 Key, 1/4" Sq. x 15/16"
6 2900418 2 Set Screw, Soc. Hd., 5/16-18 x 5/8"
7 2900002 6 Flat Washer, 5/8" SAE
8 2900113 6 Lock Washer, 5/8" Split
9 2900136 4 Cap Screw, Hex Hd., 5/8-11 x 2"
10 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
11 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
12 6010038 2 Inner Flange 6"
13 6010039 2 Outer Flange 6" with Pin
14 6010697 1 Shaft Tach Gear Assembly
12
6
11
8
7
13
3
5
7
8
9
14
1
2
5
4
3
9
7
8
2
13
7
8
10
12
6

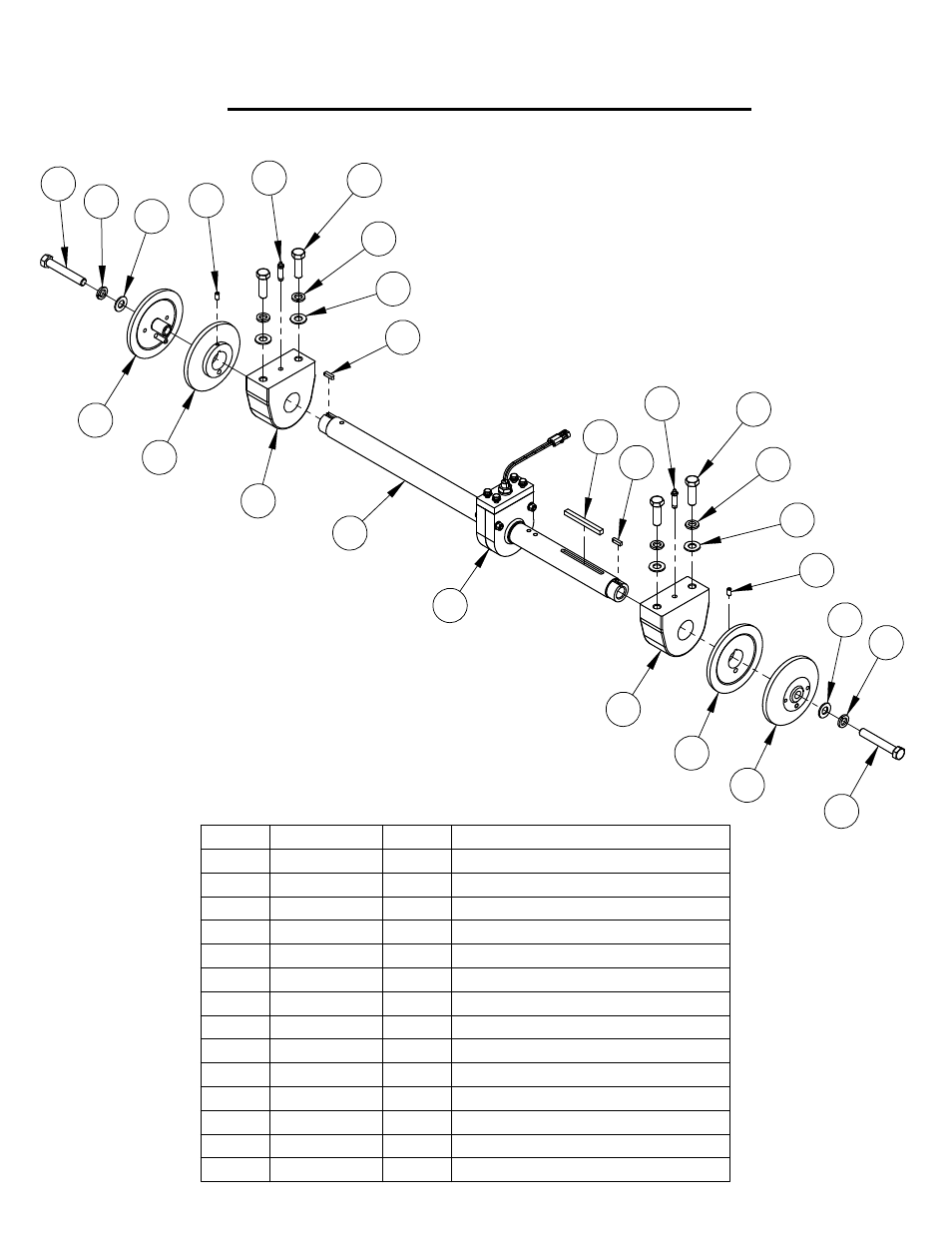

Blade Shaft Assembly #6010713B (Blades 30" - 36")
