Diamond Products CC6560XLS - Manual (Page 24)

7
14
15
21
22
23
4
11
11
2
4
5
6
16
13
3
2
10
5
9
1
19 20
18
12
17
8
24

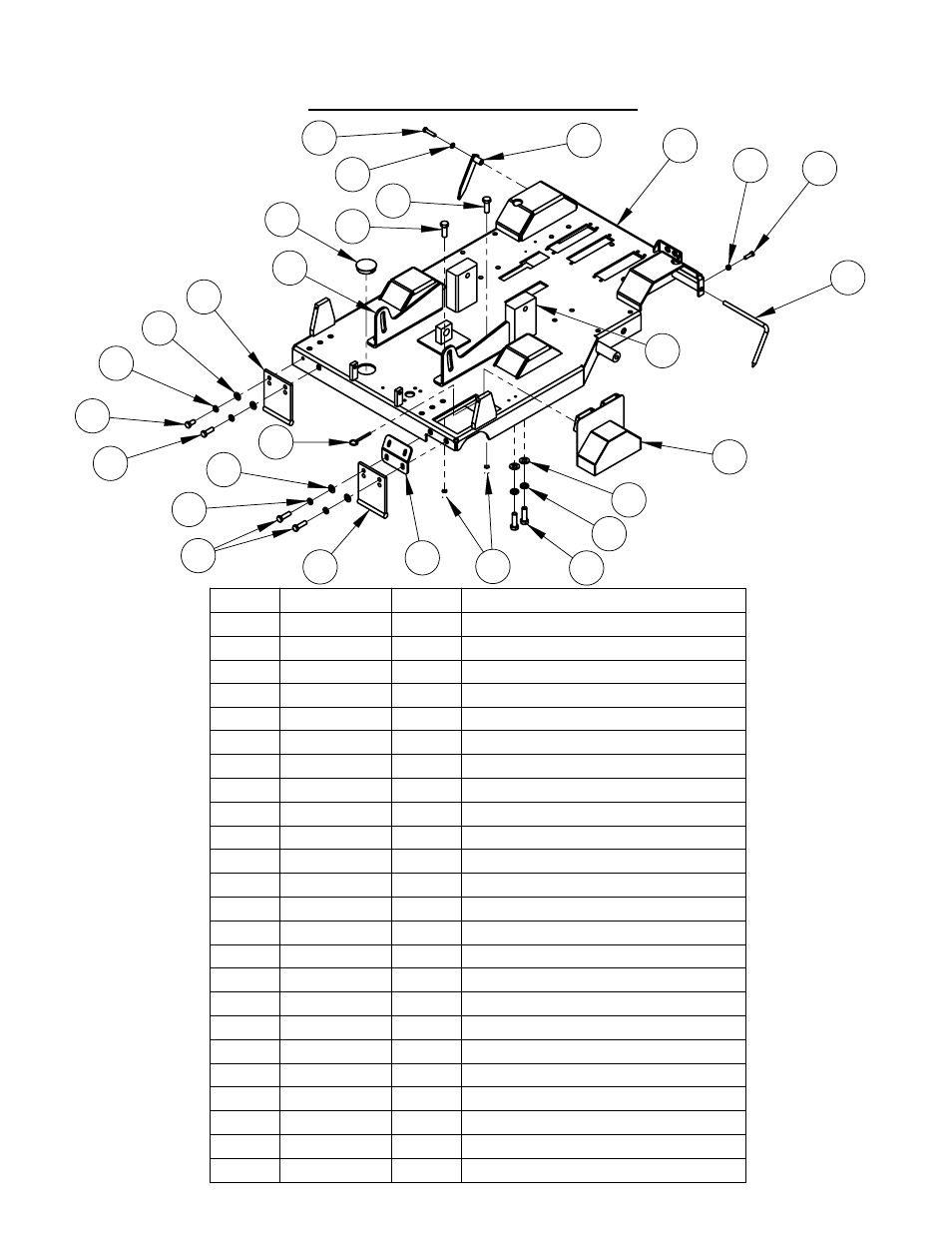

Frame Base Assembly #6010722
ITEM PART NO. QTY. DESCRIPTION
1 6010662A 1 Frame Base
2 6010681 2 Skid Plate
3 6010680 1 Guard Attachment Plate (25 degree)
4 2900058 4 Flat Washer, 1/2" SAE
5 2900084 4 Lock Washer, 1/2" Split
6 2900086 1 Cap Screw, Hex Hd., 1/2-13 x 1"
7 2900499 1 Cap Screw, Hex Hd., 1/2-13 x 1-1/2"
8 2900139 2 Cap Screw, Hex Hd., 1/2-13 x 1-3/4"
9 6010660 2 Forward Engine Mount
10 6010661 2 Rear Engine Mount
11 2900147 4 Cap Screw, Hex Hd., 5/8-11 x 1-3/4"
12 2900135 4 Lock Nut, 5/8-11 Nylon
13 2900002 4 Flat Washer, 5/8" SAE
14 2900113 4 Lock Washer, 5/8" Split
15 2900136 4 Cap Screw, Hex Hd., 5/8-11 x 2"
16 6010645 1 Shaft/Flange Guard (Wide)
17 2900156 1 Lock Pin with Ring
18 6010683 1 Rear Pointer Rod
19 2900033 1 Hex Nut, 3/8-16
20 2900013 1 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
21 6010022 1 Rear Pointer
22 2900006 1 Lock Washer, 3/8" Split
23 2900047 1 Cap Screw, Hex Hd., 3/8-16 x 1-3/4"
24 2502038 1 Plug, 2-1/2" Hole
24
