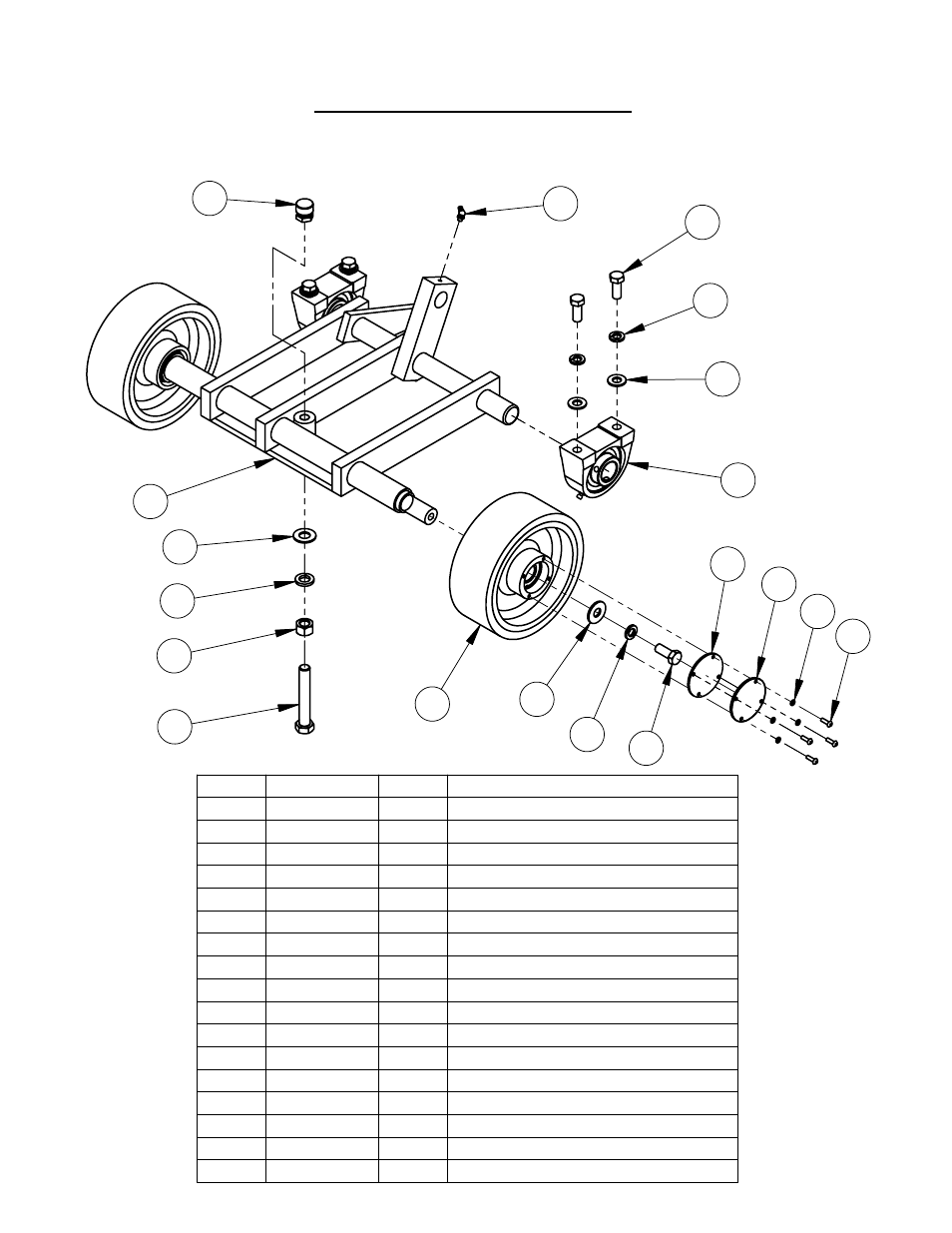

Front Axle Assembly #6010562
ITEM PART NO. QTY. DESCRIPTION
1 6010535 1 Front Axle Weldment
2 6010581 2 Wheel Assembly, 8" Front
3 2501393 2 Wheel Cover Gasket
4 6010536 2 Wheel Cover
5 2900038 8 Lock Washer, #10 Split
6 2900159 8 Machine Screw, Rd. Hd., #10-24 x 5/8"
7 2900127 2 Flat Washer, 1/2" USS
8 2900084 6 Lock Washer, 1/2" Split
9 2900025 6 Cap Screw, Hex Hd., 1/2-13 x 1-1/4"
10 2900058 4 Flat Washer, 1/2" SAE
11 2500158 2 Pillow Block Bearing 1-1/4"
12 2900002 1 Flat Washer, 5/8" SAE
13 2900113 1 Lock Washer, 5/8" Split
14 2900112 1 Hex Nut, 5/8-11
15 2900492 1 Tap Bolt, Hex Hd., 5/8-11 x 4"
16 2900446 1 Swivel Pad Nut, 5/8-11
17 2900184 1 Grease Fitting, 1/8" NPT x 45 degree
