Hardware Installation
- 27 -
English

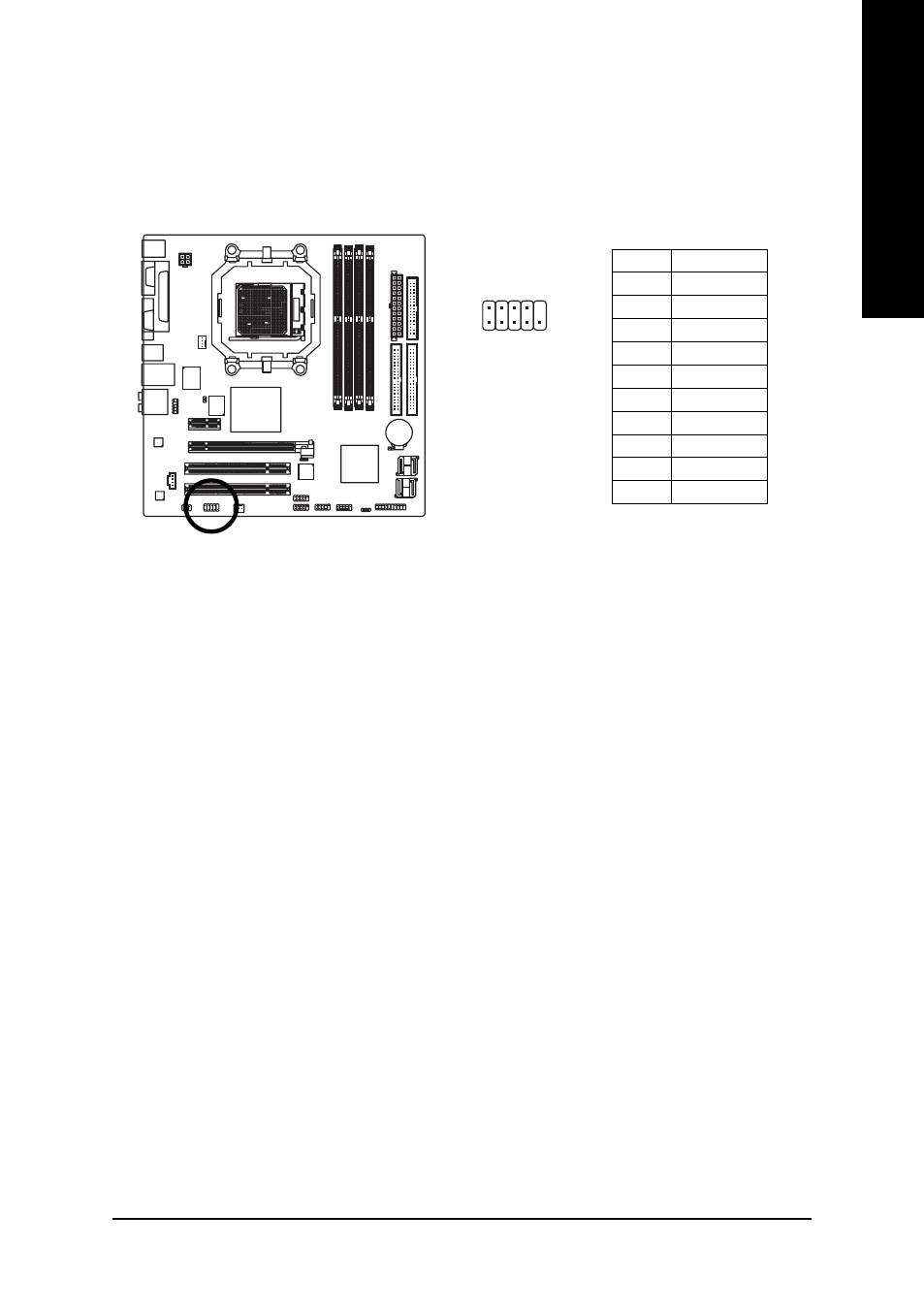

18) COMB (COMB Connector)
Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional COMB cable, please contact your local
dealer.
Pin No.
Definition
1
NDCDB-
2
NSINB
3
NSOUTB
4
NDTRB-
5
GND
6
NDSRB-
7
NRTSB-
8
NCTSB-
9
NRIB-
10
No Pin
1
9
2
10
