cAMErA
Power requirements 100/115/230 VAC, 50/60 Hz,24 Watts
camera Tube 1.0” separate mesh; infrared-sensitive
lead sulfide vidicon
Signal to Noise 55 db or higher
Video Output Monochrome EIA Standard RS-
170, 525 lines or CCIR, 625 lines,
composite video output and sync; 1.0
to 1.4V p-p
Environment Vibration: 3g swept sine wave,
15 to 2000 hz; shock: 50 g
Pyrometer Detector /OP option: Solid state 1.6 micron
detector 629 to 1482°C (1165 to
2700°F), multiplexed with video.
Requires M702 processor

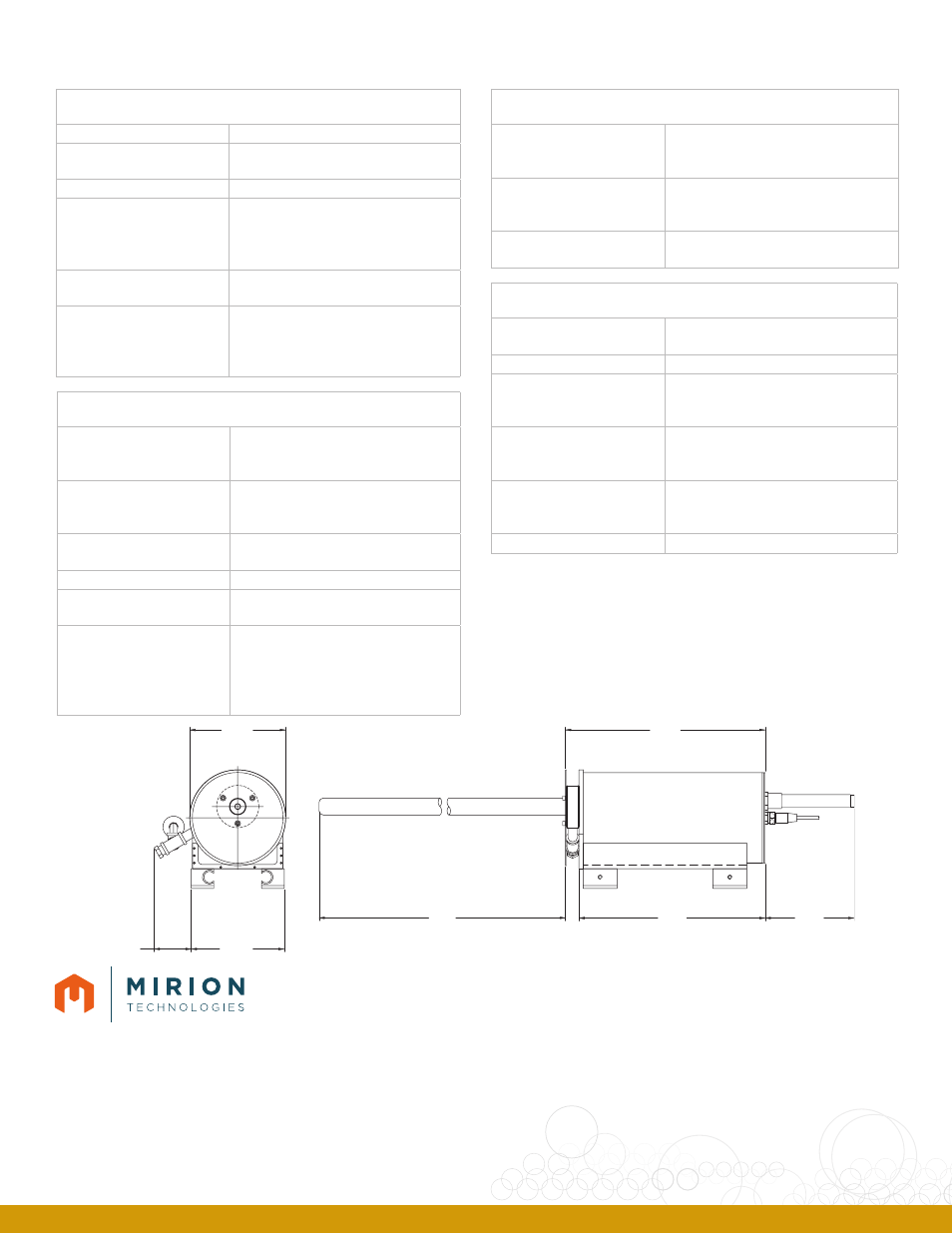

SPEcIFIcATIONS AND PErFOrMANcE
216mm
8.50
209mm
8.23
83,4mm
3.28
450mm
17.7
200mm
7.88
419mm
16.5
'L'
LENS
Construction Air-cooled 304 stainless steel outer
shroud. Sapphire window for max.
environmental protection
Lengths Standard:
/L48: L = 1118mm (44”)
/L60: L = 1423mm (56”)
Field of View 90° horizontal, 72° vertical,
110° diagonal
Diameter 1.5” (38mm
Optical Filter Particulate-penetrating proprietary
infrared filter
Cooling Requirements Instrument-quality air*, 7-10 dm 3 s -1
@ 35-70 kPa (15-20 SCFM
@ 5-10 psig typical)
*Air quality to ISO 8573-1,
Class1•7•2
cAMErA
construction Corrosion-resistant nylon cover;
anodized aluminum body; NEMA 4,
dust and waterproof
cooling Type Vortex cooled; instrument-quality air;
13 dm
3 s -1 @ 690kPa (25 SCFM @ 100
psig typical)
Ambient Environment 0° to 60°C (32° to 140°F) operating
temperature
MEcHANIcAL
Focus Adjustment Optical focus adjustment screw located
on back of enclosure
Video Output Jack Female PL-259 “UHF” type
Power Input Jack Removable waterproof miniplug (JOY
type TP, female 3-conductor; mating
power cord provided)
Enclosure cooling Input 1/4” brass quick-disconnect nipple;
mating coupler (Snaptite BVHC4-4F)
provided
Lens cooling Input 1/2” brass quick-disconnect nipple;
mating coupler (Snaptite BVHC8-8F)
provided
Weight 12.1 kg (27 lbs)
