SpECIFICATIoNS AND pErForMANCE
CAMErA
power requirements
85-265 VAC, 47-440 Hz
Camera Detector
1
/
2
” solid state color image sensor
System resolution
>450 lines
Video
1.0 V p-p, 75 ohm, CCTV signal /VTN: RS170-
NTSC or /VTP: CCIR-B-PAL video timing
Control
/AIN: Manual focus and iris adjustment on back
/AIR: Remote iris adjustment with M721 Remote
Auto Iris Controller
LENS
Construction
Air or water cooled 304 stainless steel outer
shroud. Sapphire window for maximum environ-
mental protection.
Lens options
/L: Straight view, /RAL: right angle with 90°
offset optics, /OAL: oblique angle with 45° offset
optics, /WCL: water cooled

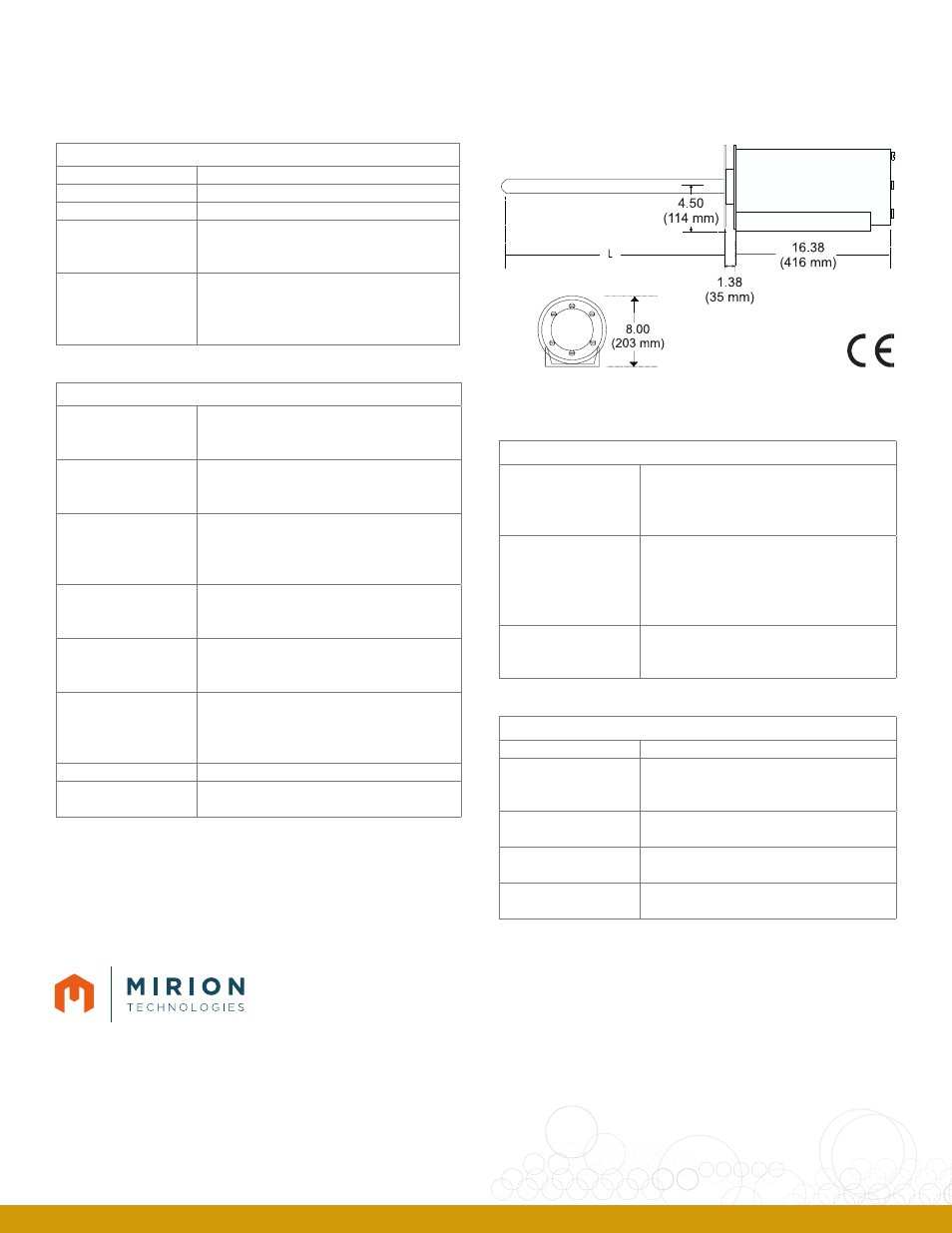

Lengths
STD /L30: L=27.7” (704mm) or
/OAL30: L=26.7” (678mm)
Other lenses available. Please contact your
sales representative.
Field of View
Wide: 75°H x 56°V
Medium: 60°H x 45°V
Narrow: 35°H x 26°V
Diameter
/L: 38mm (1.5”)
/RAL & /OAL: 51mm (2.0”)
/WCL: 57mm (2.25”)
Cooling requrements
Instrument quality air, 12-19 dm
3
/sec (25-40
SCFM) @ 5-15 psig (34-103 kPa) required for
straight view lens (to ISO 8573-1, Class 1•
7• 2)
Environment
1621°C (2950°F) with proper cooling
Thermocouple
/TJ: Type J thermocouple option
/TK: Type K thermocouple option
ENCLoSUrE
Construction
/CEI: Corrosion-resistant, insulated, air-
cooled, NEMA 4;
/CEW: Corrosion-resistant, water-cooled,
NEMA 4
Cooling Type
/CCP: Air purged with check valve,1 SCFM
@ 2 PSI (0.5 dm3/sec @ 14 kPa)
/CCV: Vortex cooling 13 dm
3
/sec @ 690 kPa
(25 SCFM @ 100 PSI); Instrument quality air
required.
Ambient Environment
Max. 60°C (140°F) with negligible radiant
heat load. Water cooled option available to
handle high radiant heat environment
MECHANICAL
Video output Jack
Female PL-259 “UHF” type
power Input Jack
Removable waterproof miniplug (JOY type
TP, female 3-conductor; mating power cord
provided)
Enclosure Cooling
Input
1
/
4
” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC4-4F) provided
Lens Cooling Input
1
/
2
” brass quick-disconnect nipple; mating
coupler (Snaptite BVHC8-8F) provided
Weight
14kg (30 pounds) for air-cooled
configuration (lens and camera)
