RETRAcT

cylinder

50mm (2”) bore with steel rod;
Standard
/AL12 - 305mm (12”) stroke
Optional:
/AL18 - 457mm (18”) stroke
/AL24 - 610mm (24”) stroke
/AL30 - 767mm (30”) stroke

Air Requirements

Minimum 30 psig (207 kPa); maximum
inlet presssure 160 psig (1103 kPa)

Power Specification

100/240 VAC, 50/60 Hz

Ambient Temperature

4°C to 71°C (-40°F to 160°F)

SPEcIFIcATIonS AnD PERFoRMAncE

RESERvoIR

Dimensions

Clearance envelope;
240mm W x 490mm H x 225mm D
(9.4” x 19.3” x 8.9”mm)

Mechanical

1/2” NPT female threaded inlet, five
micron filter, check valve at inlet to allow
one-way air flow

Air Hose

Aeroquip SH925 (5 meters)

Air Storage

Reservoir stores enough air for 1 retrac-
tion of the 762mm (30”) stroke cylinder
@ 276 kPa (40 psi)

conTRollER

operation Modes

Automatic retract when air pressure
drops below a set level or if power fails.
For water cooled lens: Retracts when
cooling flow drops below a set level.
Camera can also be manually retracted
and inserted by the operator.

Min. Air Pressure Set Point

Factory preset to 2.5 psig (17 kPa) min.
lens pressure

Min Water Flow Set Point

1 gpm

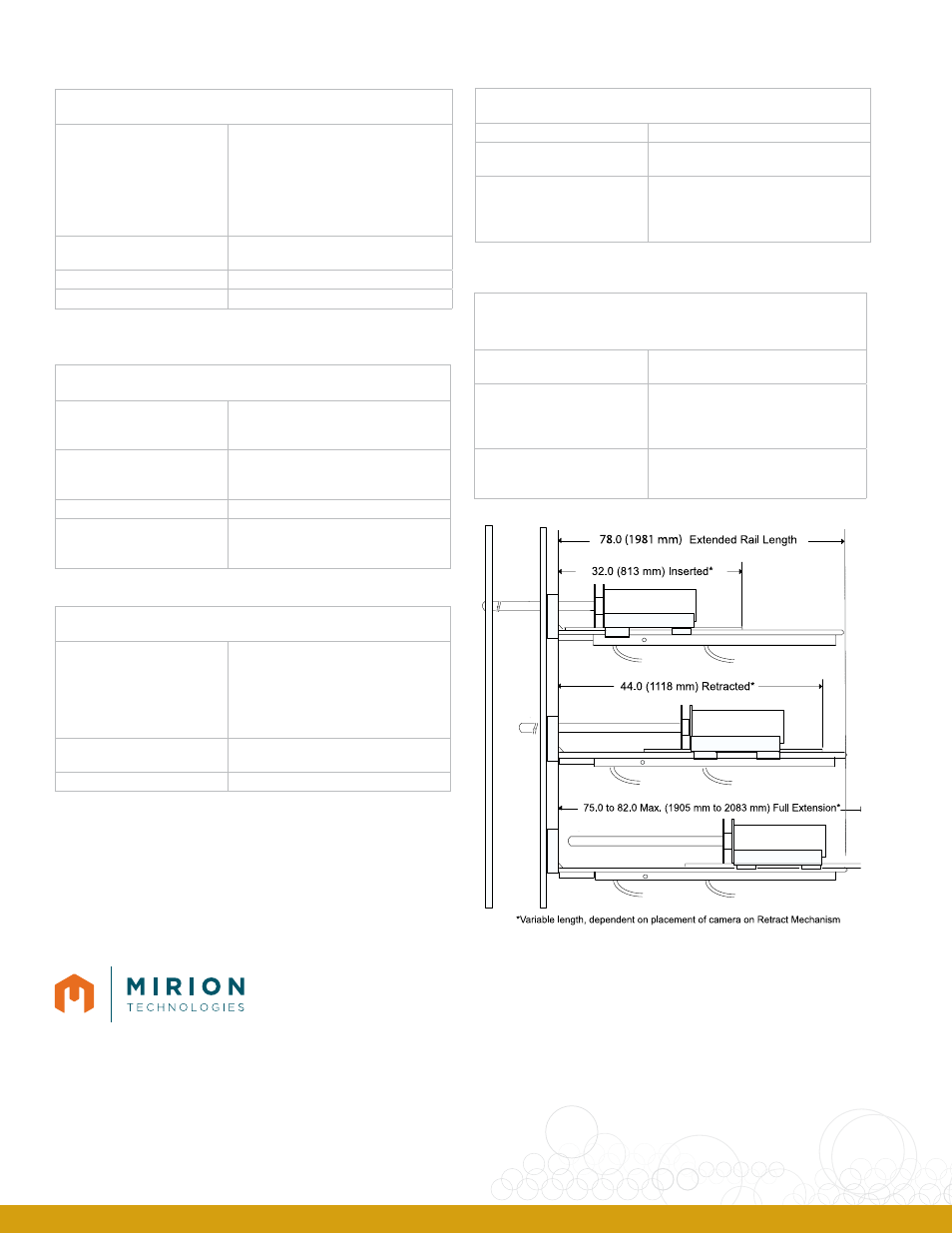

SAMPlE REPRESEnTATIon: 12” RETRAcT AnD
72” RAIl

Top Figure

The pneumatic retract is fully inserted
into the process.

Middle Figure

The pneumatic retract has retracted
the lens 12 inches (305mm) from the
heat of the process to the end of the
cylinder stroke.

Bottom Figure

The lens and camera have been manu-
ally pulled back to the length of the
extended rail.

conTRollER

controller Ambient Temp.

0° to 54°C (32°F to 130°F)

Physical Dimensions

254 W x 305mm H x127mm D
(10” x 12” x 5”)

Enclosure Specifications

IP66 (prior to modification) to EN 60
529/10.91
Sheet steel, dipcoat primed and powder
coated in textured RAL 7032
