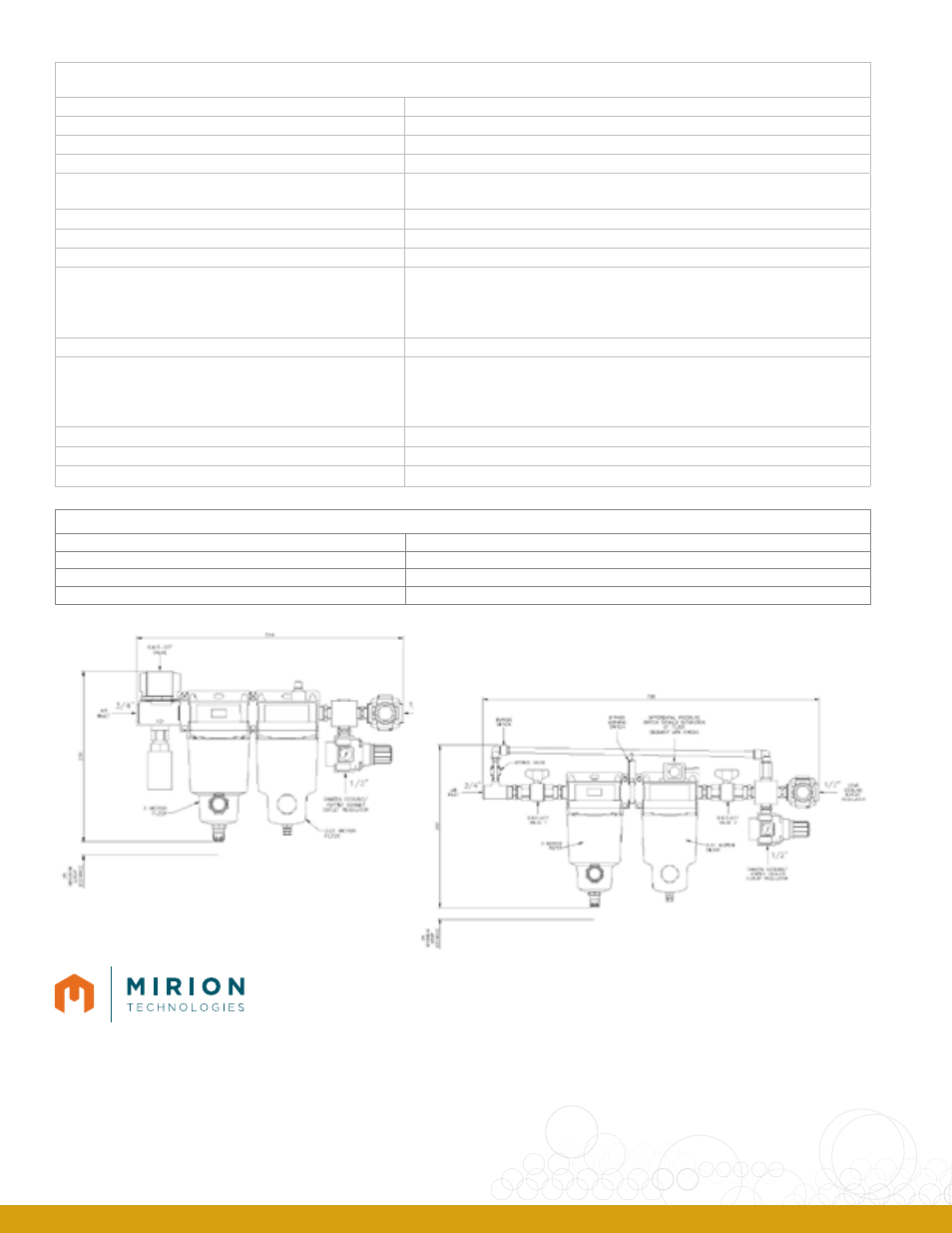

SpEcIFIcATIonS AnD pERFoRMAncE

Maximum operating Temperature Range

5°C to 60°C (41°F to 140°F)

Maximum System Air Flow (WET)

3700 LPM (130 scfm) @ 0.7 MPa (100 psig)

Maximum Inlet pressure

1.5 MPa (217 psig, 15 bar g)

Lens cooling pressure Regulation

0 to 58 psig (0 to 400 kPa) (0~4 bar g)

pressure Regulation

purge camera cooling

Vortex camera cooling

0 to 58 psig (0 to 400 kPa) (0~4 bar g)
0 to 160 psig (34 to 1104 kPa)

M408 Air Filter with Vortex Regulator

516mm W x 330mm H x 130mm D (20.3” W x 13”H x 5.1” D)

Maximum Dimensions (Bypass Version)

725mm W x 350mm H x 130mm D (28.5 W x 13.8”H x 5.1” D)

M408 Air Filter with purge Air Regulator

GAS.00841 gauge (0~4 bar)

M408 Air Filter with options

GAS.00844, includes:

Purge air regulator

Filter bypass with low pressure switch

Alarm contacts for electronic service indicator

M408 Air Filter with Vortex Regulator

GAS.00840 gauge (0~10 bar)

M408 Air Filter with options

GAS.00843 gauge (0~4 bar), includes:

Vortex Regulator

Filter bypass with low pressure switch

Alarm contacts for electronic service indicator

M408 cooling Hose - Reinforced Rubber (-40 to 100°c)

6 meters (20 feet)

net Weight (actual weight varies with options selected)

8 kg (18 lbs)

Shipping Weight

Approximately 9 kg (20 lbs)

opTIonS

BSp to npT Adaptor Kit

KIT.00060

High Temperature Air Hoses (x 10m) [33ft]

/HT_408

High Temperature Air Hoses (x6m) [20 ft]

/HT6M_408

Water Separator

/WS_400
