SpEcIFIcATIoNS AND pERFoRMANcE

cAMERA

Type

1/3” interline transfer CCD

Video output

Composite 1 volt PP 75 ohm
(optional Y/C setting)

Iris

Electronic CCD iris

Signal System

PAL or NTSC

Resolution

460 TV lines

Electrical Supply

12V dc 2.3W from air supply

opTIcS

Aperture

Fixed

Lens

Relay type

Angle of View:

Diagonal

Horizontal

Vertical

60°

90°

50 ±3°

75 ±3°

38 ±3°

58 ±3°

Iris

CCD Electronic iris

camera casing

BS 970 type 310 531 high temperature
stainless steel

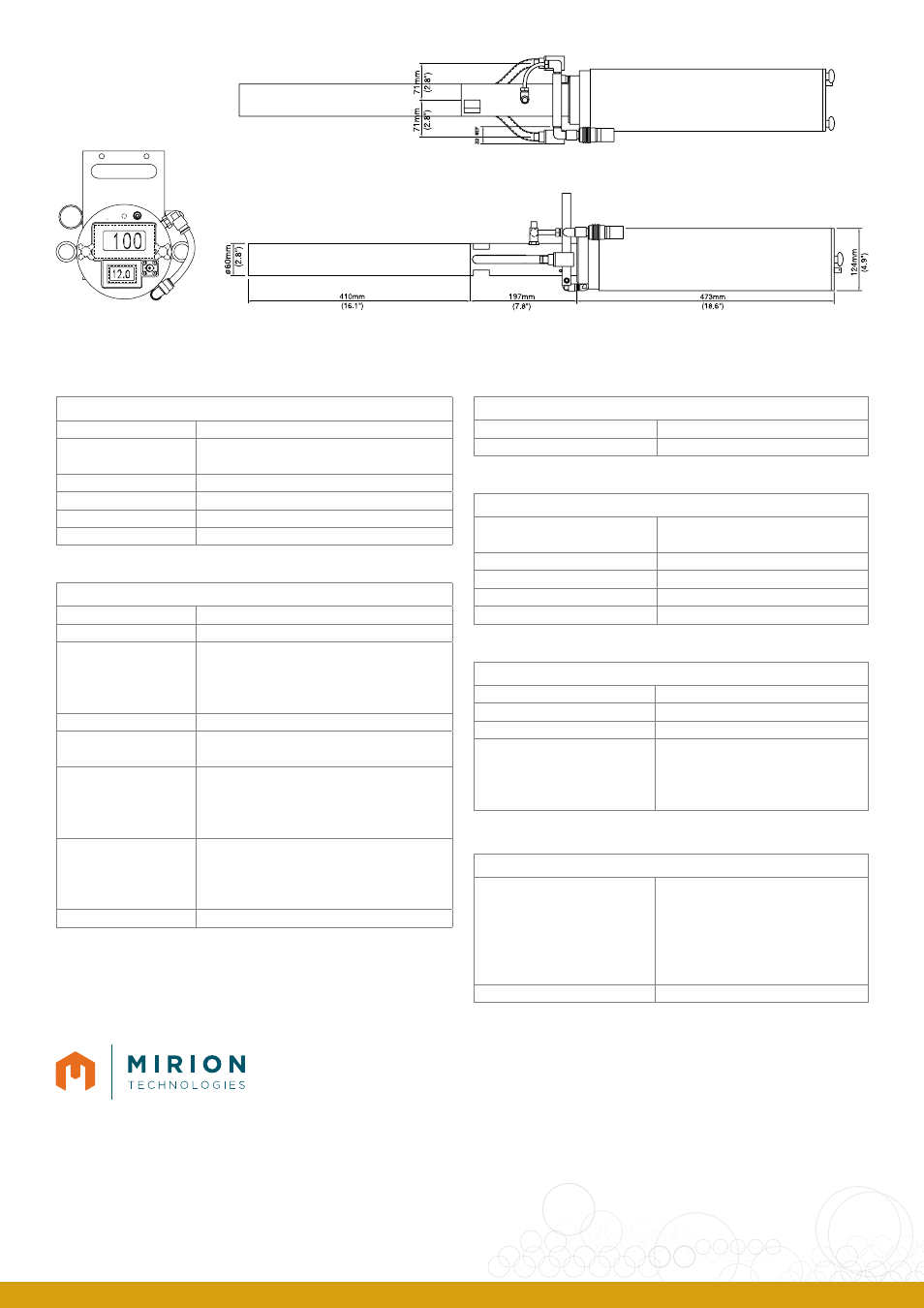

Dimension R660AcA

R660AcB

R660AcD

R660AcE

A ø60mm (2.36”) B 398mm (15.7”) FOV

d

90°

A ø60mm (2.36”) B 898mm (35.3”) FOV

d

90°

A ø60mm (2.36”) B 398mm (15.7”) FOV

d

60°

A ø60mm (2.36”) B 898mm (35.3”) FOV

d

60°

Weight

R660AcA

R660AcB

R660AcD

R660AcE

11kg (24.2lbs)
17kg (37.4lbs)
11kg (24.2lbs
17kg (37.4lbs)

Temperature Sensor

K type mineral insulated thermocouple

cooLING SYSTEM

Type

Air cooled air purged

camera Temperature

1700°C (3092°F)

coMpRESSED AIR

Quality

Dry oil free instrument air
ISO 8573-1, Class 1• 7• 2

Supply pressure

7 to 8 bar (100psi)

Regulated pressure

2 bar minimum

Flow Rate

10dm

3

s

-1

@ 2.4 barg

Temperature

20°C (68°F)

SYSTEM AccESSoRIES

Gimbal Mounting Flange

R630MFA03A

camera cooling Hose (5m)

R600CHA03A

or Length as Required

R600CHA03A

Filtering System

GAS.00160
40µm coalescing with shut off valve,
pressure relieving regulator and
manual drain filter

Tripod, VCR and monitors are available as required.

AUXILIARY poWER IN/oUT

power outlet via 2 - 1mm
Jack

12V dc, 0.5A (max)
May be used to power a portable
LCD Monitor. Alternatively, this jack
may be used to supply power to the
camera in a workshop environment
where cooling air is not required.

power Inlet via 2 - 1mm Jack

12Vdc, 0.15A
