Camera
Type ................................................... 1/2" interline transfer CCD
Video output ..................................... Composite 1 volt P.P.
75 ohm (optional Y/C setting)
Iris ..................................................... Electronic CCD iris
Signal system ................................... PAL or NTSC
Resolution ......................................... 380 TV lines (460 in Y/C)
Electrical supply ............................... 12V dc 3.5W from control system
Optics
Format ............................................... Half inch format, pinhole lens
Lens focal length .............................. 4.0mm
Aperture ............................................ f/2.5
Angle of view ................................... Diagonal 90°
Horizontal 77°
Vertical
62°
Iris ..................................................... Manual iris; remotely adjustable
option available
Motorized Iris Option ........................ R600KTA03A
Camera casing .................................. BS 970 type 310 531 high tempera-
ture stainless steel

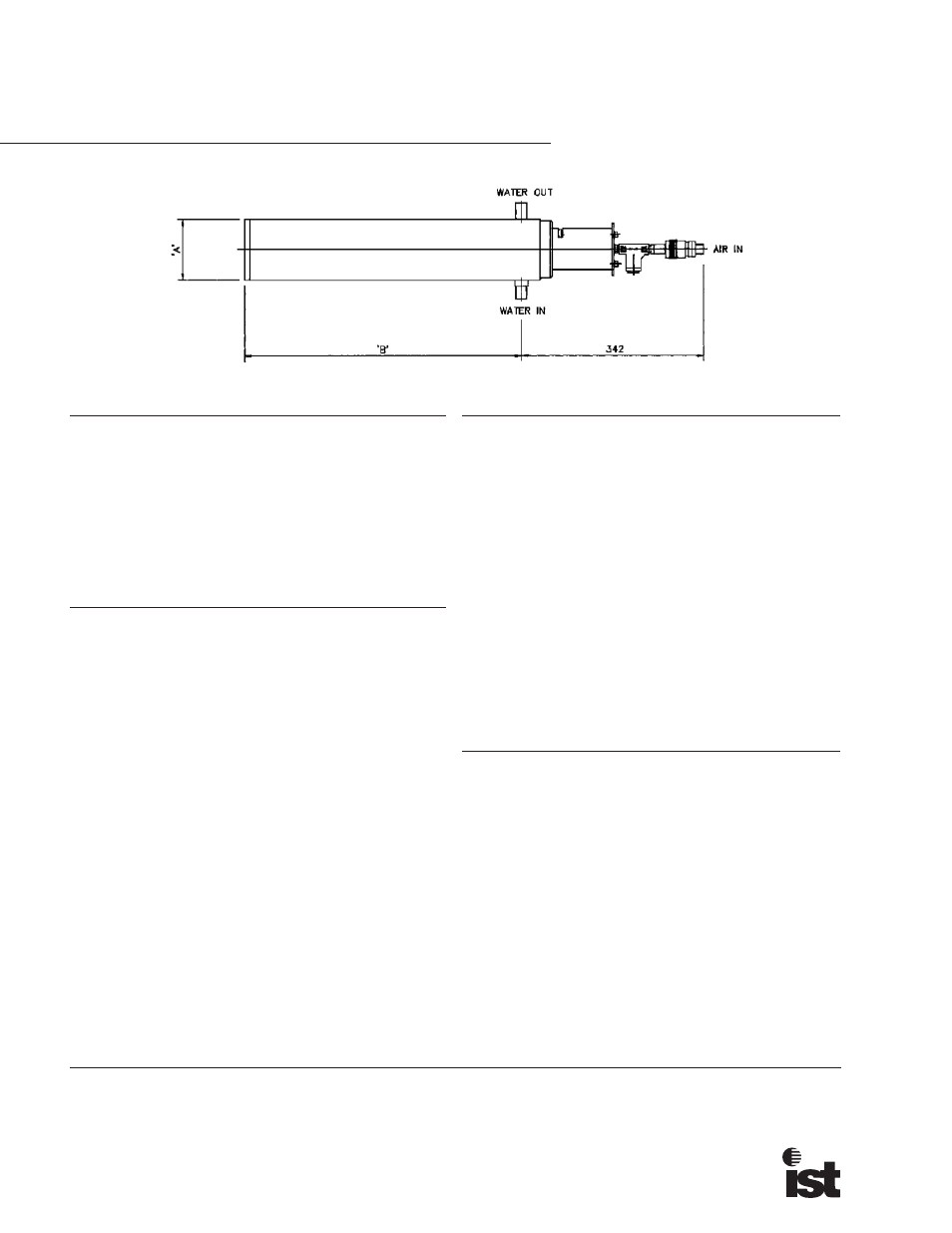

Dimension ......................... R640VHA R640VHB R640VHC
A ....... ø115mm (4.53") ø115mm (4.53") ø115mm (4.53")
B ........ 518mm (20.4")
718mm (28.3") 1214mm (47.8")
Dry Weight ............................. 19kg (41.9lbs) 26kg (50.3lbs) 44kg (97lbs)
Wet Weight ........................... 23kg (50.7lbs) 32kg (70.5lbs) 54kg (119lbs)
Temperature sensor .......................... K type mineral insulated
thermocouple
Cooling System
Type ................................................... Water cooled air purged
Camera temperature ........................ 1750°C (3182°F)
Cooling Water Supply
Quality .............................................. Clean/Sediment-free
Supply pressure ................................ 4 bar
Regulated pressure .......................... 2 bar*
Flow rate ........................................... 15 liters (4 gal.) per minute
Temperature ...................................... 35°C (95°F) (typically)
PH Value ........................................... 6 to 8
*Depending on installation and operating temperature
Compressed Air (dry, oil-free air)
Compressed Air Supply .................... 2 to 4 bar @ 20°C (68°F)
Quality .............................................. ISO 8573-1 Class 1•7•2
Control Equipment & System Accessories
Gimbal mounting flange ................... R640MFA03A
Camera Cable (5m) ........................... R600CAB03A
Camera cooling hose (5m) ................ R600CHA03A
Filtering system ................................ GAS.00160
40µm coalescing with shut off valve,
pressure relieving regulator and
manual drain filter
Standard control system .................. R600CIA03A and R600CBA03A (or
R600CBB03A) or R600CBD03A
Retraction control system ................ R600RCA03A, R600CBA03A and
R640RTC03A or R640RTD03A and
R600FPA03A
Please refer to control system data sheets.
QUADTEK
VENTUS Series
Specifications and Performance
