ZG 50
Detectors
TECHNICAL DATA
(1) In combination with dead time compensation within measuring
channel DPK 251
(2) ± 15%, related to Cs-137
COMMON DATA
●
Energy range: 60 ... 1300 keV
●
Energy response: ± 25%
●
Direction response: (until ± 45°): ± 15%
●
Temperature response: (-10 ... +50°C): ± 20%
●
Output signal: 5V, positive
●
Supply voltage: 4 ... 6 V
●
Current drain: 80 mA approx. at 4V
●
Ambient temperature: -25 ... +70°C (-13 ... +158°F)
●
Protection index: IP 54
●
Seismic stress: 3 g, 5 ... 100 Hz
●
Mechanical shock: 30 g, 11 ms
●
Connector: Amphenol T3106 001
●
Connecting cable: four lines, twisted pairs, shielded
●
Cable diameter: max. 12 mm (0.47 in)
●
Dimensions: Ø 50 mm (2 in), length 200 mm (7.8 in)
●
Weight: 300 g (10.6 oz) approx.
DIGITAL SIGNAL PROCESSING TK 250
For signal processing of the pulses generated by the
GM-counter detectors ZG 50 Mirion Technologies offers
type tested measuring channels of the system TK 250:
DPK 251 Digital Pulse Channel for dose rate monito-
ring, four signal paths for up to four detectors ZG 50.
Measuring channels of the system TK 250 are characte-
rized by optimized functions, effective testing facilities,
easy handling and reliable operation.
www.mirion.com
145027EN-3
Properties
Version: A1
A2
A3
A4
Measuring range (1) Gy/h
1e-7 ... 1e-2
2e-7 ... 3e-2
1e-6 ... 0.3
5e-6 ... 3
Calibration factor
(2) Gy
-1
h / ips
5.5e-7
1.1e-6
6.4e-6
3.2e-5
Dead time μs (approx.)
65
35
16
9
Life expectancy Gy (approx.)
7
15
70
100
Counter tube
ZP 1201
ZP 1321
ZP 1313
ZP 1301

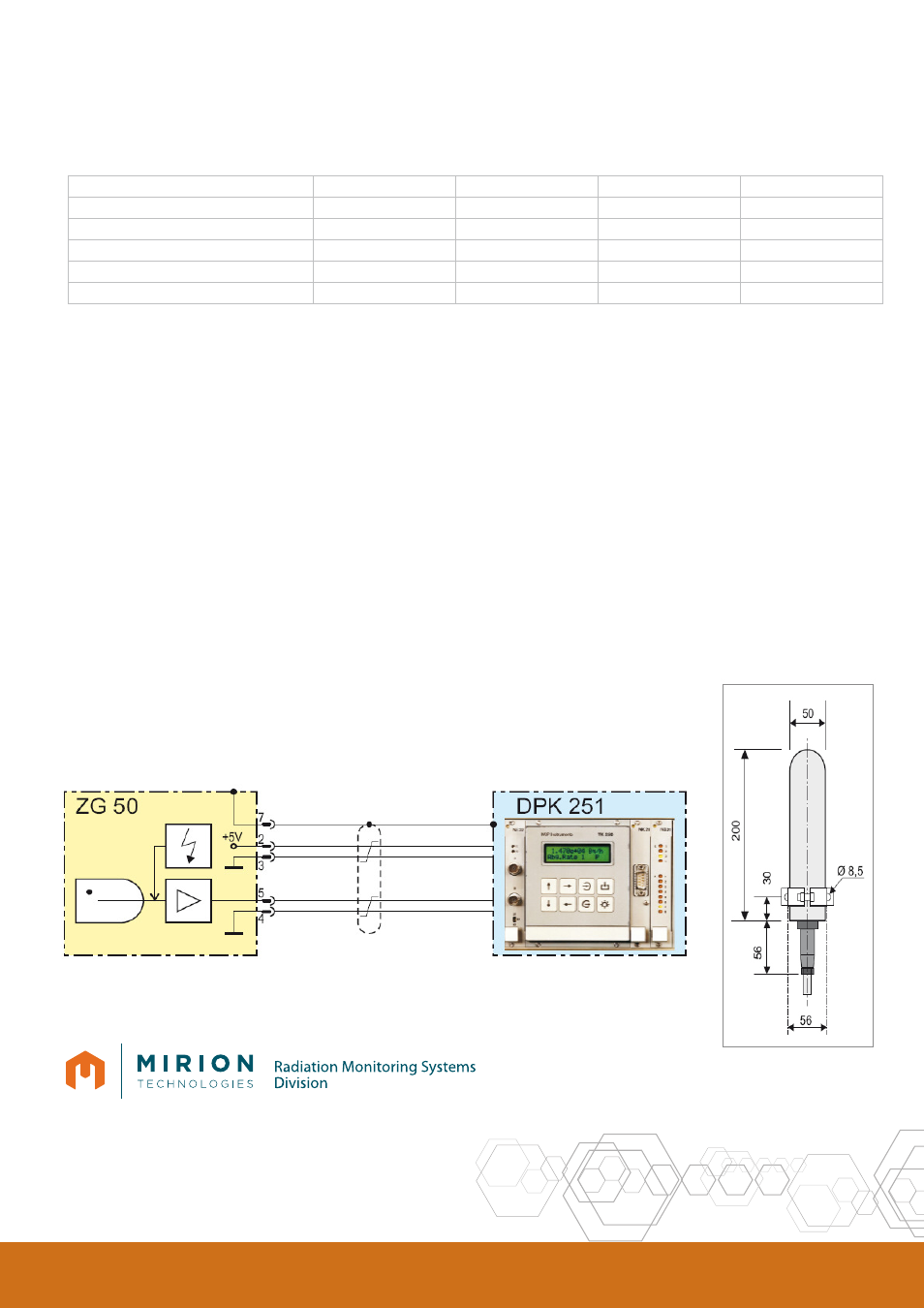

Connection to the digital pulse channel DPK 251
