BF3 COUNTER TUBES
Neutron Flux Instrumentation
www.mirion.com
145018EN-B
348 243 EN-C

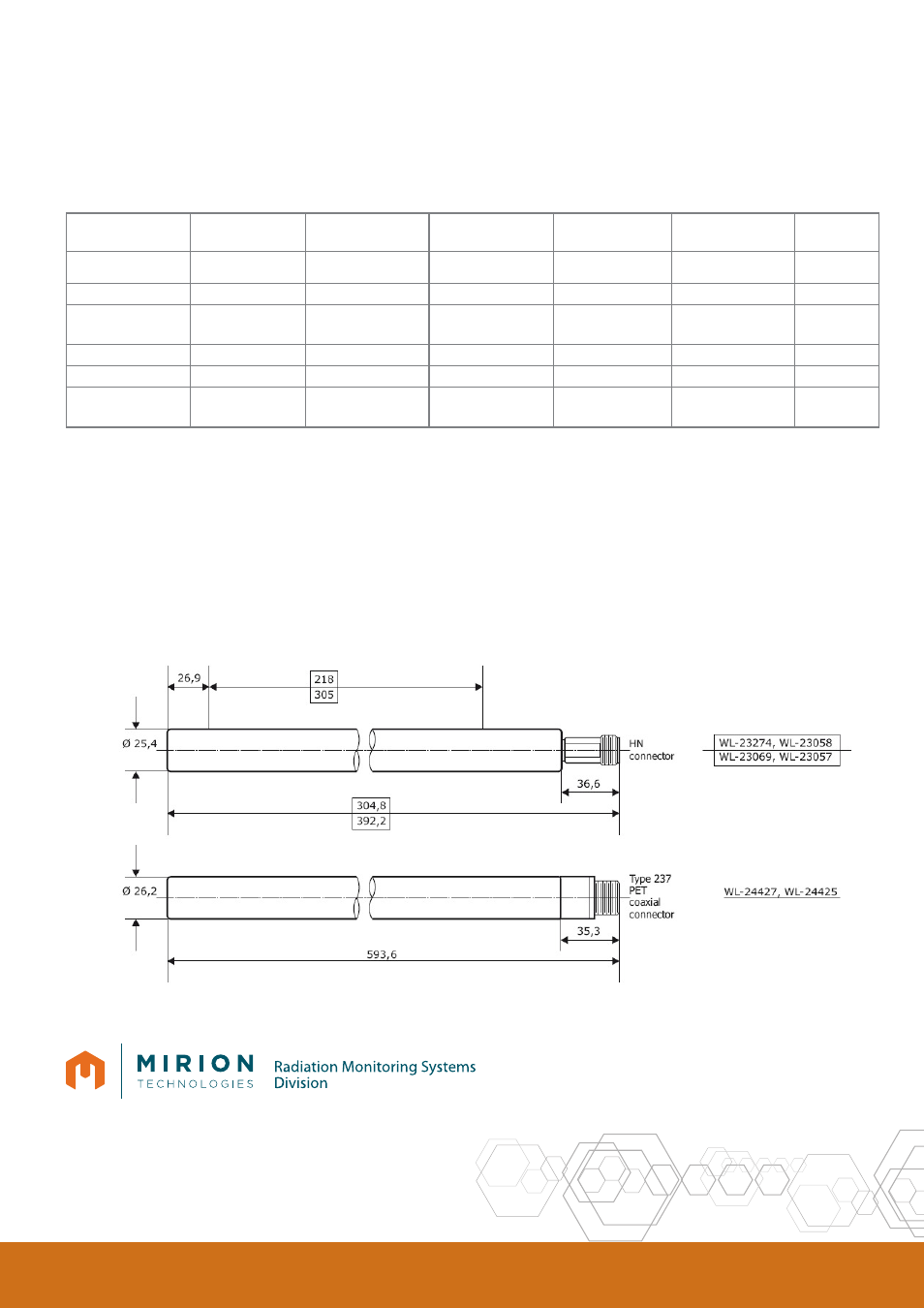

PREFERRED TYPES OF THE 1” SERIES
Notice: 1 nv = 1/cm2s; 1 cps/nv = 1 cm2
COMMON DATA
●
Max. operating temperature: 120°C (248°F),
WL-24425/-24427: 107°C (224°F)
●
Gas fi lling: BF3-gas with > 90% enriched B10
●
Housing: aluminium
●
Insulators: alumina ceramic
●
Manufacturer: Mirion Technologies (IST) Corporation,
Horseheads, NY/USA
Type Sensitivity Measuring Range Operating Voltage Gas Pressure Length Connector
WL-23274 4.5 cps/nv 0.1 … 1e5 nv 2000V 55 cm Hg 305 mm (12 in) HN
WL-23069 6.5 cps/nv 0.08 … 7e4 nv 2000V 55 cm Hg 392 mm (15.4 in) HN
WL-24427
(~WL-23817)
10 cps/nv 0.1 … 1e4 nv 1825V 55 cm Hg 594 mm (23.4 in) #237*
WL-23058 13 cps/nv 0.04 … 4e4 nv 4000V 160 cm Hg 305 mm (12 in) HN
WL-23057 19 cps/nv 0.03 … 2.6e4 nv 2200V 160 cm Hg 392 mm (15.4 in) HN
WL-24425
(~WL-23770)
25 cps/nv 0.04 … 4e3 nv 3000V 160 cm Hg 594 mm (23.4 in) #237*
* Designed for the pulse range of the KWU-PWR with PET coaxial plug type 237
