DLK 250
Neutron Flux Instrumentation
www.mirion.com
144968EN-C
DETECTORS AND INPUT SIGNALS
●
In-core self-powered neutron detectors
●
Signal cables to DLK 250: two coaxial cables per
detector, no limitation of length
●
Detector supply: not needed
●
Measuring range for the input current: 0,1 μA ... 1 μA
for full scale
●
Option: integrated transmitter for monitoring the fuel
output temperature
DIGITAL SIGNAL PROCESSING
●
80C31/32 multi-processor system
●
Program memory: EPROM
●
Parameter memory: CMOS-RAM with integrated
Li-battery
●
Data interface: RS232 and/or RS485
●
Internal LC-display: 2 x 16 characters
FILTER ALGORITHM
●
Digital fi lter for the suppression of signal fl uctuations
●
Low pass fi lter 1st order with tolerance-intervall-com-
parator for fast signal response
●
Signal fi lter with adjustable time constant truly follow-
ing the mean value in the tolerance intervall ± ∆
●
Immediate step response in the range 0...1-∆
●
Simple and rugged algorithm
OUTPUT SIGNALS
●
Neutron fl ux for each detector position and average
neutron fl ux signal
●
Calibrated to reactor power, e.g. 0 ... 125 %Pn
●
Substitute signal for a faulty detector
●
Analog outputs: 0/4 ... 20mA/600 Ω, insulated
●
Binary outputs: insulated relay change overs,
60V/0.5A or 125V/1A
OTHER CHARACTERISTICS
●
DC power supply: 18 ... 33 VDC, approx. 1.6A at 24 V
●
Optional: AC power supply: 230 VAC or 115 VAC
+10%/-15%, approx. 40 VA
●
Operating temperature: 0 ... 70°C (32 ... 158°F)
for the main electronics
●
Mechanical vibrations: < 5 g, 5 ... 100 Hz
●
19” modular system according to IEC 60297
●
Rack size (W×H×D): 483 mm × 133 mm × 280 mm
(19 in x 5.2 in x 11 in)
●
Plug-in boards: 100 mm × 160 mm (3.9 in x 6.3 in)

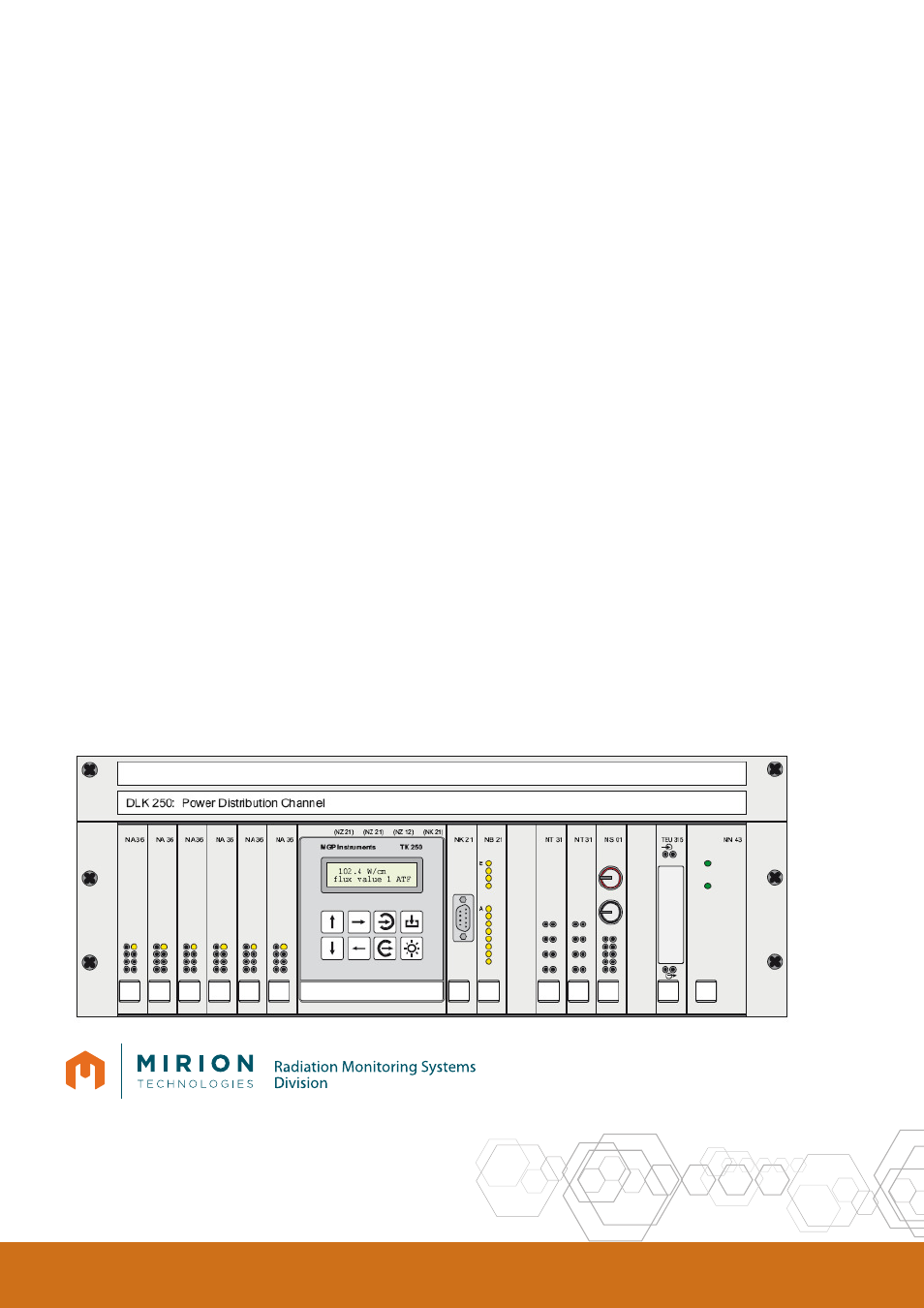

DLK 250
front view
