DWK 250
Neutron Flux Instrumentation
www.mirion.com
144970EN-C
DETECTORS
●
Wide range fi ssion chambers, e.g. WSK 61 (AREVA
NP), or CFUG 08 (Photonis)
●
Cable length to the preamplifi er: up to 100 m (328 ft)
●
Detector supply: 0 ... 500V/4mA or 0 ... 800V/30mA
PREAMPLIFIER
●
Input and output impedance matched to the cable
impedance
●
Remote operated test signal generator
●
Short term operation (max. 3 h) up to 100°C (212°F)
DIGITAL SIGNAL PROCESSING
●
80C31/32 multi-processor system
●
Program memory: EPROM
●
Parameter memory: CMOS-RAM with integrated
Li-battery
●
Data interface: RS232 and/or RS485
●
Internal LC-display: 2 x 16 characters
OUTPUT SIGNALS
●
Linear pulse count rate, e.g. 0 ... 5e5 cps
●
Linear RMS signal with automatic range selection,
e.g. 0 ... 40/125 %Pn
●
Logarithmic wide range signal, e.g. 1e3 ... 1e13 nv
●
Neutron fl ux change rate = 1 / reactor period,
e.g. -1.25 ... 0 ... 12.5 %/s corresponding to
-80 ... ∞ ... +8 s reactor period
●
Analog outputs: 0/4 ... 20mA/600 Ω, insulated
●
Binary outputs: insulated relays change overs
60V/0.5A or 125V/1A
OTHER CHARACTERISTICS
●
DC power supply: 18 ... 33 VDC, approx. 1.6A at 24 V
●
Optional: AC power supply: 230 VAC or 115 VAC
+10%/-15%, approx. 40 VA
●
Operating temperature: 0 ... 70°C (32 ... 158°F) for the
main electronics
●
Mechanical vibrations: < 5 g, 5 ... 100 Hz
●
19” modular system according to IEC 60297
●
Rack size (W×H×D): 483 mm × 133 mm × 280 mm
(19 in x 5.2 in x 11 in)
●
Plug-in boards: 100 mm × 160 mm (3.9 in x 6.3 in)

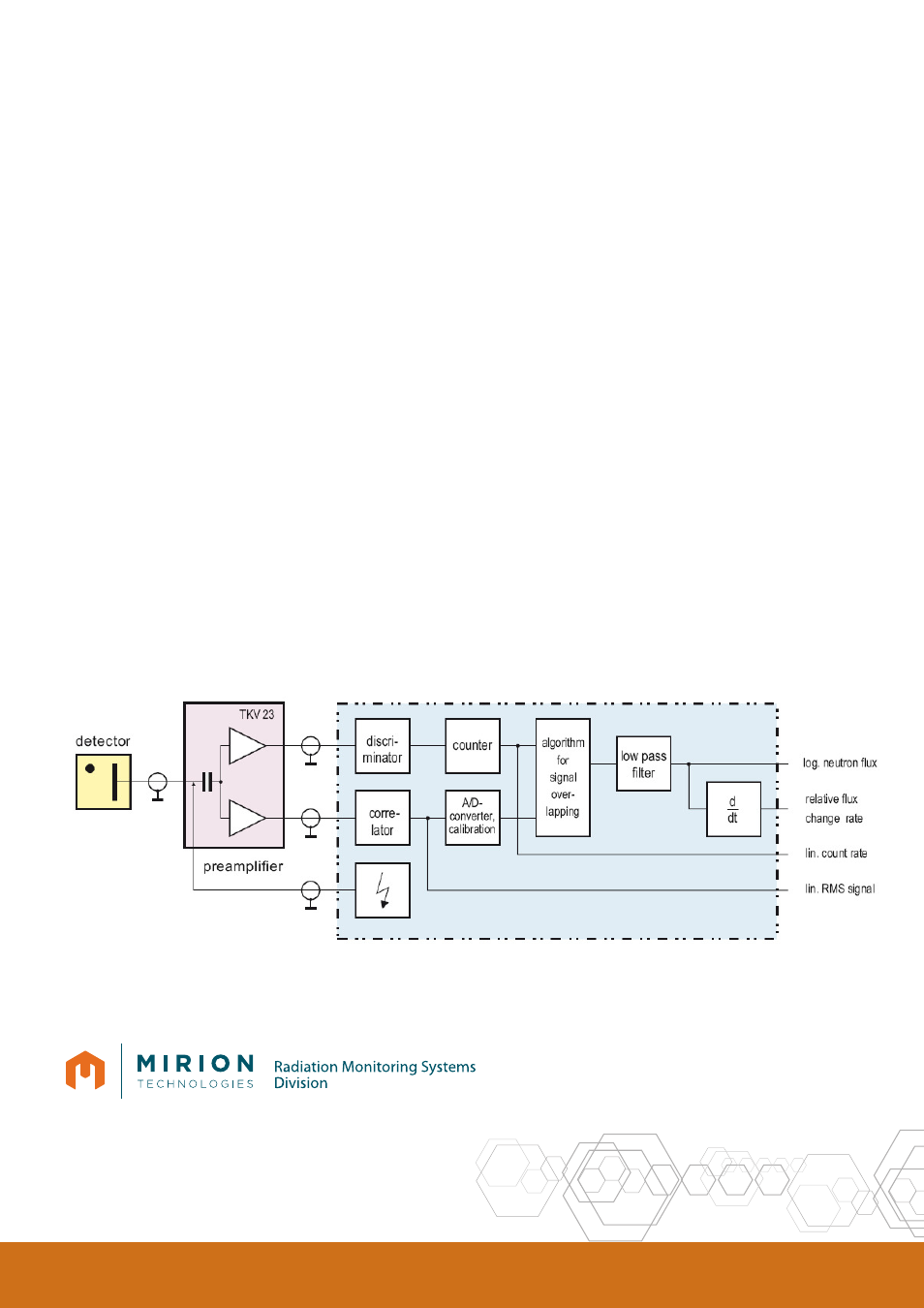

DWK 250 schematic diagram
