RADIAC SYSTEM FOR NAVAL VESSEL
GM Based Handhelds - CBRN Hazards Management Systems
SYSTEM DESCRIPTION
●
Fixed-mounted γ smart probes for inside/outside
measurements
●
Portable doserate meters for γ radiations α β contami-
nation external probes (Multirad)
●
Dosimeters (SOR) for crew with readers (XOM)
●
RADIAC software in the NBC console
RADIAC SOFTWARE
●
Acquisition and real time monitoring of detection data
●
Graphical presentation of measurements and probe
status
●
Local and remote display
●
History of the measurements
●
Crew member dose management
●
Dose prediction by extrapolation of doserate
information
●
Operates under MS WINDOWS™ environment
PROBE CHARACTERISTICS
●
Energy range: 50 keV to 1.3 MeV
●
Doserate range: 50 nGy/h to 10 Gy/h
●
Complies with IEC 532
●
Periodic built-in test
●
Programmable alarm thresholds
●
Power supply: 18 to 32 VDC
●
Networkable (RS 485)
●
Operating range: -40° C to +60°C (-40°F to +140°F)
●
Decontaminable
●
Shock resistant MIL-S901D with shock absorbers
●
EMC Compliant with MIL-STD 461
●
Waterproof IP68
●
Size: 125 x 80 x 145 mm (4.92 x 3.14 x 5.70 in)*
●
Weight: 915g (2,02 lb)
●
Vibration resistant to MIL STD 167
●
EMP and TREE resistant
* without mounting plate and shock absorbers
SOR DOSIMETER (OPTION)
●
Silicon detector
●
Flash γ and neutron detection
●
γ residual detection
●
Very small and light weight
●
1 µSv to 10 Sv dose range
XOM READER (OPTION)
●
Collection of data issued from the dosimeters
●
Dosimeter allocation and configuration
●
«Hands-free» data transmission with SOR dosimeter,
even when worn under protective suits or clothing
MULTIRAD RADIATION METER (OPTION)
●
GM detectors
●
γ range: 0.1 µGy/h to 9.9 Gy/h
●
External probes for measuring α and β contamination
www.mirion.com
144689EN-F

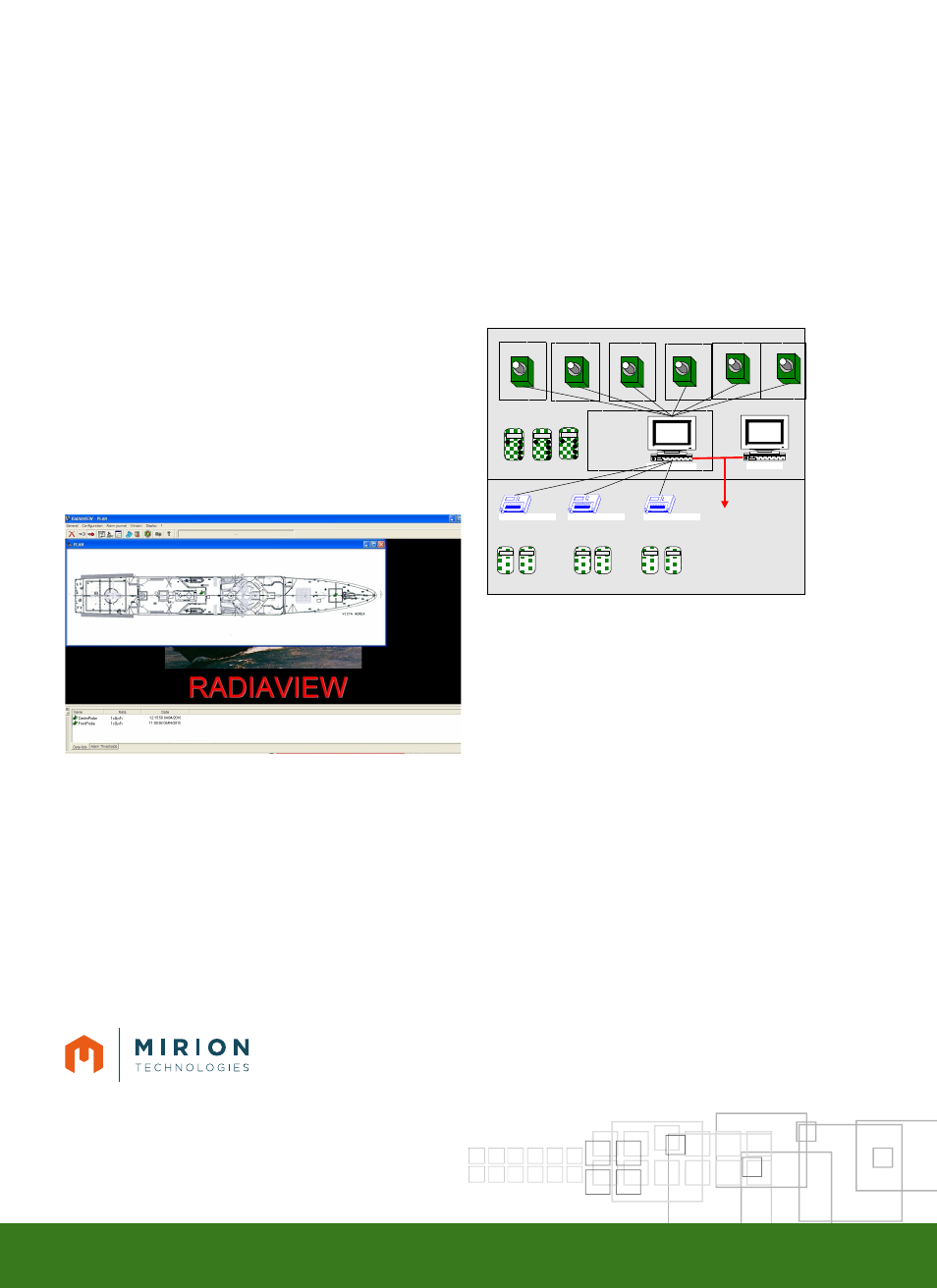

Radiac system
IMCS (NT Computer)
*
Display Station
XOM Dosimeter Reader
Gamma
Probe
Gamma
Probe
Gamma
Probe
Gamma
Probe
Gamma
Probe
Superstructure 1 Superstructure 2 Deck #1 Deck #2 Internal #1
Central Control Room
XOM Dosimeter Reader XOM Dosimeter Reader
DOM
DOR
8888
DOM
DOR
8888
DOM
DOR
8888
Gamma
Probe
Internal # 2
SOR
T
888
SOR
T
888
SOR
T
888
SOR
T
888
SOR
T
888
SOR
T
888
Network
SOR dosimeters
NATO supplier n° F8929 - Member of the French NBC Consortium
Example of architecture
