Health Physics

Division

Since norms, specifications and designs are subject to occasional change, please ask for confirmation of the information given in this publication.

Mirion Technologies (MGPI) Inc
5000 Highlands Parkway,
Suite 150
Smyrna Georgia 30082
USA

T +1 770 432 2744
F +1 770 432 9179

Mirion Technologies (MGPI) SA
Lieu-dit Calès,
route d’Eyguières

F-13113 Lamanon
France

T +33 4 90 59 59 59
F +33 4 90 59 55 18

Mirion Technologies (RADOS)
Oy

P.O. Box 506
FIN-20101 Turku
Finland

T +358 2 468 4600
F +358 2 468 4601

Mirion Technologies (RADOS)
GmbH
Ruhrstrasse 49
DE-22761 Hamburg

Germany


T +49 40 851 93-0
F +49 40 851 93 256

Mirion Technologies Shanghai
Branch
Room 801, 78 Jiangchang
San Lu, Zhabei District
Shanghai 200436

China

T +86 21 6180 6920
F +86 21 6180 6924

www.mirion.com

154572EN-E

DESCRIPTION

Two-color electroluminescent diode used as ON/OFF
and data exchange indication

Two-color electroluminescent diode for READY/BUSY
indication

Two-color electroluminescent diode for ACCESS/
NO ACCESS indication

1 female connector, 2 x 13-pins, 1.27 mm pitch, for
accessory options (4 digital inputs, 4 digital outputs,
power supply)

Upgradeable Firmware

Multi antennas (x3) for better (adaptative) communica-
tion with dosimeters

ELECTRICAL CHARACTERISTICS

Self powered through USB port

EMC: complies with and exceeds standards

compliant (CE certificate: 151508)

MECHANICAL CHARACTERISTICS

LDM 320D
Length:

109 mm

(4.3 in)

Width:

100 mm

(3.9 in)

Depth:

29 mm

(1.1 in)

Weight:

150 gr

(5.3 oz)

LDM 320W
Length:

157 mm

(6.2 in)

Width:

99 mm

(3.9 in)

Depth:

75 mm

(2.9 in)

Weight:

400 gr

(14.1 oz)

ENVIRONMENTAL CHARACTERISTICS

Operating temperature: 0°C to +50°C (32°F to 122°F)

Storage temperature: -10°C to +60°C (+14°F to 140°F)

Humidity: 90% HR (without condensation)

IP LDM 320D: IP52

IP LDM 320W: IP30

COMMUNICATION WITH DOSIMETERS

Short range high frequency bidirectionnal data
exchange at 125 kHz

Nominal range: LDM 320D

DMC 2000 / SOR: 25 cm* (9.8 in) maximum

DMC 3000: 5 cm (1.9 in) maximum

* The low range configuration reduces the range of
communication of about 5 cm (1.9 in)

LDM 320 & LDM 320 W

Active Dosimetry - Dosimeters

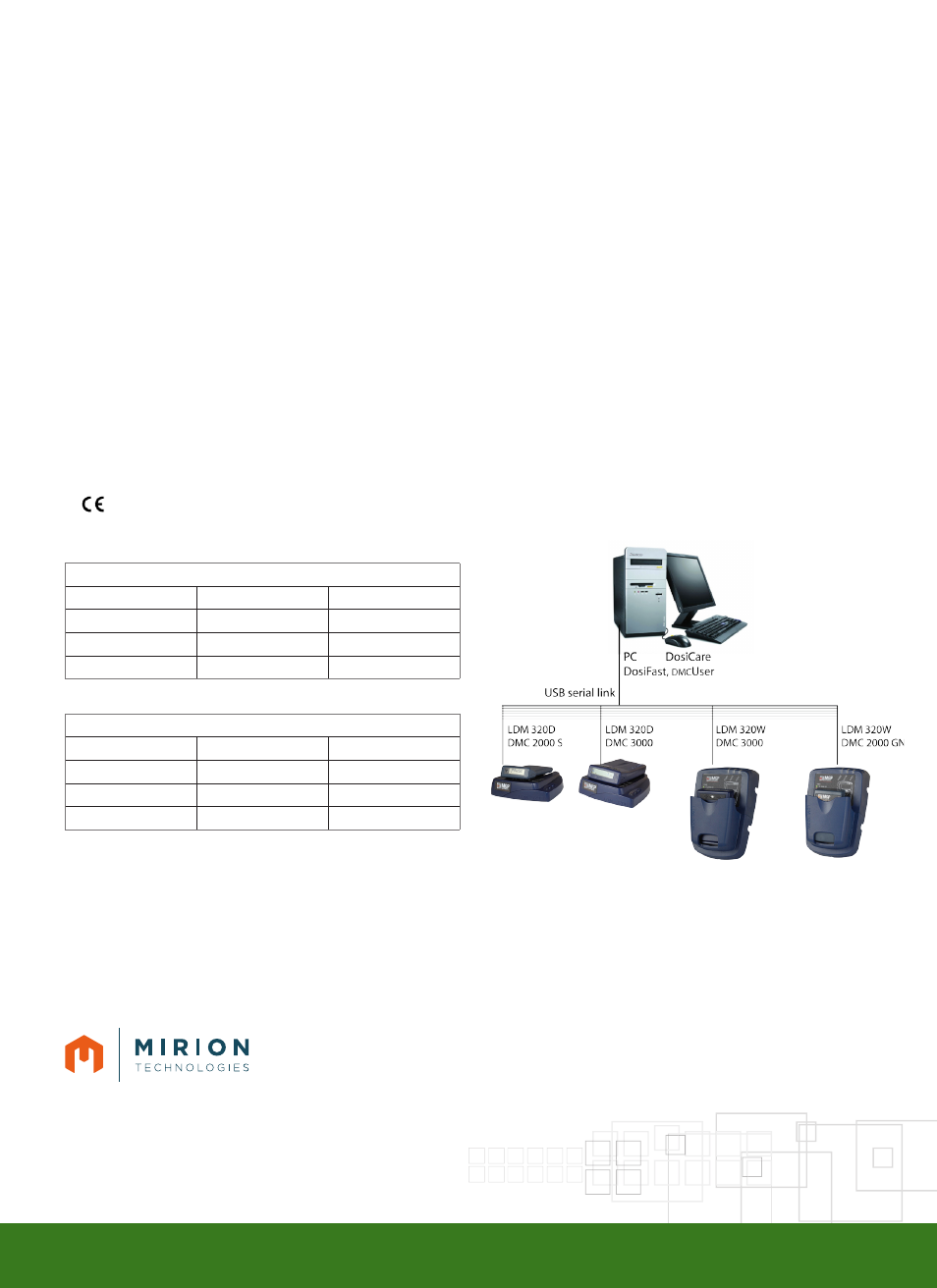

PC WITH OPERATIONAL SOFTWARE
