Chapter 3: About Your RAID Controller
●
19
About the Adaptec 4800SAS
The Adaptec 4800SAS is a SAS RAID controller with these features:
Note:
Although this controller has an onboard speaker, you can connect it to an internal
speaker with these specifications: 3.0 V, 90.0 mA. The internal speaker is not required, as the
onboard speaker volume is appropriate for most environments.
Bus compatibility
PCI-X, 3.3V
Maximum bus width
64-bit
Maximum bus speed
133 MHz
I/O processor clock frequency
500 MHz
Standard cache
128 MB DDR2
1
1
256 MB also available
Maximum number of disk drives
8 (or up to 100 with expanders)
External Connector
mini-SAS 4x multilane (SFF-8470)
Internal Connector
2x SAS 4x multilane (SFF-8484)
Battery backup module
Adaptec Battery Module 600 (sold separately—see
)
Audible alarm
Yes

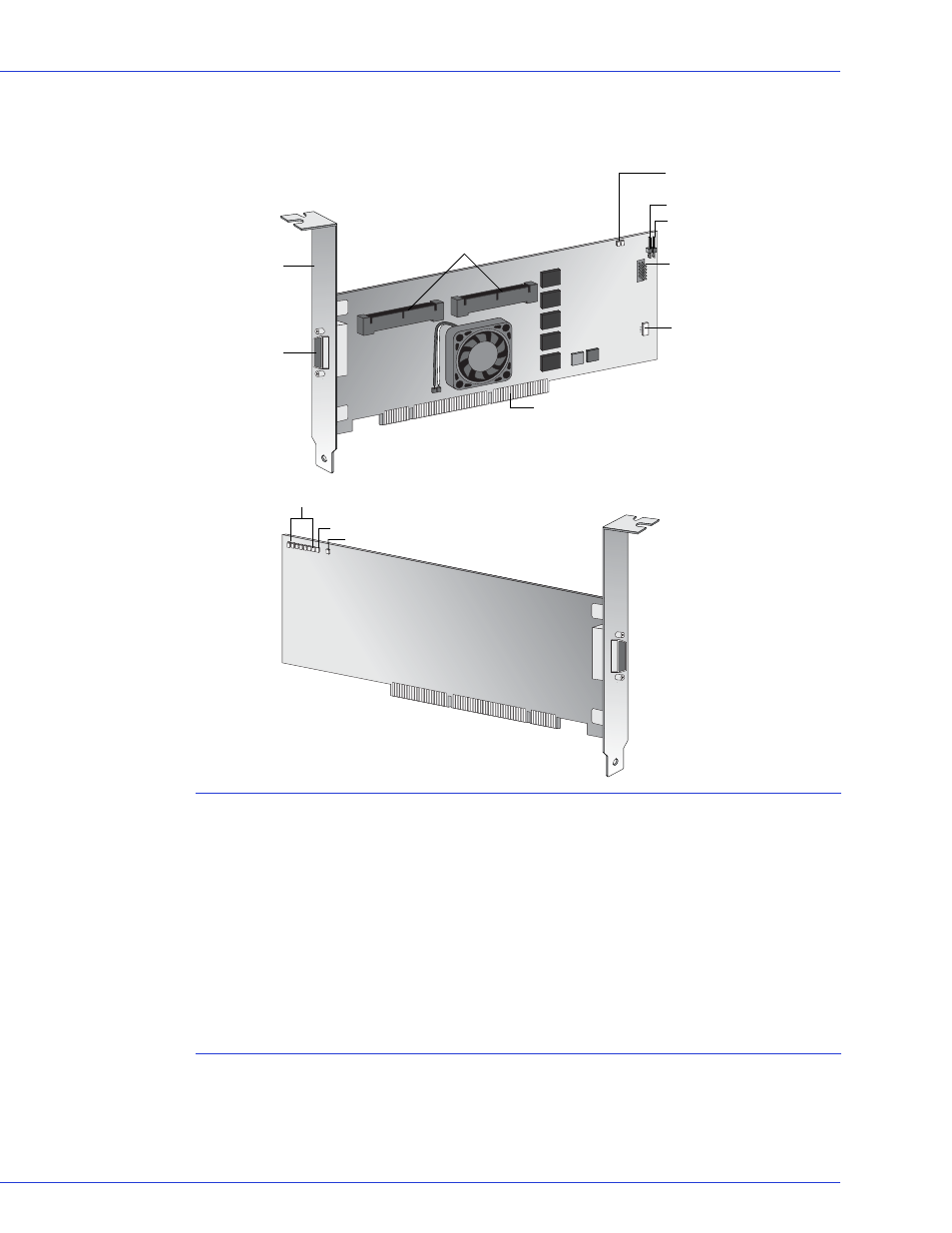

PCI-X connector
1 external
SAS
connector
Mounting
bracket
Mode 0 Flash connector
Battery connector
Activity LED connector
(top 2 left/right pins)
Two 4-wide internal
SAS connectors
Alarm connector
Charge LED
(for battery backup module)
Power LED
Activity LED
Diag LED
Back side of Controller
