Max Machinery, Inc. G Series User Manual © Copyright 2013
Rev. 001Q4
The G Series is not designed for user repair and all such work should be done at the factory or under the direct
supervision of the Max Technical Service Department. Unauthorized repair work may damage the meter and will void the
product warranty. Please make note of model and serial numbers on the flow meter before calling the factory. A return
goods authorization number will be issued if the flow meter has to be sent back for repair.
Max Machinery, Inc.
Phone: 707-433-2662
33A Healdsburg Ave
Fax: 707-433-1818
Healdsburg, CA 95448
www.maxmachinery.com
Contact for Repairs
& Calibration Services
Optional Heater Block Details
Temperature probe holes (all models)
1/8" NPT
1/16" NPT
Liquid trace ports
G004, G015
1/4" NPT
G045, G105
3/8" NPT
G240 (Qty 2)
3/8" NPT
Electric Cartridge requirements
G004
3/8" x 1"
G015
3/8" x 1.3"
G045
1/2" x 2.1"
G105
1/2" x 3.1"
G240 (Qty 2)
1/2" x 4.7"

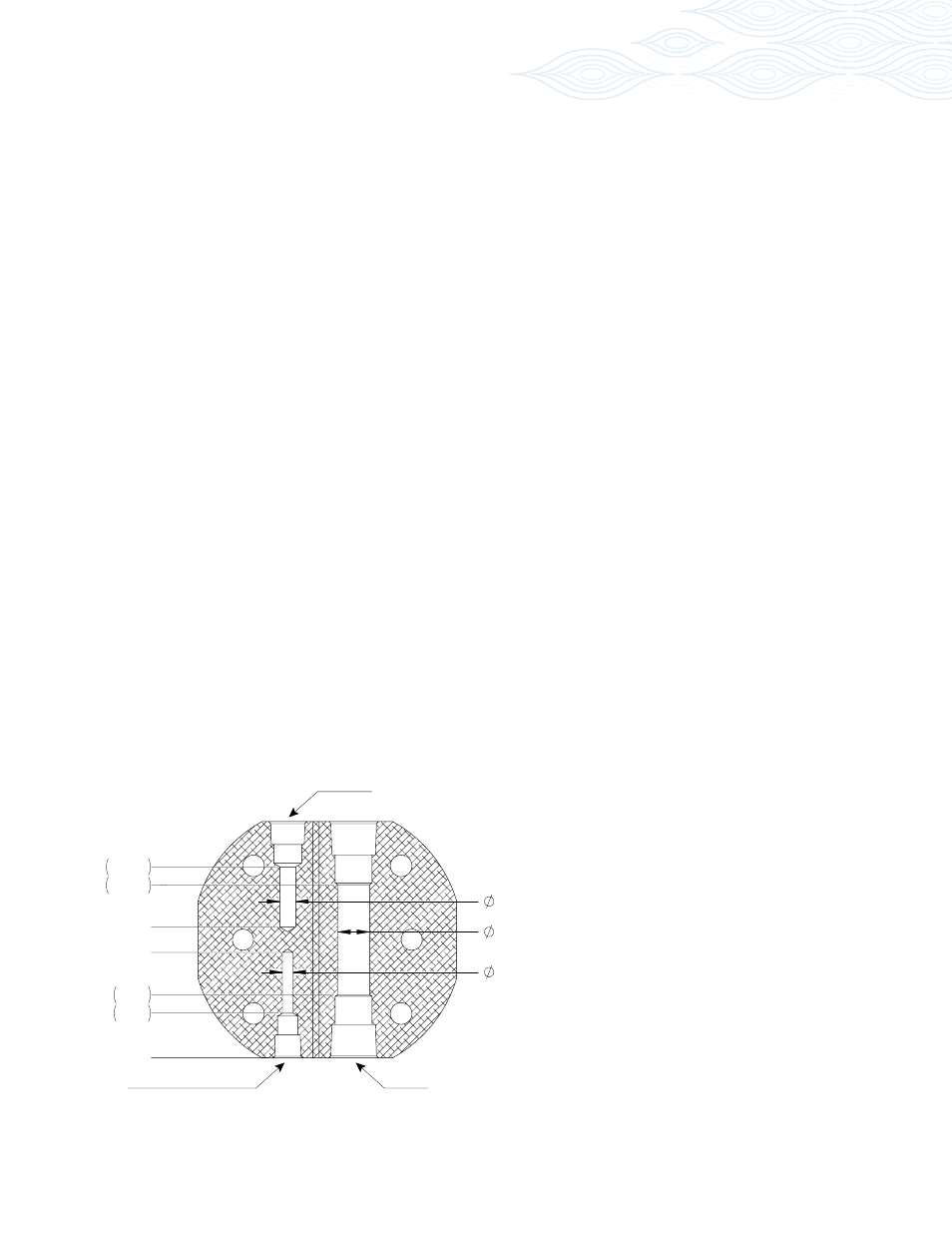

Heater block for G015
(typical)
.1895±.0025
.1275±.0025
.376
±.001
0
.749
1.25
1.55
2.051
.529
2.262
NOTES:
1: HEATER PORT CLEARANCE IS FOR A PROBE WITH 250 WATT/DENSITY MAX AT 400º F
1/16” NPT
1/8” NPT
1/4” NPT (2 places)
