Electrical installation - wiring, Frequency single phase, Current sinking* wiring (models 29x-6xx) – Max Machinery G240 Gear Flow Meter User Manual

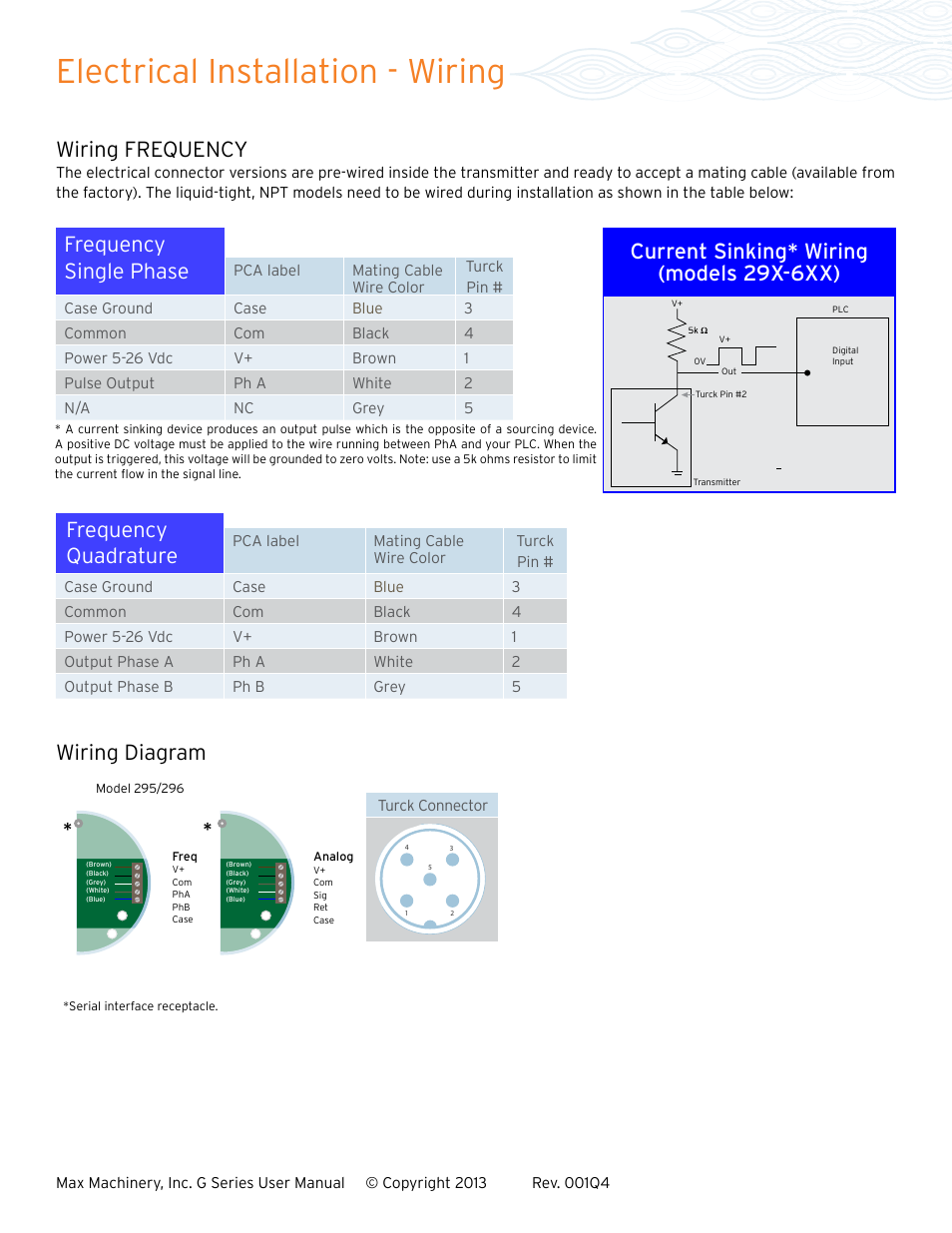

Page 13: Frequency quadrature, Wiring frequency, Wiring diagram, Frequency single phase wiring

Text mode
Original mode

Electrical installation - wiring, Frequency single phase, Current sinking* wiring (models 29x-6xx) | Frequency quadrature, Wiring frequency, Wiring diagram, Frequency single phase wiring | Max Machinery G240 Gear Flow Meter User Manual | Page 13 / 20
