27
6. MAINTENANCE
1 Regularly inspect the tool
In order to maintain the performance of the
tool, periodically clean up and inspect the
tool.
2 Do not lubricate the equipment
Absolutely do not lubricate this equipment.
Applying lubrication will remove the grease
inside of the tool, and cause problem on the
tool.

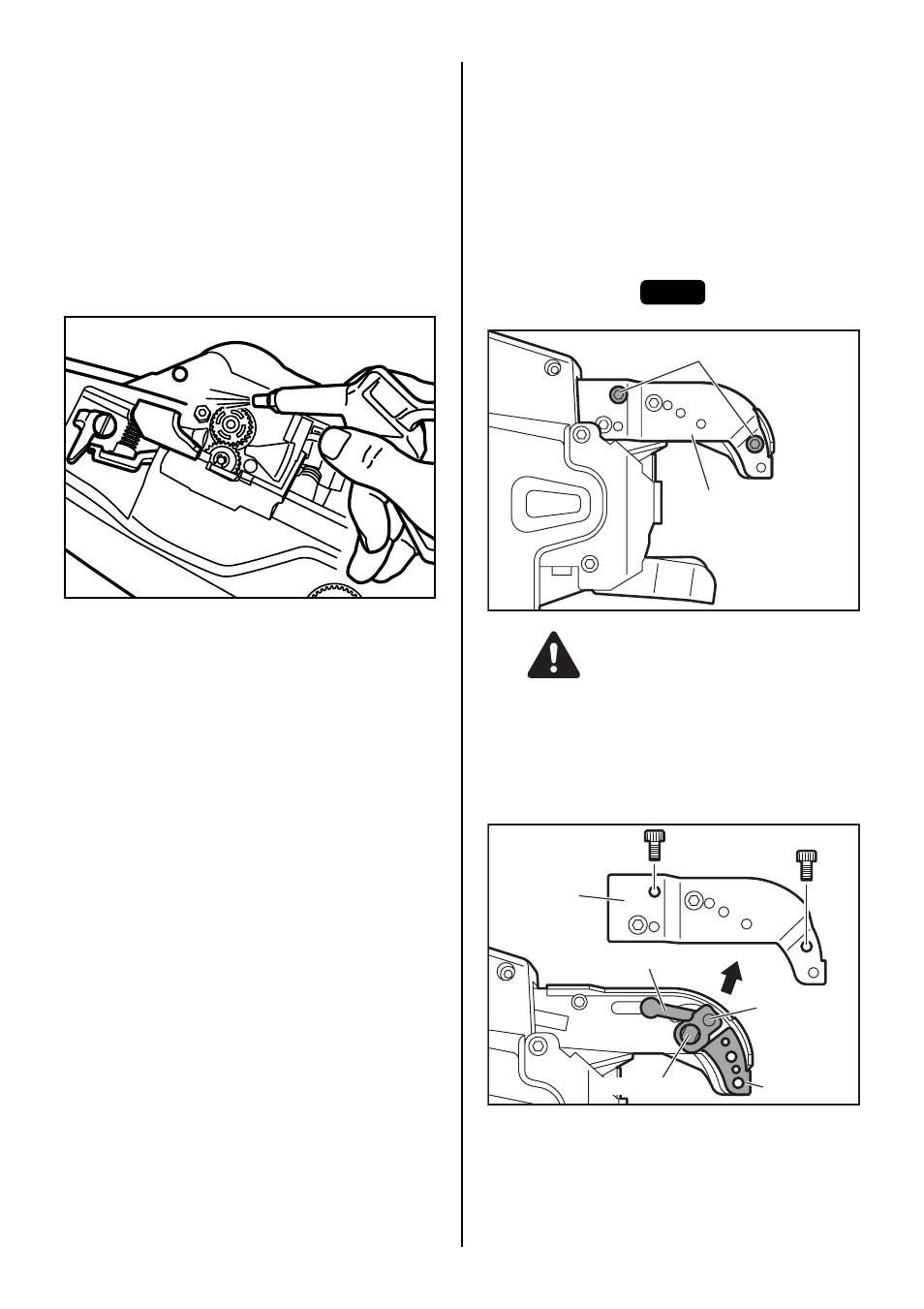

3 Regularly clean the feeding mechanism
In order to maintain the performance of the
tool, periodically clean up the mechanism
around the feed gear. Using the Air Duster or
like, blow the dust and the iron sand off
around the feed gear.
7. CLEANING MANUAL
When the machine operates for long hours, dust
and wire cuttings may adhere to the cutter sec-
tion. In such a case, disassemble and clean the
machine according to the following procedure.
(If a wire is caught in the cutter section or wire
guide A, the wire can be removed according to
the same procedure.)
Disassembling
• Do not remove the 2 uncoated bolts.
1. Loosen the 2 (plated) hexagon socket
head bolts M3
× 6.
2. Remove arm B and the 2 (plated) hexagon
socket head bolts M3
× 6.
RB397
Hexagon socket head bolt M3
× 6
(plated)
Arm B
CAUTION
Hexagon socket head
bolt M3
× 6 (plated)
Cutter plate unit
Arm B
Cutter
Fixed cutter Wire guide A
