3. SPECIFICATIONS AND TECHNICAL DATA

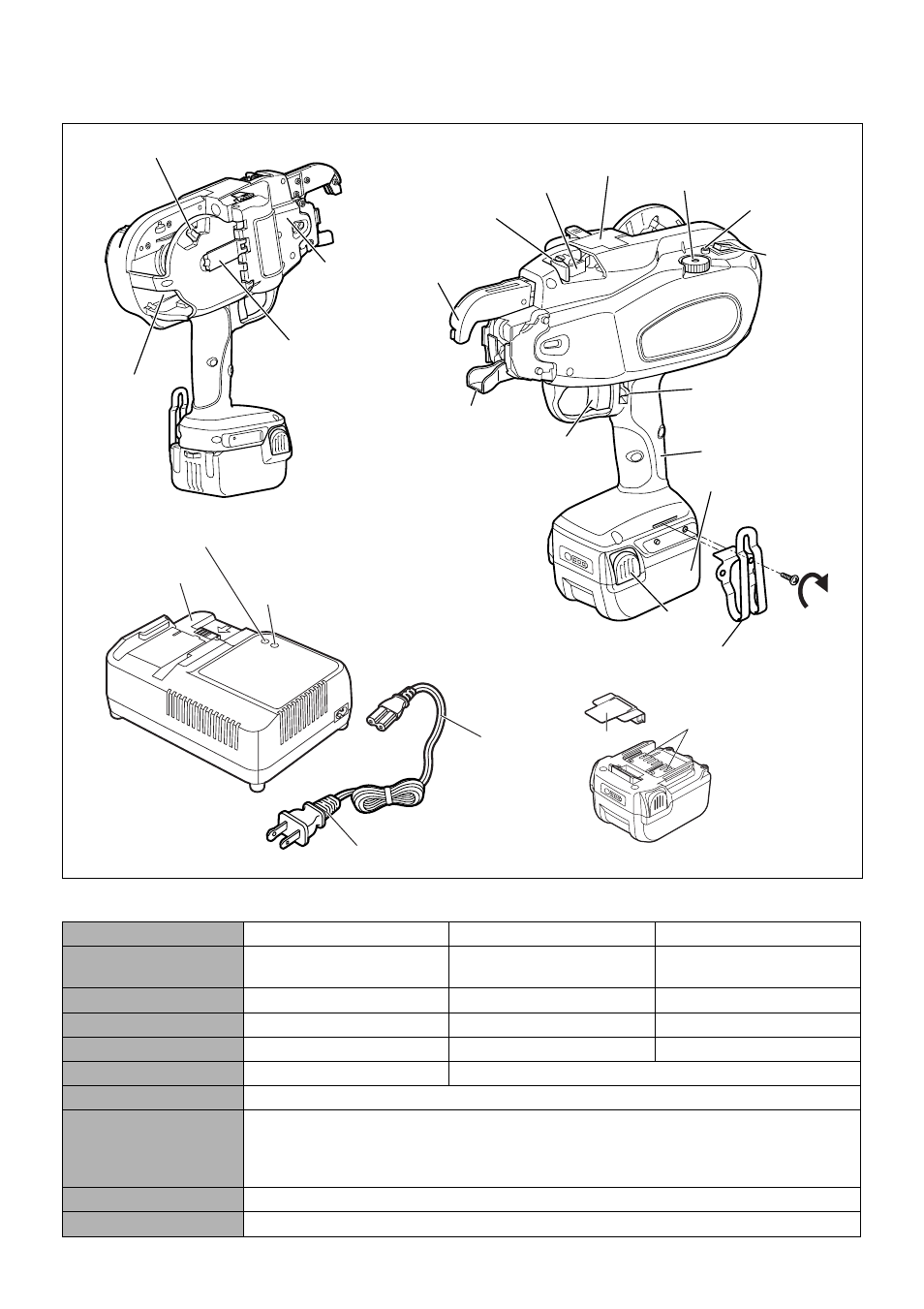

1. NAME OF PARTS
2. TOOL SPECIFICATIONS
PRODUCT NO. RB517 RB397 RB217
WEIGHT 5.3lbs (2.4kg) (Battery in-
cluded) 5.3lbs (2.4kg) (Battery in-
cluded) 5.3lbs (2.4kg) (Battery in-
cluded)
HEIGHT 12" (305mm) 12" (305mm) 12" (305mm)
WIDTH 4-1/8" (105mm) 4-1/8" (105mm) 4-1/8" (105mm)
LENGTH 12" (305mm) 11-3/8" (290mm) 10-5/8" (270mm)
WRAPS PER TIE 3 or 4 Wraps/tie 3 Wraps/tie
BATTERY Li-ion14.4V/(JPL91430A)
ACCESSORIES Battery pack JPL91430A (2pc.)
Battery Charger JC
925
Carrying case, Belt hook
Instruction video and instruction manual DVD
Operating temperature 14°F to 104°F (-10°C to 40°C)
Humidity 80% RH or less
Window
Release lever
Release stopper
Arm
Curl guide
Trigger
Latch
Battery pack
(JPL91430A)
Grip
LED
Torque and wrap dial(RB517)
Torque dial (RB397)
Feed dial (RB217)
Trigger lock
Reel stopper
Tie-Wire
Reel holder
Terminal
Pack cap
Battery pack (JPL91430A)
Belt hook
Battery pack
entry point
LED lamp (Orange)
Charging status indicator lamp
LED lamps (Red and Green)
Charging status indicator lamps
Power cord
Power plug
Power cord of JC925 is removable from the charger.
Tightening
Torque
13.1lbF·inch
(150cNm)
Production
number
Main
switch
