19

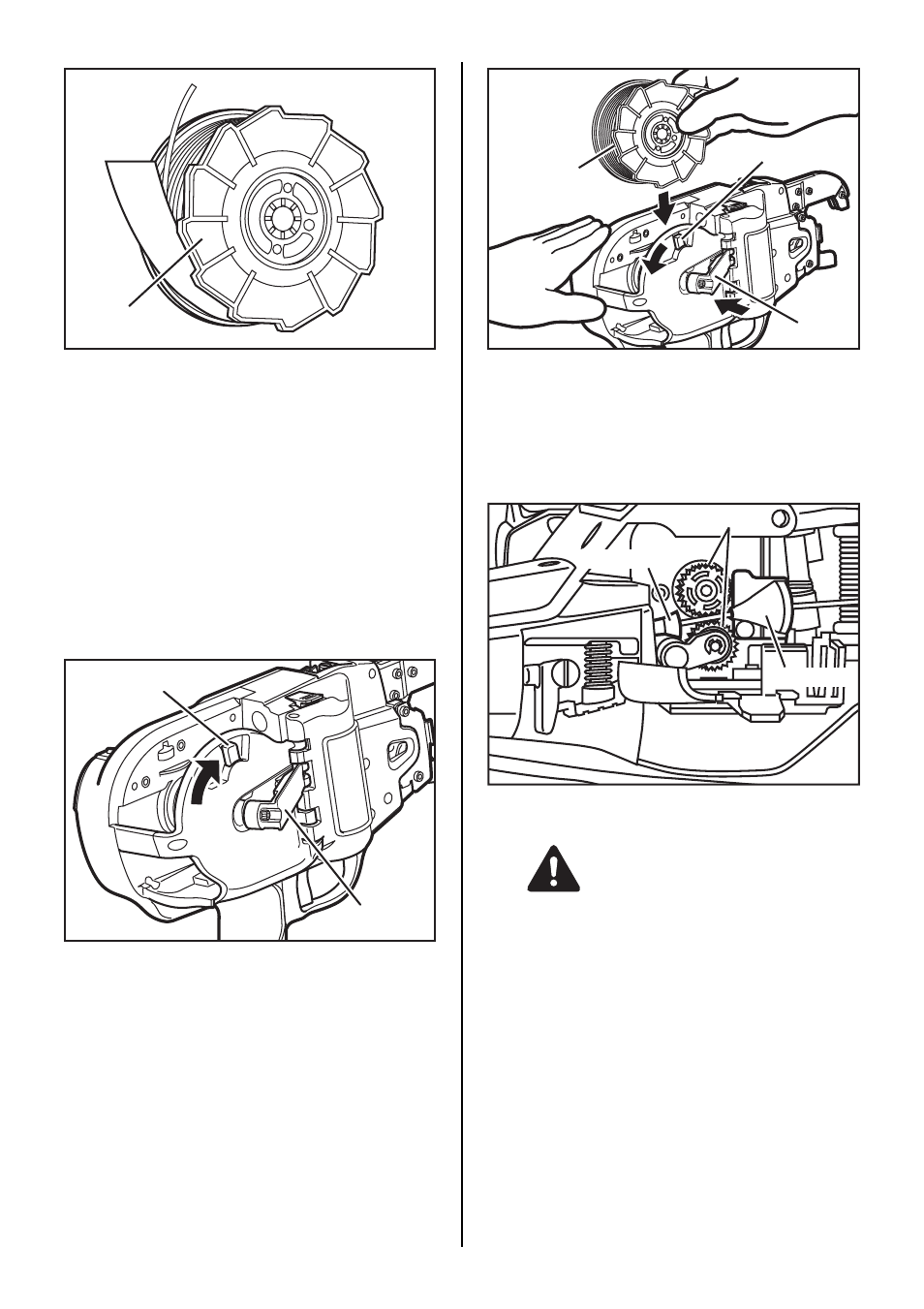

2 Peel off the tape fixing Tie-Wire by about
2" (5cm). Stretch out the tip of the wound
Tie-Wire.
BE SURE TO USE ONLY THE SPECIFIED TIE-
WIRE (MAX TW897A).
The use of binding wire that has not been speci-
fied may cause breakdown of this equipment.
Therefore, be sure only to use the specified MAX
TW897A. Do not use binding wire that has be-
come rusted, since the use of rusted wire will
cause equipment breakdown.
∗ TW897, old wire reel cannot be used.
3 Push the reel stopper to release the reel
holder.
4 Set the Tie-Wire in the tool by matching the
side of the Tie-Wire as shown in the picture.
Then slide the Reel stopper so that the Reel
Holder can be pushed in the Reel. Then
push the Reel Holder and fix it by sliding the
Reel stopper.
5 Insert the tip of the stretched out Tie-Wire
into the Wire Guide. Then put it into the Pipe.
• Put the Wire around 4" (10cm) inside the
Pipe.
• The tip of the Tie-Wire should be straight-
ened out to allow it to pass through the wire
feeding mechanism.
When mounting the Tie-Wire, the wire may
become jammed inside the machine if the
wire tip is bent.
Tie-Wire
Reel stopper
Reel holder
Tie-Wire
Reel
holder
Reel Stopper
Feeding gears
Wire guide
Pipe
WARNING
