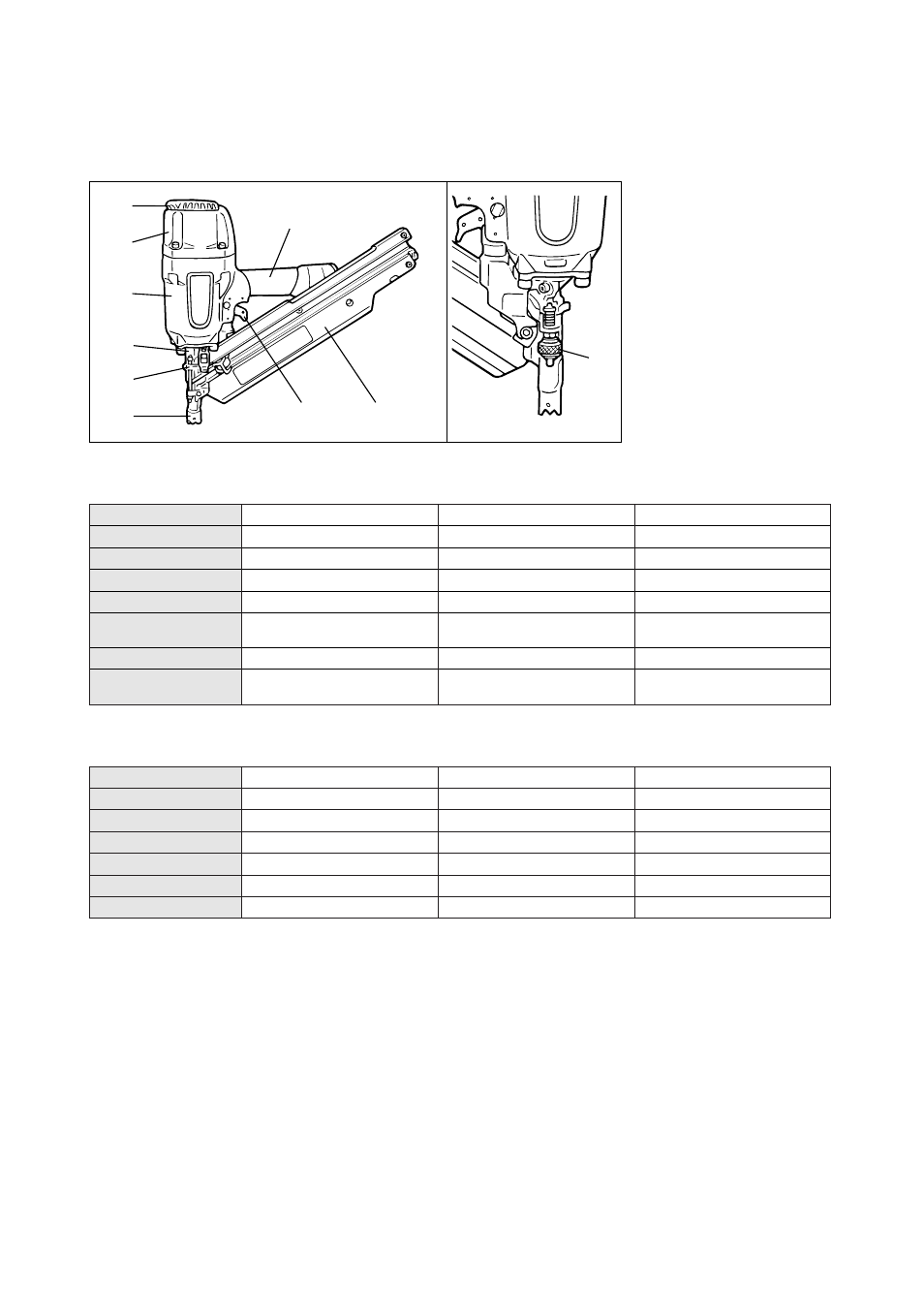

2. SPECIFICATIONS AND TECHNICAL DATA

1. NAME OF PARTS

q Frame
w Cylinder Cap
e Contact Arm
r Nose
t Magazine
y Trigger
u Grip
i Exhaust Cover
o Adjustment dial
!0 Door

i

u

w

q

r

e

!0

y

t

o

PRODUCT NO.

SN890CH/34

SN890CH/28

SN890RH, SN890RH-R

HEIGHT

14-3/4˝ (374 mm)

14-3/4˝ (374 mm)

14-1/8˝ (359.2 mm)

WIDTH

4˝ (102 mm)

4˝ (102 mm)

4˝ (102 mm)

LENGTH

17˝ (436 mm)

16-7/8˝ (429 mm)

21-3/8˝ (542 mm)

WEIGHT

8.0 lbs. (3.63 kg)

8.0 lbs. (3.63 kg)

8.0 lbs. (3.63 kg)

RECOMMENDED

70 to 100 p.s.i. (5 to 7 bar)

70 to 100 p.s.i. (5 to 7 bar)

70 to 100 p.s.i. (5 to 7 bar)

OPERATING PRESSURE

LOADING CAPACITY

90 Nails

75 Nails

64 Nails

AIR CONSUMPTION

1.78

Rat 90 p.s.i. (6 bar)

1.78Rat 90 p.s.i. (6 bar)

1.78Rat 90 p.s.i. (6 bar)

operating pressure

operating pressure

operating pressure

PRODUCT NO.

SN890CH/34

SN890CH/28

SN890RH, SN890RH-R

NAIL LENGTH

2˝ to 3-1/2˝ (50 to 90 mm)

2˝ to 3-1/2˝ (50 to 90 mm)

2˝ to 3-1/2˝ (50 to 90 mm)

SHANK DIAMETER

.113˝ to .148˝ (2.9 to 3.8 mm)

.113˝ to .130˝ (2.9 to 3.3 mm)

.113˝ to .148˝ (2.9 to 3.8 mm)

SHANK TYPE

Smooth, Ring, Screw

Smooth, Ring, Screw

Smooth, Ring, Screw

HEAD DIAMETER

.256˝ to .303˝ (6.5 to 7.7 mm)

.275˝ to .303˝ (7.0 to 7.7 mm)

.267˝ to .295˝ (6.8 to 7.5 mm)

COLLATION ANGLE

34 degree

28 degree

21 degree

HEAD

Clipped head

Clipped head

Full round head

2. TOOL SPECIFICATIONS

TOOL AIR FITTINGS:

This tool uses a 3/8˝ N.P.T. male plug. The inside diameter should be .39˝ (9.9mm) or larger. The fitting must be capable of
discharging tool air pressure when disconnected from the air supply.

RECOMMENDED OPERATING PRESSURE:

70 to 100 p.s.i. (5 to 7 bar). Select the operating air pressure within this range for best fastener performance.
DO NOT EXCEED 120 p.s.i. (8 bar).

3. FASTENER SPECIFICATIONS
