13

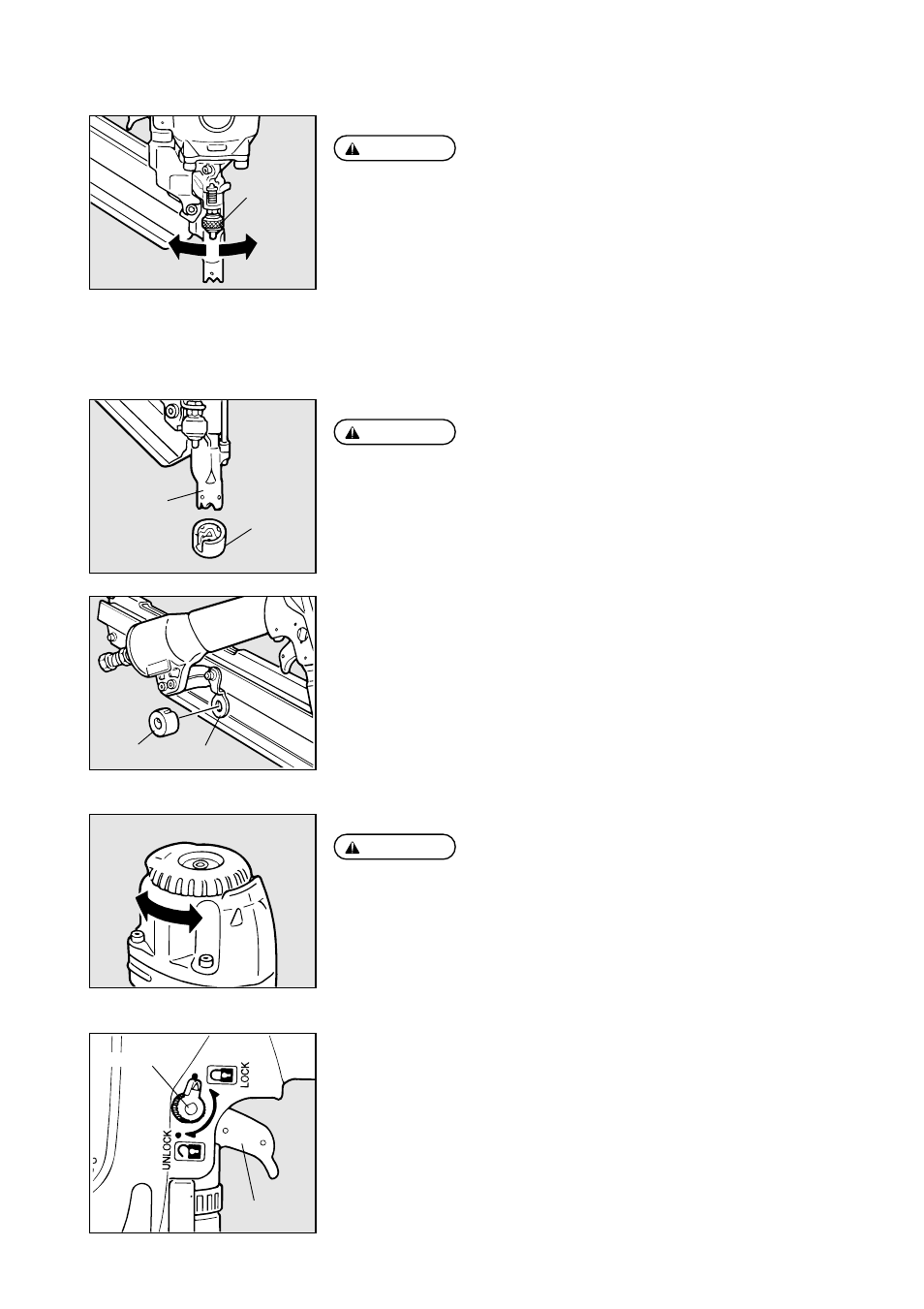

DRIVING DEPTH ADJUSTMENT

ALWAYS disconnect air supply before making adjustment.

The driving depth adjustment is made by adjusting the contact arm “B”.

q With air pressure set, drive a few nails into a representative material sample to

determine if adjustment is necessary.

w If adjustment is required, disconnect air supply.

e Refer to the mark on the contact arm for direction to turn the adjustment dial.

r Re-connect air supply.

DIRECTIONAL EXHAUST COVER

ALWAYS disconnect air supply before rotating the exhaust cover.

Direction of the exhaust air is changeable by rotating exhaust cover by hand.

CONTACT TIP (OPTION)

ALWAYS disconnect air supply before attaching / detaching the contact tip.

Attach the contact tip on the tip of contact arm “B”, when driving nails to a soft material.

The contact tip can be kept at the tail hanger when not using.

WARNING:

WARNING:

WARNING:

Adjustment dial

Deeper

Shallow

Contact arm “B”

Contact tip

Tail hanger

Contact tip

TRIGGER LOCK MECHANISM
The tool is equipped with a trigger lock mechanism. Push and rotate the trigger LOCK
to the trigger UNLOCK position before driving nails.

Trigger lock dial

Trigger
