Model 1 User Guide 5
Installation

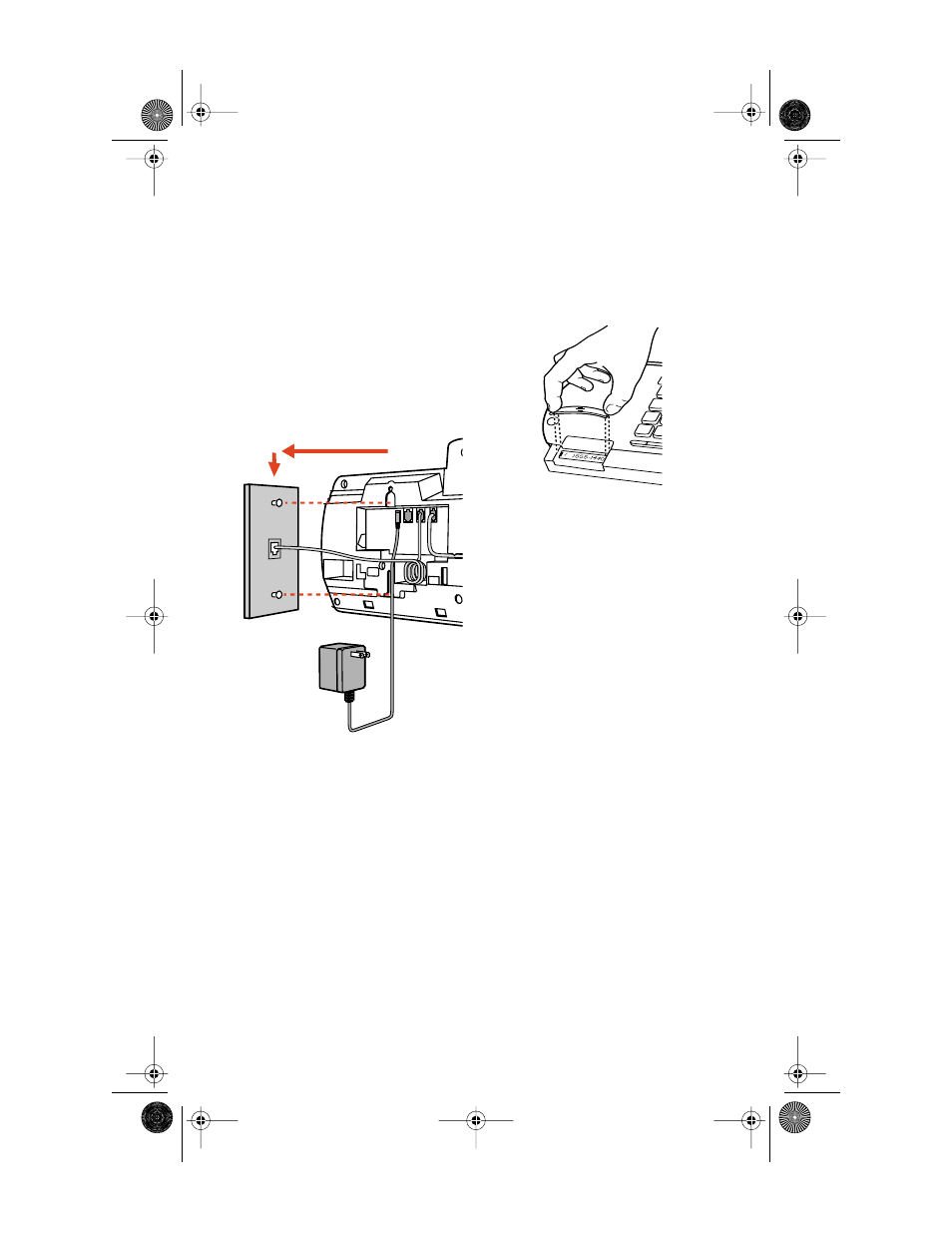

6. Install on a wall
To install the Model 1 on a wall:
Connect the cord to the wall jack
(A). Coil the phone cord into the
space provided on the back of the
phone (B). Then align the telephone
so the hooks on the wall plate (C)
align with the wall-mount slots on
the back of the phone, as shown
here. Push the phone onto the pegs,
then slide it down until it is secure
(D). Plug the power adaptor into a
power outlet (E).
Note: You should connect the
power adaptor to a surge pro-
tector or power bar.
7. Insert number card
Write your telephone number on
the number card, and place it into
the card slot on the telephone,
located under the mouthpiece in the
handset cradle. Gently bend the
clear plastic lens into the slot, over
the number card.
8. Customize the telephone
Follow the instructions in the
section “Customizing your phone”
to customize your Model
1
telephone.
A
B
C
D
E
