4. INSTRUCTIONS FOR OPERATION
Read section titled "SAFETY INSTRUCTIONS".
1. BEFORE OPERATION
X Wear Safety Glasses or Goggles.
Y Do not connect the air supply.
Z Inspect screw tightness.
[ Check operation of the contact arm & trigger if moving smoothly.
\ Connect the air supply.
] Check the air-leakage. (The Tool must not have the air-leakage.)
^ Hold the Tool with finger-off the trigger, then push the contact arm against the work-piece.
(The tool must not operate.)
_ Hold the Tool with contact arm free from work-piece and pull the trigger. (The Tool must
not operate.)
` Disconnect the air supply.
WARNING: 2. OPERATION
WEAR SAFETY GLASSES OR GOGGLES
!
Danger to the eyes always exists due to the possibility of dust being blown up by the
exhausted air or of a fastener flying up due to the improper handling of the tool. For these
reasons, safety glasses or goggles shall always be worn when operating the tool.
The employer and/or user must ensure that proper eye protection is worn. Eye protection
equipment must conform to the requirements of the American National Standards Institute,
ANSI Z87.1 (Council Directive 89/686/EEC of 21 DEC. 1989) and provide both frontal and
side protection.
The employer is responsible to enforce the use of eye protection equipment by the tool
operator and all other personnel in the work area.
NOTE:
Non-side shielded spectacles and face shields alone do not provide adequate
protection.
WARNING:
Keep hands and body away from the discharge outlet when driving the fasteners because of
dangerous of hitting the hands or body by mistake.
!

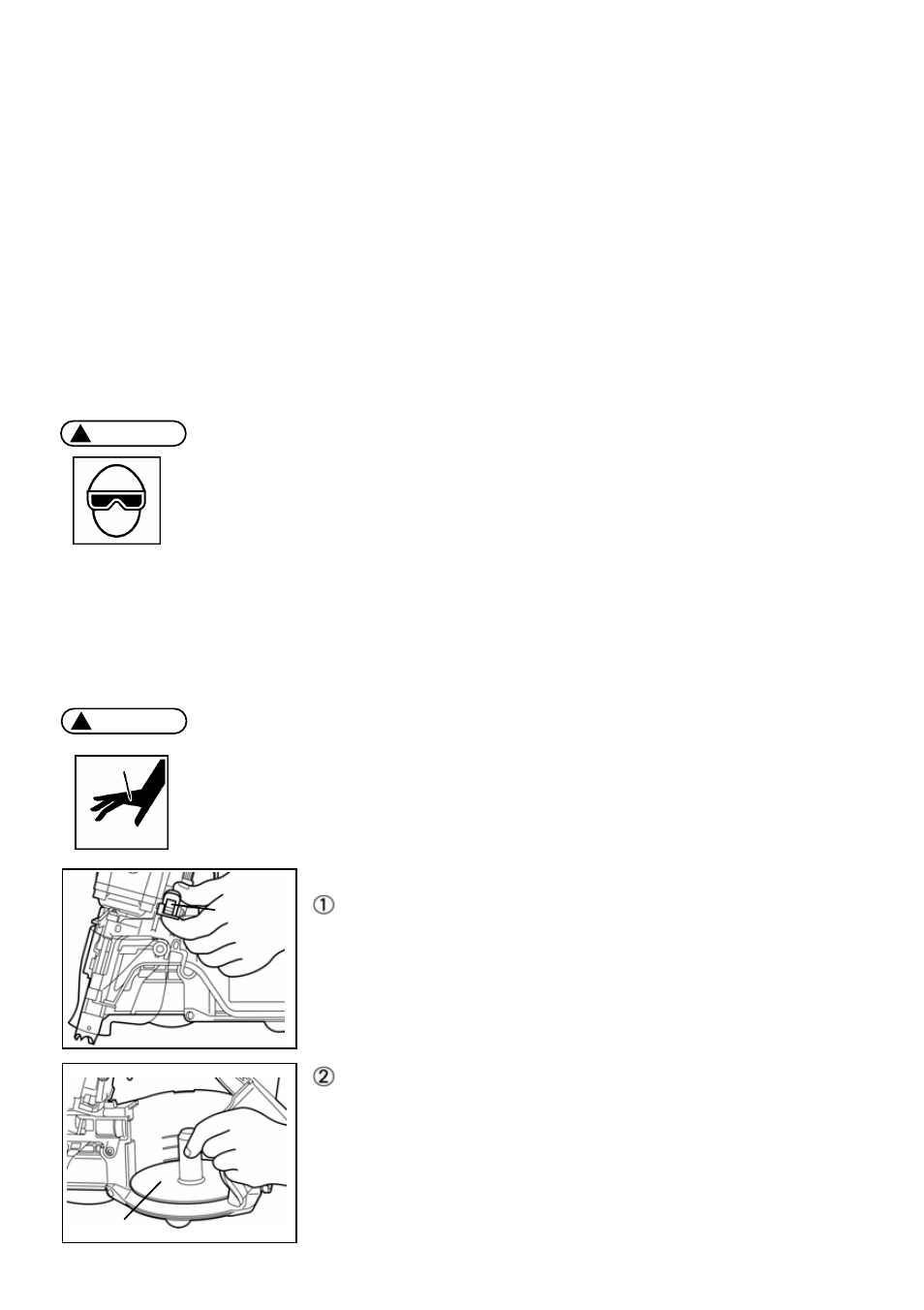

NAIL LOADING
Open the Magazine:
Pull up Door Latch and swing Door open. Swing Magazine Cover
open.
Door Latch
Nail Support
Magazine
Check adjustment:
The Nail Support can be moved up and down to four settings. To
change setting pull up on the Nail Post and twist to the correct
step. The Nail Support should be adjusted correctly to the position
indicated in inches and millimeters inside Magazine.
10
