2. SPECIFICATIONS

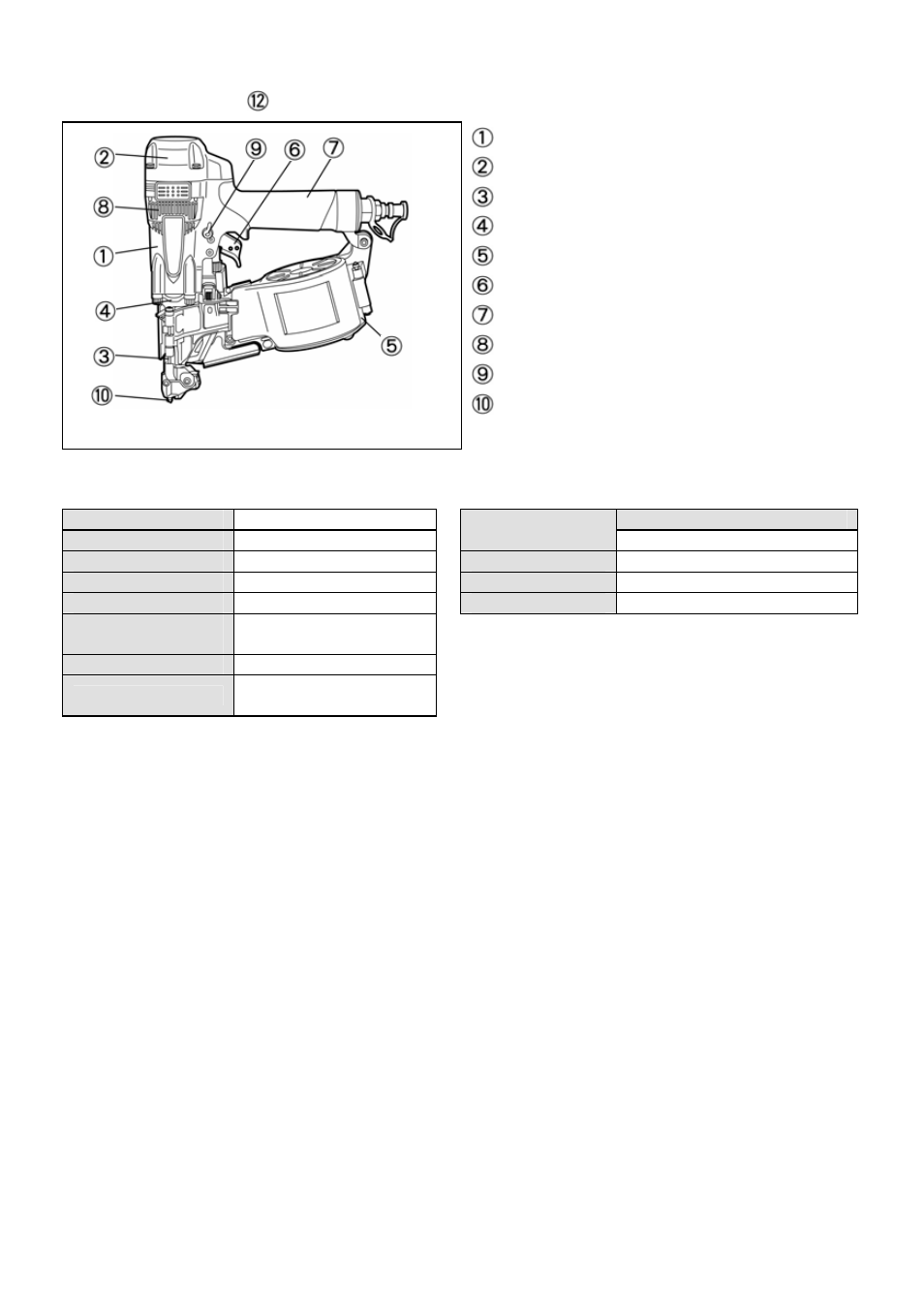

1. NAME OF PARTS
Frame
Cylinder Cap
Contact Arm
Nose
Magazine
Trigger
Grip
Exhaust Cover
Trigger Lock Dial
Aiming Guide Locator
2. TOOL SPECIFICATIONS 3. FASTENER SPECIFICATIONS
PRODUCT NO. HN65J PLASTIC SHEET COLLATED
HEIGHT 11-1/2” (291 mm)
NAIL LENGTH
1-1/2” to 2-1/2” (40 to 65 mm)
WIDTH 4” (102 mm) SHANK DIAMETER .131” to .162” ( φ3.3 to φ4.1 mm)
LENGTH 11-1/2” (291 mm) SHANK TYPE Smooth
WEIGHT 4.4 lbs. (2.0 kg) HEAD DIAMETER .283” ( φ7.2 mm)
RECOMMENDED
OPERATING PRESSURE 170 to 320 p.s.i.
(12 to 23 bar)
LOADING CAPACITY 100 Nails
1.4 ℓ at 257 p.s.i. (18 bar)
operating pressure
AIR CONSUMPTION
RECOMMENDED OPERATING PRESSURE:
170 to 320 p.s.i. (12 to 23 bar). Select the operating air pressure within this range for best fastener performance.
DO NOT EXCEED 320 p.s.i. (23 bar).
4. TECHNICAL DATA
n
NOISE
A-weighted single-event ------ LWA, 1s, d 93.6 dB
sound power level
A-weighted single-event ------ LpA, 1s, d 86.2 dB
emission sound pressure
level at work station
These values are determined and documented in accordance to EN12549 : 1999.
o
VIBRATION
Vibration characteristic value = 5.66 m/s 2
These values are determined and documented in accordance to ISO 8662-11.
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when
using the tool. An influence to the hand-arm-system when using the tool will for example depend on the gripping
force, the contact pressure force, the working direction, the adjustment of mains supply, the workpiece, the
workpiece support.
5. APPLICATIONS
* Fastening metal connectors for wood construction.
