1 press the button on the trigger, 3 set the switching lever as above picture, Warning – MAX TA238A/18-6 User Manual
Page 9: 3 reconnect air supply
9
1

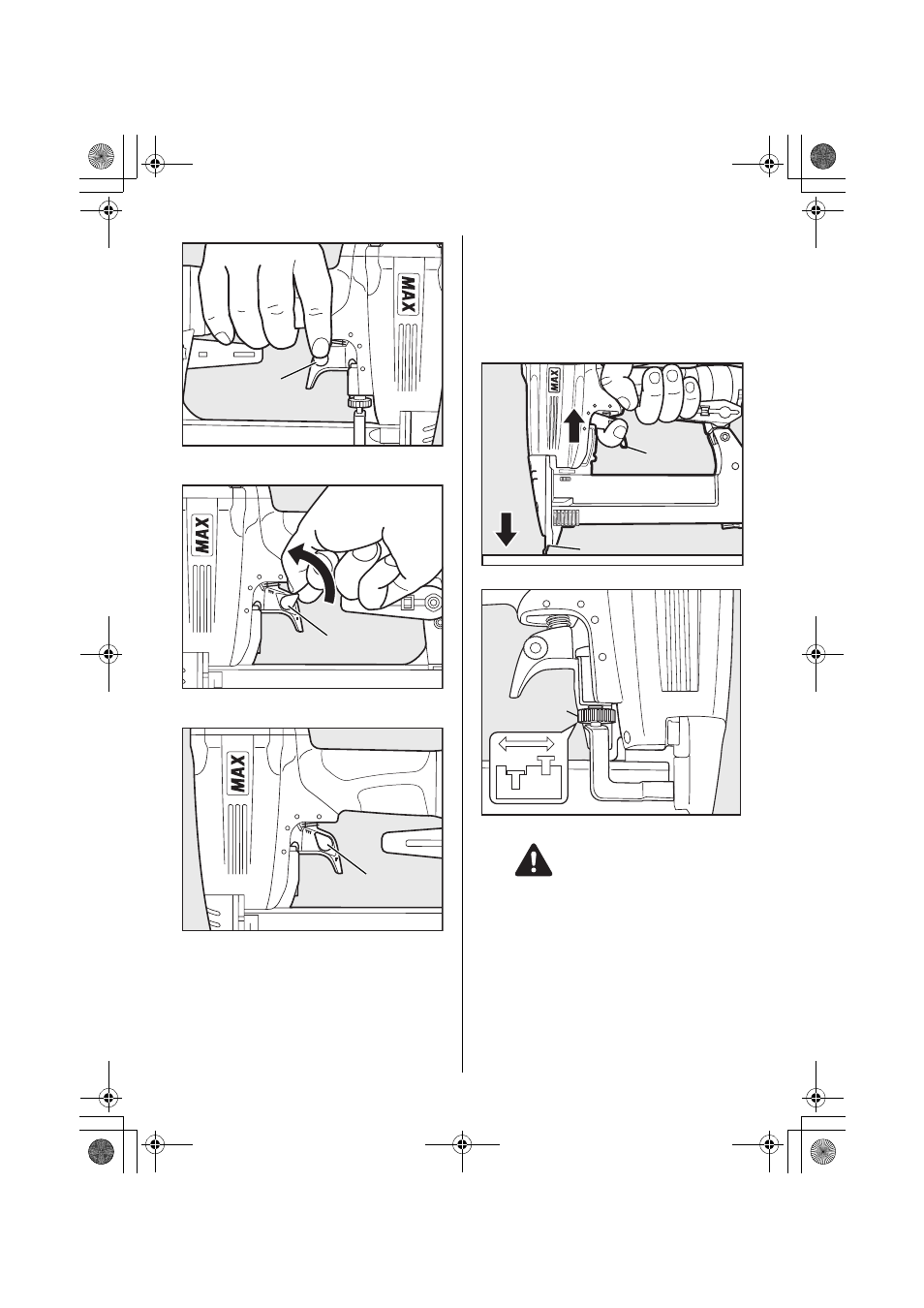

Press the button on the trigger.
2
Turn the switching lever in the direction of the arrow.
3
Set the switching lever as above picture.
CONTACT TRIP
The common operating procedure on "Contact Trip" tools is for
the operator to contact the work to actuate the trip mechanism
while keeping the trigger pulled, thus driving a fastener each time
the work is contacted.
All pneumatic tools are subject to recoil when driving fasteners.
The tool may bounce, releasing the trip, and if unintentionally al-
lowed to recontact the work surface with the trigger still actuated
(finger still holding trigger pulled) an unwanted second fastener
will be driven.
DRIVING DEPTH ADJUSTIMENT DIAL
ALWAYS-disconnect air supply before adjusting adjustment
dial.
1
If a Adjustment is required, disconnect air supply.
2
Refer to the figure for direction to turn the dial.
3
Reconnect air supply.
Button
Switching lever
Switching lever
Trigger
Contact arm
Adjustment dial
