ENGLISH
12
1
2

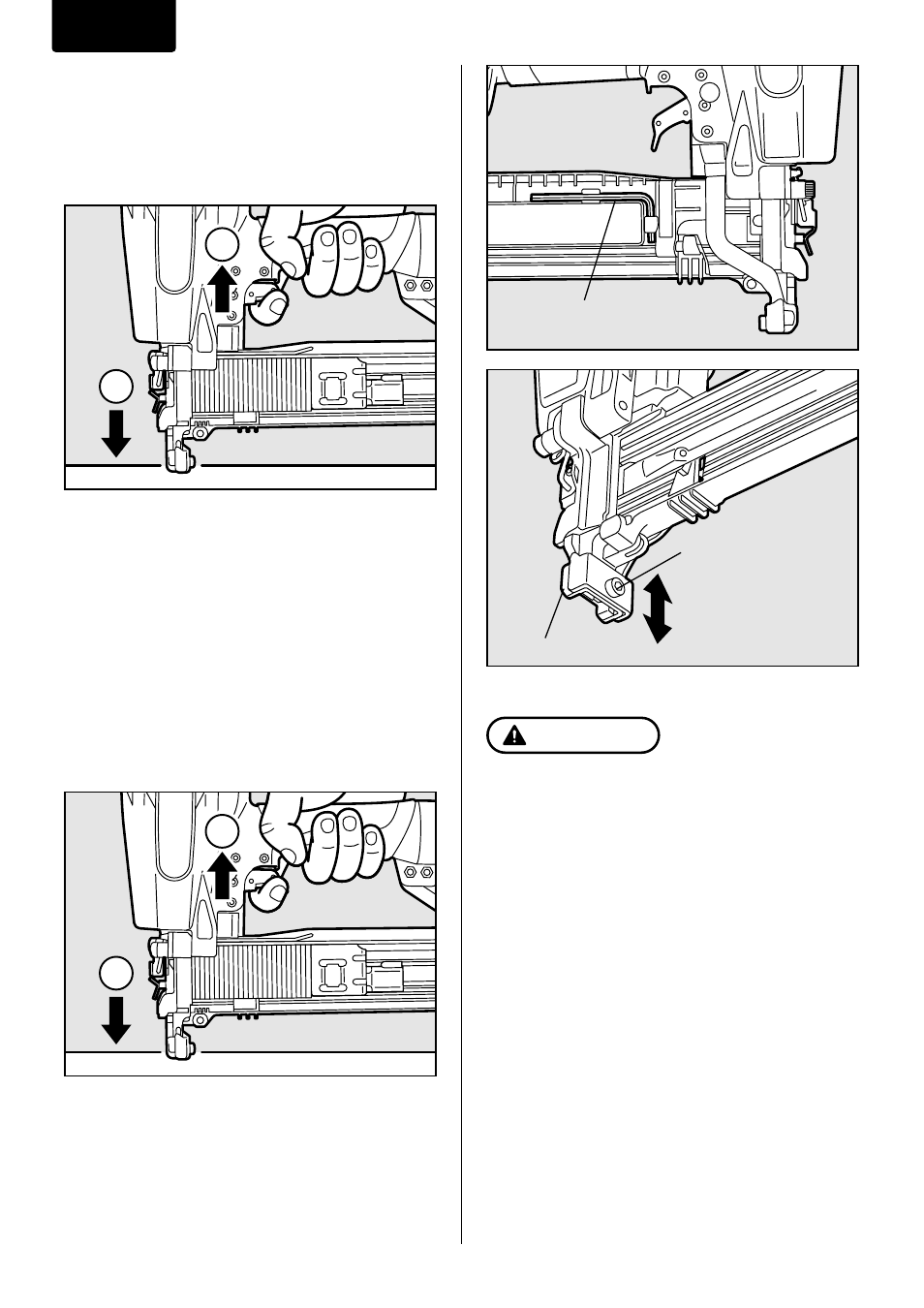

DRIVING FASTENERS
CONTACT FIRE OPERATION
(CONTACT TRIP)
For contact fire operation, hold the trigger and
depress the contact arm against the work surface.
PROCEDURE
q Hold the trigger.
w Depress the contact arm.
2
1
SINGLE FIRE OPERATION
(ANTI-DOUBLE FIRE MECHANISM AND
SEQUENTIAL TRIP)
For single fire operation, depress the contact arm
against the work surface and pull the trigger. Tool
can not fire a second fastener until the trigger is
released and tool can cycle.
PROCEDURE
q Depress the contact arm.
w Pull the trigger.
Screw M5 ×6
Up
Down Contact arm “B”
Hex. bar wrench
DRIVING DEPTH ADJUSTMENT
ALWAYS disconnect air supply before making
adjustment.
The driving depth adjustment is made by
adjusting the contact arm “B”.
q With air pressure set, drive a few staples into a
representative material sample to determine if
adjustment is necessary.
w If adjustment is required, disconnect air
supply.
e Take off hex. bar wrench set in the magazine.
The screw M5 ×6 is loosened to allow the
contact arm “B” to be moved up or down.
If the tool is “OVER DRIVING” (the staples is
driven below the work surface), the contact
arm “B” should be moved down slightly.
If staples “STICKING-OUT” (the staples is not
flush with the work surface), the contact arm
“B” should be moved up slightly.
Tighten screw M5
×6.
r Reconnect air supply.
WARNING
