Each retard circuit activates when
connected to a switched 12-volt source
and switched “ON.” Many types of
switches can be used such as a dash
mounted toggle switch, a push button
switch on the steering wheel (such
as a nitrous system switch), a switch on
the transmission shifter or an RPM
activated switch. It is not necessary to
switch “OFF” a previous stage for a
succeeding stage to override the previ-
ous stage. When all 12-volt sources for
the retard circuits are switched “OFF,”
the retard circuits revert to normal
ignition timing.
ORANGE/STAGE-1
YELLOW/STAGE-2
BROWN/STAGE-3
WHITE
RED
RED
BLACK
YELLOW
BLACK
GREEN
RING TERMINAL
CONNECTOR
PART NO. 450
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
MAGNETIC PICKUP
CONNECTOR
(NOT USED)
HYFIRE®
IGNITION
SYSTEM
(+) (–)
12V/BATTERY
GREEN
GREEN GREEN
BROWN
RED
PURPLE
BLACK
RED
IGNITION BALLAST
RESISTOR
12V / IGNITION
SWITCH
MALLOR
Y
PROMASTER
®
COIL
P
AR
T NP
. 28880
12V
P
AR
T NO.
618-3
3-ST
AGE
HIGH SPEED
RET
ARD

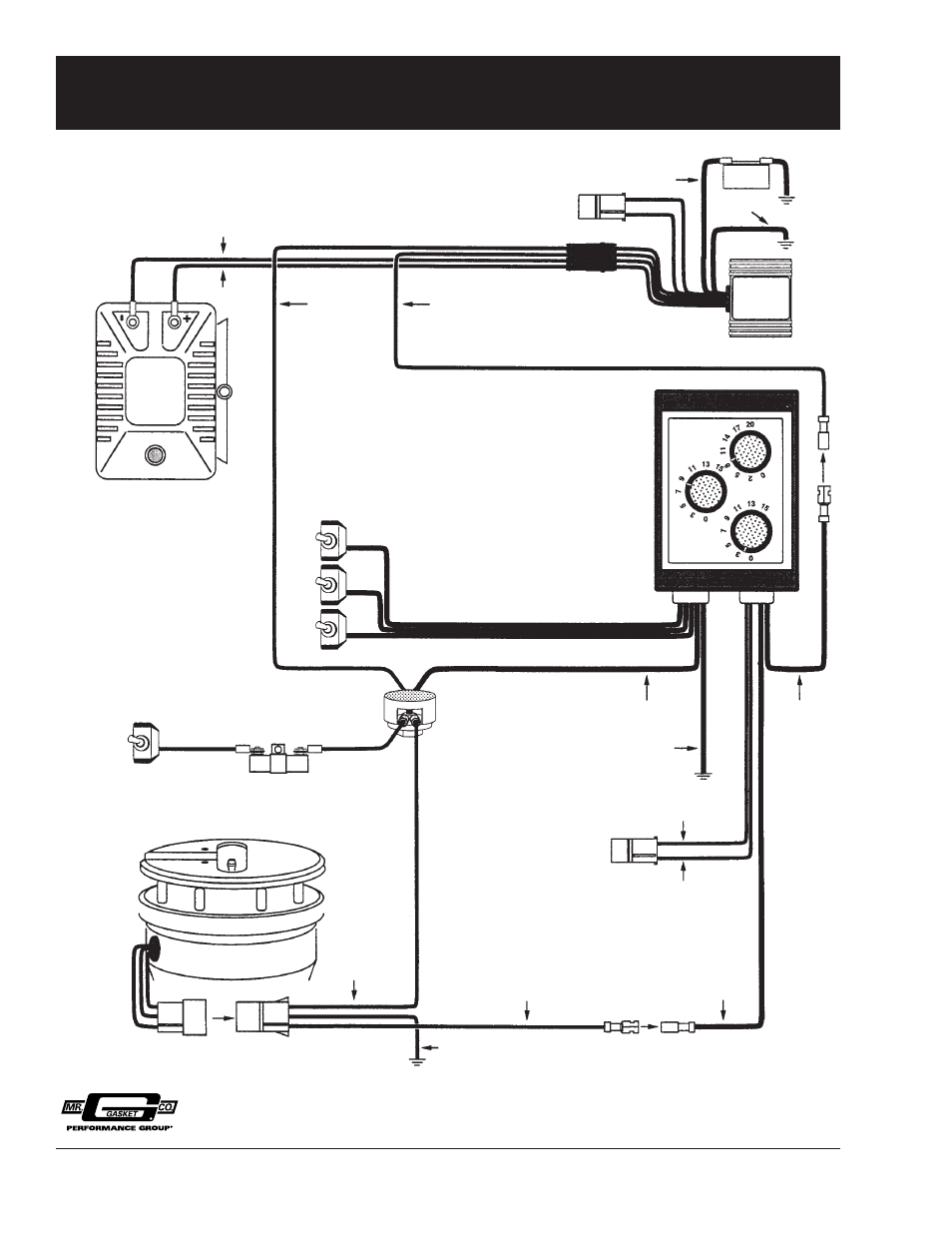

FIGURE 4: HYFIRE ® IA, IIA, IIIA, IV/A-C, CD/IS AND SD IGNITION CONTROL;
MALLORY UNILITE ® DISTRIBUTOR, MAGNETIC BREAKERLESS IGNITION DISTRIBUTOR OR
ELECTRONIC ADVANCE DISTRIBUTOR
