View with cap and rotor removed – Mallory Ignition Mallory BILLET HEI DISTRIBUTORS 75_Series User Manual
Page 3
3
MALLORY IGNITION
www.malloryracing.com
3

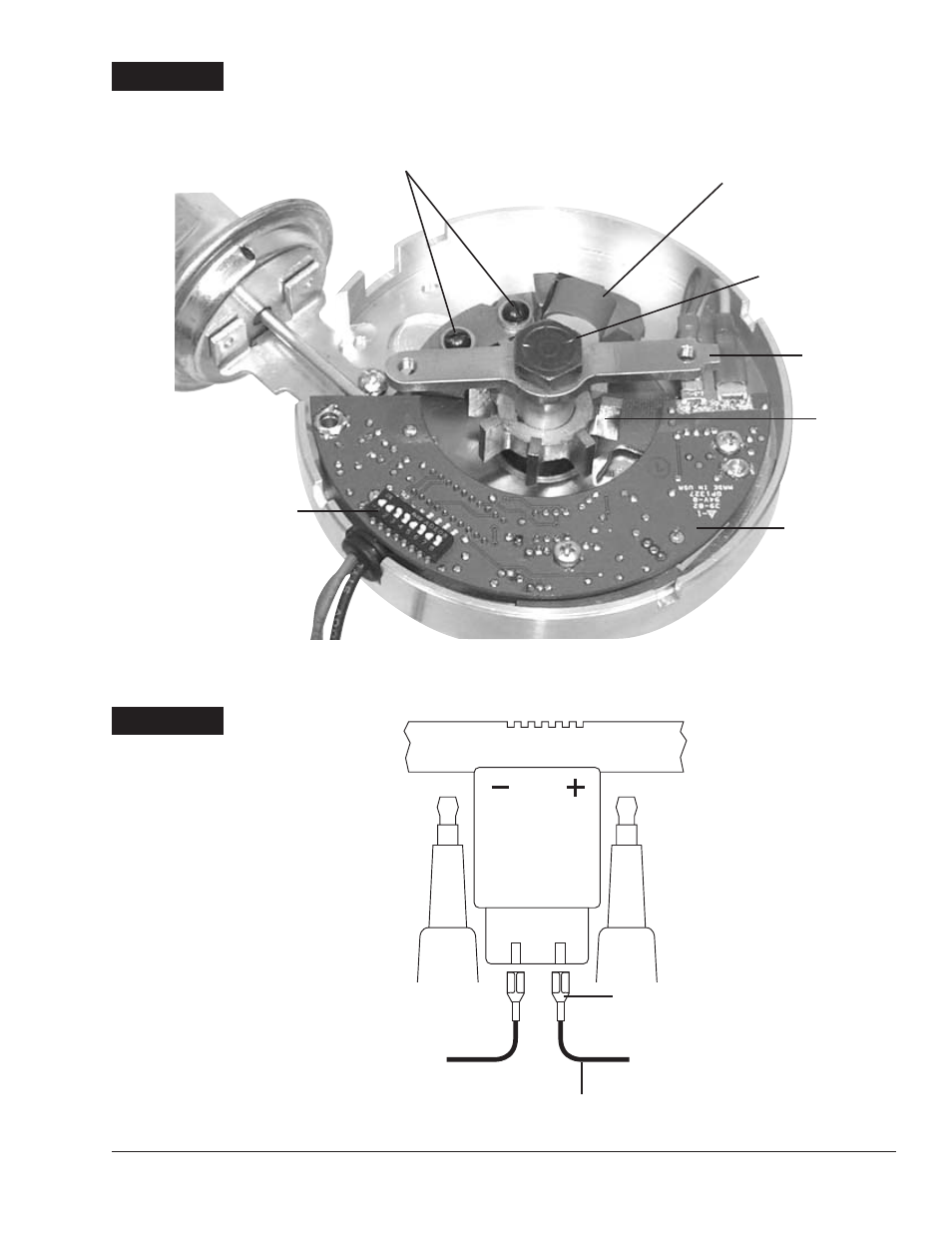

FIGURE 2
FIGURE 3
VIEW WITH CAP AND ROTOR REMOVED
NOTE: Distributor shown rotates counter-clockwise. Components in clockwise
rotation distributors (such as Chevy V8) are mounted in slightly different positions.
Pickup Screws
Rotor Flange
Rotor Flange Bolt
Reluctor
Mallory “HYFIRE”
HEI Module
Adjustable Rev Limiter
(5000 – 9500 RPM)
1/4 Female Tab Connector
To Ignition Switch 12 Volts
(no ballast or resistor wire)
To Tachometer
(if equipped)
14 Gauge or Larger
Pickup
(Gap between pickup
and reluctor should be
.015" – .030")
